F 50XT (5901270) - Ferris F50XT Series 48" Zero-Turn Mower, 24hp Briggs & Stratton Instrument Control Panel Group (Single Tank) Parts Diagram

F50XT Series 48" Zero-Turn Mower, 24hp Briggs & Stratton

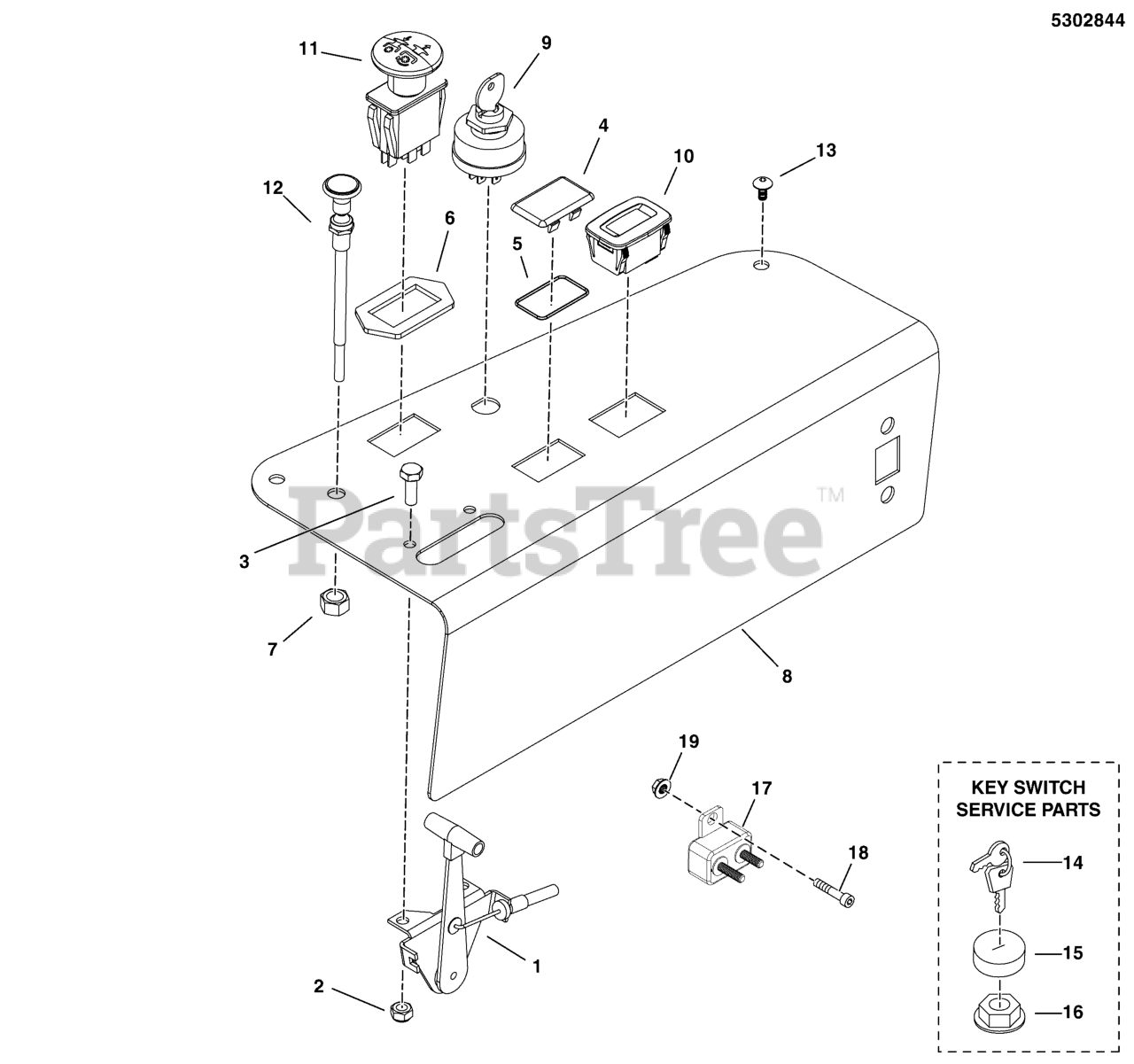

Instrument Control Panel Group (Single Tank) Parts Diagram

  • Title

1

Ferris 5020811

CABLE, THROTTLE CONTROL, 38
(Superseded to 5020811SM)

$49.99

$

Usually ships in 2-12 days

0

2

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

3

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

4

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

5

Ferris 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

7

Ferris 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5406624A

PLATE, CONTROL PANEL - BLACK
(Superseded to 5406624AYP)

$59.99

$

Usually ships in 2-12 days

0

9

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref # 15-17)

$33.99

$

In Stock, only 4 left!

0

10

Ferris 5102417

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

11

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

12

Ferris 5046501

CABLE, CHOKE CONTROL, 47
(Superseded to 5046501SM)

$55.99

$

In Stock, only 1 left!

0

13

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

14

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

15

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

16

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

17

Ferris 1665238

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB
(Superseded to 1665238SM)

Note: (S/N: 2016499707 & Above)

$14.99

$

In Stock, Qty 20+

0

18

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

Note: (S/N: 2016499707 & Above)

$2.49

$

In Stock, Qty 15

0

19

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

Note: (S/N: 2016499707 & Above)

$4.49

$

Usually ships in 2-12 days

0
