F 50XT (5901270) - Ferris F50XT Series 48" Zero-Turn Mower, 24hp Briggs & Stratton Hydraulic Group Parts Diagram

F50XT Series 48" Zero-Turn Mower, 24hp Briggs & Stratton

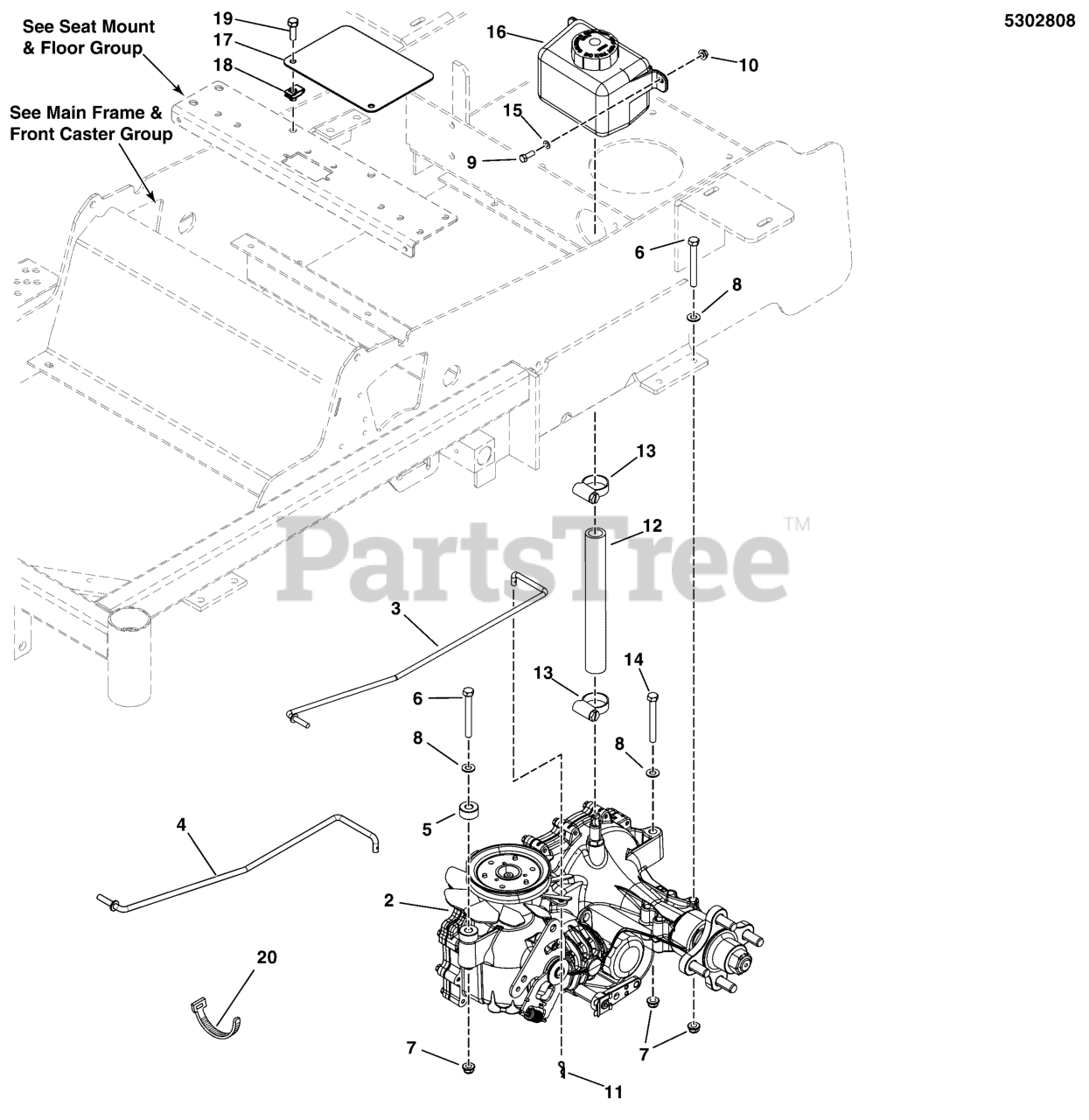

Hydraulic Group Parts Diagram

  • Title
1

Ferris 5101024

TRANSAXLE, ZT3100, RH, ZL-GMEF-3L7B-1PLX
(Superseded to 84006965)

Note: (Not illustrated)

$1262.99

$

Usually ships in 2-12 days

0

2

Ferris 5101025

TRANSAXLE, ZT3100, LH, ZL-KMEF-3L7C-1PLX
(Superseded to 84006966)

$1262.99

$

Usually ships in 2-12 days

0

3

Ferris 5101138

ROD, DUMP CONTROL, LH
(Superseded to 5101138YP)

$13.99

$

Usually ships in 2-12 days

0

4

Ferris 5101139

ROD, DUMP CONTROL, RH
(Superseded to 5101139YP)

$15.99

$

Usually ships in 2-12 days

0

5

Ferris 5047408

SPACER, .39 X .75 X .50, CZ

$

$

Currently unavailable

6

Ferris 5025011X22

BOLT, 5/16-18 X 2-3/4, GD 5, YZ
(Superseded to 5025011X22YP)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

11

Ferris 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5050857X2P5

HOSE, 1/2" PUSH-ON, 2.5" LONG
(Superseded to 5050857X2P5YP)

$6.99

$

In Stock, only 2 left!

0

13

Ferris 5025474

CLAMP, HOSE, .75 FREE DIA.
(Superseded to 5025474SM)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

15

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5100473

RESERVOIR, HYDRO OIL, 350 ML
(Superseded to 5100473SM)

$40.99

$

Usually ships in 2-12 days

0

17

Ferris 5407997A

PLATE, BELT GUARD - BLK

$6.99

$

Usually ships in 2-12 days

0

18

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

19

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

20

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available
