F 50XT (5901270) - Ferris F50XT Series 48" Zero-Turn Mower, 24hp Briggs & Stratton Fuel Tank Mount & Supply Group (Single Tank) Parts Diagram

F50XT Series 48" Zero-Turn Mower, 24hp Briggs & Stratton

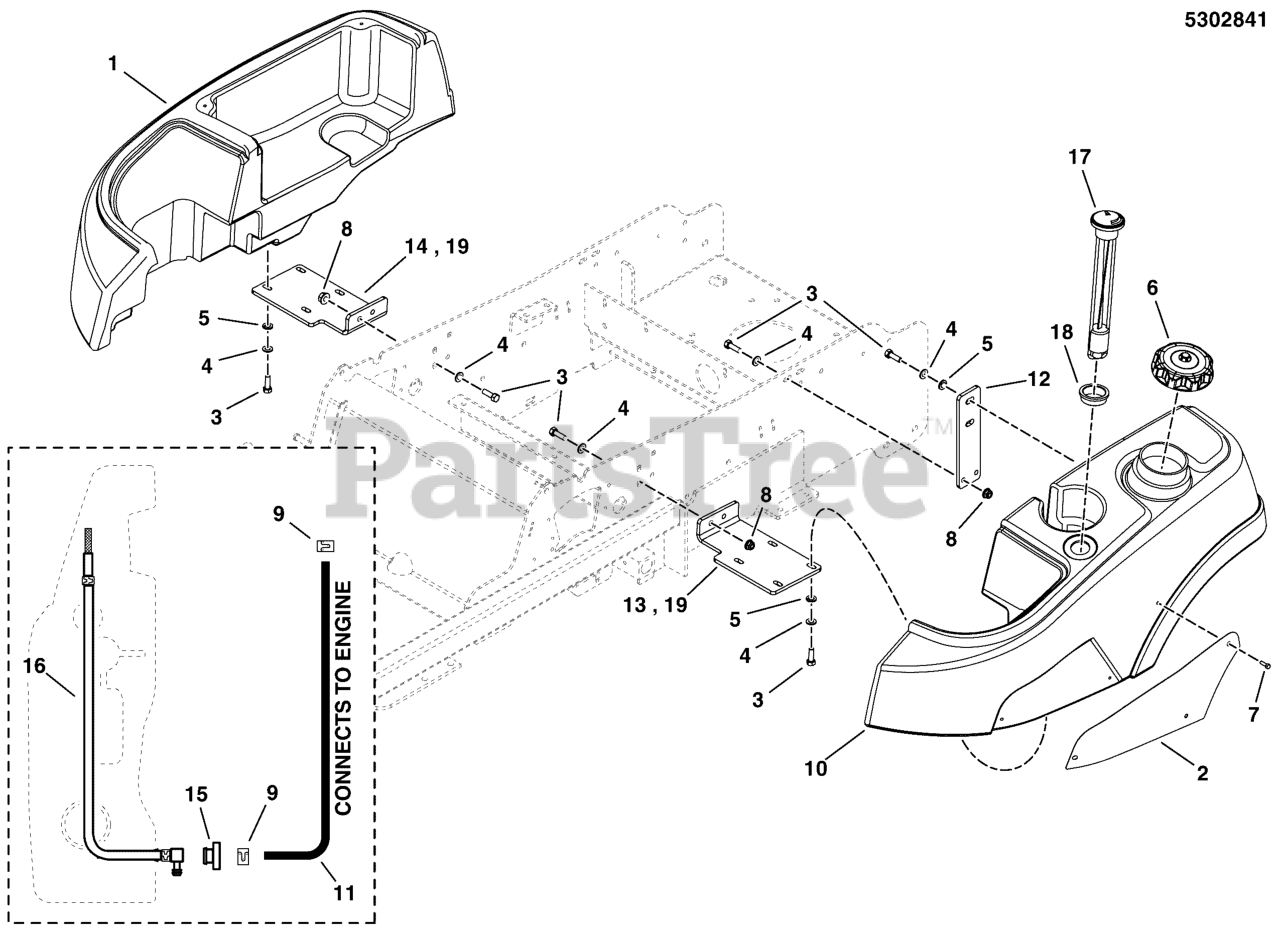

Fuel Tank Mount & Supply Group (Single Tank) Parts Diagram

  • Title
1

Ferris 5048752

TANK, FENDER, RH
(Superseded to 5048752SM)

$279.99

$

Usually ships in 2-12 days

0

2

Ferris 5048909B

PLATE,FUEL TANK BADGE

$

$

Currently unavailable

3

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

4

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

6

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

7

Ferris 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

8

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

10

Ferris 5103167

TANK, FUEL, LH
(Superseded to 5103167YP)

$557.99

$

Usually ships in 2-12 days

0

11

Ferris 5050831X20

HOSE, 1/4" FUEL, 20.00"
(Superseded to 5050831X20YP)

$7.99

$

Usually ships in 2-12 days

0

12

Ferris 5406626A

MOUNT, FUEL TANK, REAR - BLK
(Superseded to 5406626AYP)

$11.99

$

Usually ships in 2-12 days

0

13

Ferris 5406627A

MOUNT, FUEL TANK, FRONT - BLK

Note: (S/N: 2016656401 & Below)

$

$

Currently unavailable

14

Ferris 5406628A

MOUNT FENDER, FRONT - BLK

Note: (S/N: 2016656401 & Below)

$

$

Currently unavailable

15

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

16

Ferris 5101144

PICKUP TUBE ASM, FUEL TANK

$33.99

$

Usually ships in 2-12 days

0

17

Ferris 5023197

GAUGE, FUEL LEVEL

$56.99

$

Usually ships in 2-12 days

0

18

Ferris 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 2 left!

0

19

Ferris 5411923A

MOUNT, FENDER, FRONT - BLK

Note: (S/N: 2016656402 & Above)

$

$

Not available
