F 50XT (5901239) - Ferris F50XT Series 44" Zero-Turn Mower, 27hp Briggs & Stratton Parking Brake Group Parts Diagram

F50XT Series 44" Zero-Turn Mower, 27hp Briggs & Stratton

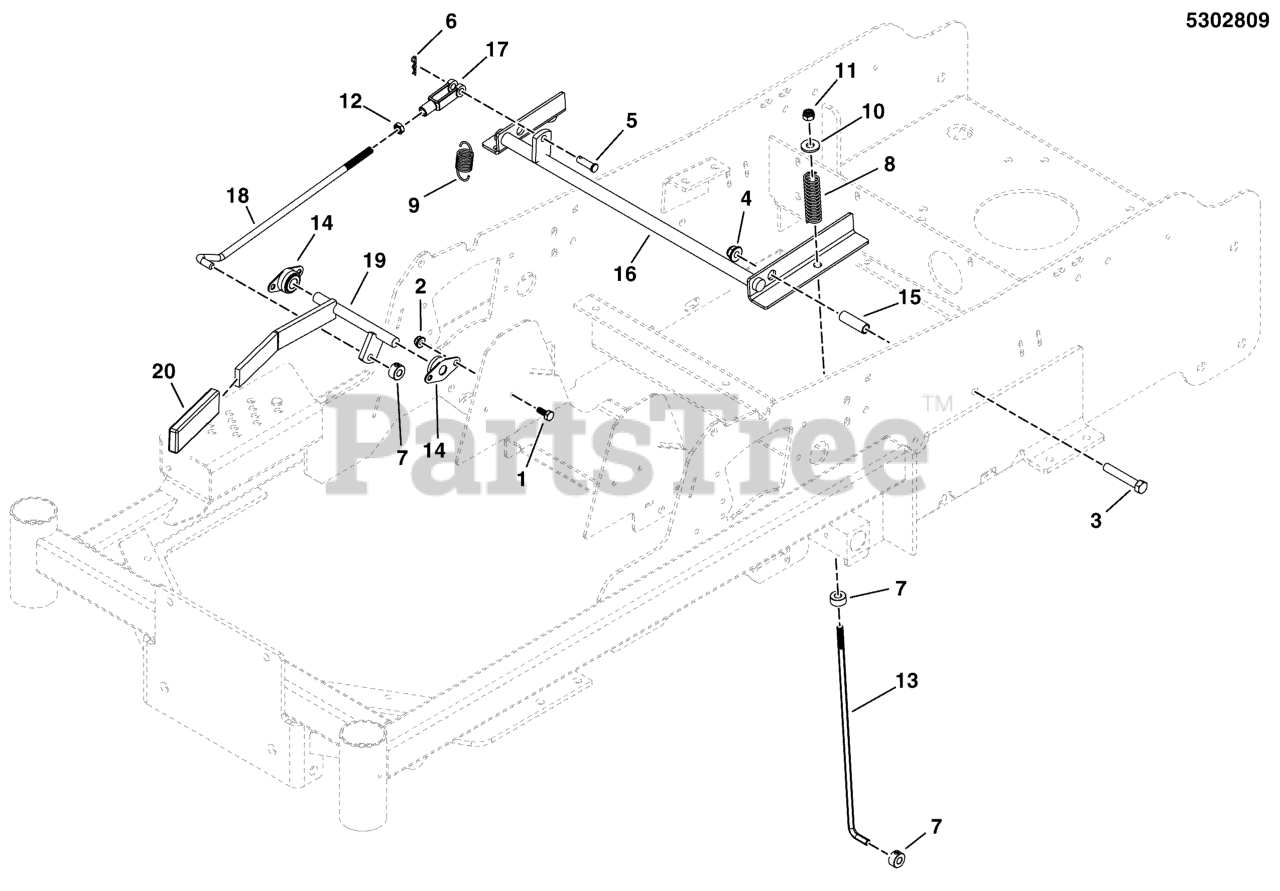

Parking Brake Group Parts Diagram

  • Title
1

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

2

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

3

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5025213X8

PIN, CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

6

Ferris 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

7

Ferris 5020047

COLLAR, 5/16" SET
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

8

Ferris 5021102

SPRING, COMPRESSION
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

9

Ferris 5010213

SPRING; CLUTCH HANDLE
(Superseded to 5010213YP)

$14.99

$

Usually ships in 2-12 days

0

10

Ferris 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

12

Ferris 5023216

NUT, 5/16-24 JAM
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

13

Ferris 5101058

ROD, BRAKE CTRL, LOWER - CONZ
(Superseded to 5101058SM)

$5.49

$

Usually ships in 2-12 days

0

14

Ferris 5101123

BEARING, 1/2" FLANGED
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5044992

SPACER, .38 X .50 X 1.56
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

16

Ferris 5402914A

WELD, BRAKE SHAFT - BLK
(Superseded to 5402914AYP)

$107.99

$

Usually ships in 2-12 days

0

17

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

18

Ferris 5101116

ROD, PULLER ROD
(Superseded to 5101116SM)

$16.99

$

Usually ships in 2-12 days

0

19

Ferris 5406620A

WELD, BRAKE SHAFT, HANDLE - BLK
(Superseded to 5406620AYP)

$51.99

$

Usually ships in 2-12 days

0

20

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0
