F 50XT (5901239) - Ferris F50XT Series 44" Zero-Turn Mower, 27hp Briggs & Stratton 44" Mower Deck - Pulleys, Belt, & Idler Arm Parts Diagram

F50XT Series 44" Zero-Turn Mower, 27hp Briggs & Stratton

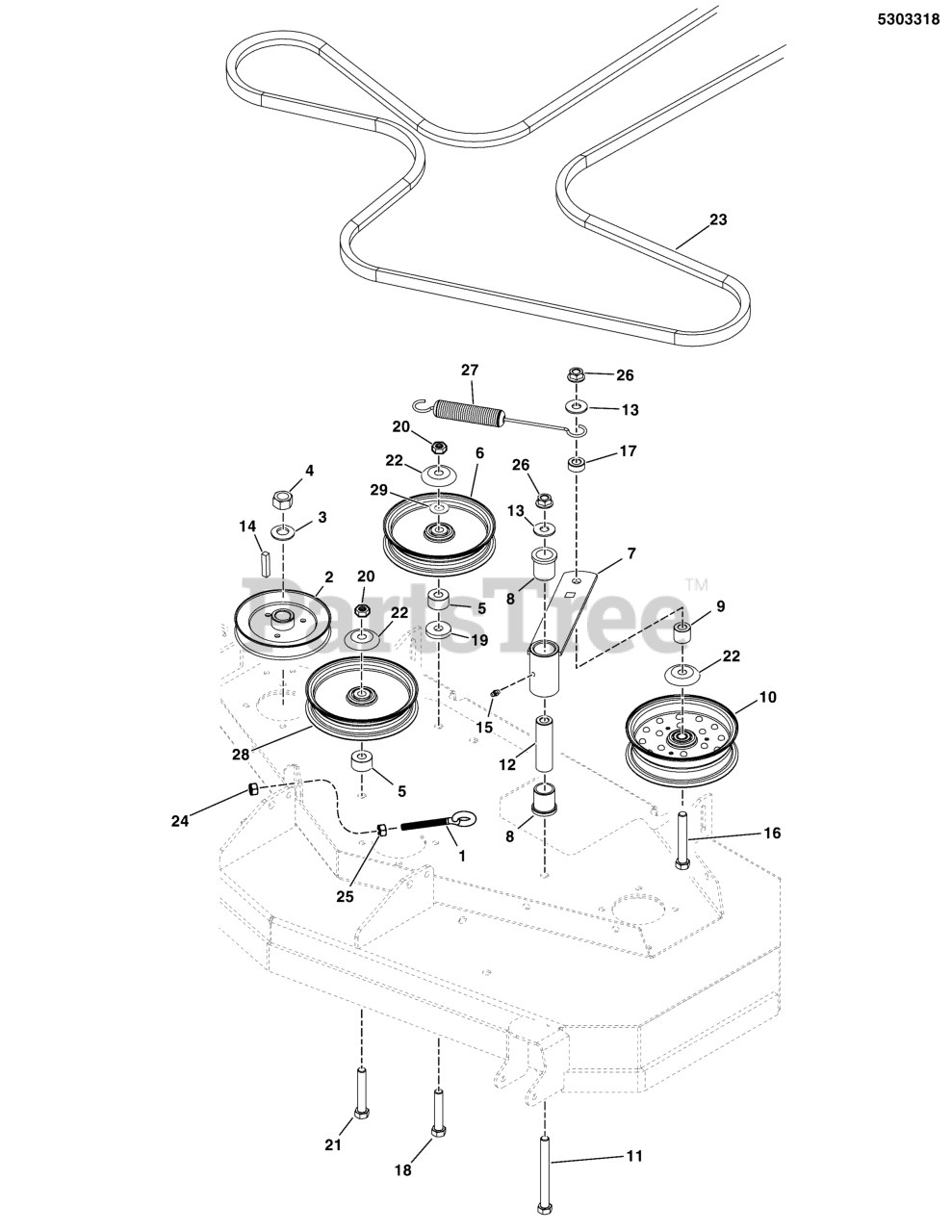

44" Mower Deck - Pulleys, Belt, & Idler Arm Parts Diagram

  • Title

1

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

2

Ferris 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

$67.99

$

In Stock, Qty 17

0

3

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

5

Ferris 5047142

SPACER, .52 X 1.25 X .70, CZ
(Superseded to 5047142SM)

$8.99

$

In Stock, Qty 8

0

6

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

7

Ferris 5407039A

WELD, IDLER ARM - BLK
(Superseded to 5407039AYP)

$62.99

$

Usually ships in 2-12 days

0

8

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

9

Ferris 5044673

SPACER, .52 X 1.00 X .88, CZ
(Superseded to 5044673SM)

$8.99

$

In Stock, only 1 left!

0

10

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

11

Ferris 5025017X40

BOLT-1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

12

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

13

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

14

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

15

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

16

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

17

Ferris 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

18

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

19

Ferris 5044913

WASHER, .53 X 1.50 X .25
(Superseded to 5044913SM)

$6.99

$

In Stock, Qty 12

0

20

Ferris 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 11

0

21

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 8

0

22

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

23

Ferris 5103839

BELT, B-SEC, 136" EL, ARAMID, WRPD
(Superseded to 5103839FS)

$78.99

$

Usually ships in 2-12 days

0

24

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

25

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 13

0

26

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

27

Ferris 5023340

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

28

Ferris 5101794

PULLEY, IDLER, 5" OD, 1"FACE, 5.75 FL
(Superseded to 5101794YP)

$57.99

$

In Stock, only 2 left!

0

29

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0
