F 50XT (5900978) - Ferris F50XT Series 48" Zero-Turn Mower, 27hp Briggs & Stratton 48" Mower Deck - Housing, Covers & Spindles Parts Diagram

F50XT Series 48" Zero-Turn Mower, 27hp Briggs & Stratton

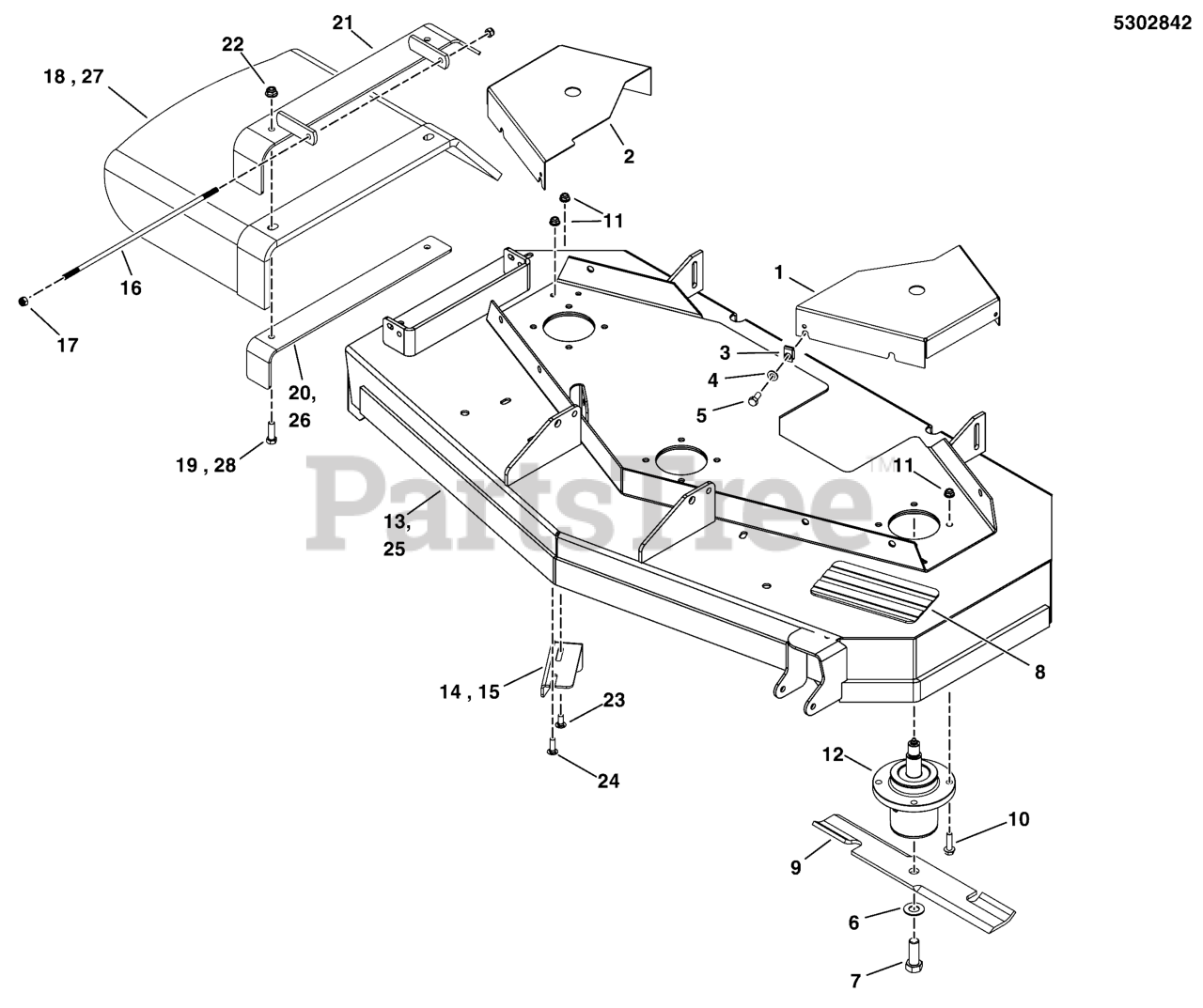

48" Mower Deck - Housing, Covers & Spindles Parts Diagram

  • Title

1

Ferris 5403531B

GUARD, 48" MOWER DECK, LH

$

$

Currently unavailable

2

Ferris 5403532B

GUARD, 48" MOWER DECK, RH

$

$

Currently unavailable

3

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

4

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

6

Ferris 5025159

WASHER, 5/8 USS

$

$

Currently unavailable

7

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GR8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

9

Ferris 5020843

BLADE, 16.25"
(Superseded to 5020843ASM)

$24.99

$

In Stock, Qty 20+

0

10

Ferris 5023156

BOLT, 5/16-18 X 1-1/4" FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

13

Ferris 5600572

DECK SHELL W/ DECALS, F50XT - 48"

Note: (S/N: 2016167622 & Below)

$

$

Currently unavailable

14

Ferris 5401271A

WELD, DISCHARGE BAFFLE, 48" - BLK

Note: (S/N: 2016167622 & Below)

$

$

Currently unavailable

15

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

Note: (S/N: 2016167623 & Above)

$11.99

$

Usually ships in 2-12 days

0

16

Ferris 5042555

ROD, BRAKE LINKAGE
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

17

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

18

Ferris 5402404

CHUTE, RUBBER, BENT
(Superseded to 5402404FS)

Note: (S/N: 2017094785 & Below)

$148.99

$

Usually ships in 2-12 days

0

19

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017094785 & Below)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5402362A

SUPPORT, DISCHARGE CHUTE, 44/48/52 - BLK
(Superseded to 5402362AFS)

Note: (S/N: 2017094785 & Below)

$35.99

$

Usually ships in 2-12 days

0

21

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

In Stock, only 1 left!

0

22

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

23

Ferris 5025145X6

BOLT, 5/16"-18 CARRIAGE, 3/4"
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

24

Ferris 5025145X8

BOLT, 5/16"-18 CARRIAGE, 1"
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

25

Ferris 5600629

DECK SHELL W/ DECALS, F50XT - 48

Note: (S/N: 2016167623 & Above)

$1966.99

$

Usually ships in 2-12 days

0

26

Ferris 5413401A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5413401AA)

Note: (S/N: 2017094786 & Above)

$32.99

$

Usually ships in 2-12 days

0

27

Ferris 5413498

CHUTE, RUBBER DISCHARGE (5104441)

Note: (S/N: 2017094786 & Above)

$165.99

$

Usually ships in 2-12 days

0

28

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017094786 & Above)

$3.99

$

Usually ships in 2-12 days

0
