F 50XT (5900571) - Ferris F50XT Series 36" Zero-Turn Mower, 19hp Kawasaki Fuel Tank Mount & Supply Group (Double Tank) Parts Diagram

F50XT Series 36" Zero-Turn Mower, 19hp Kawasaki

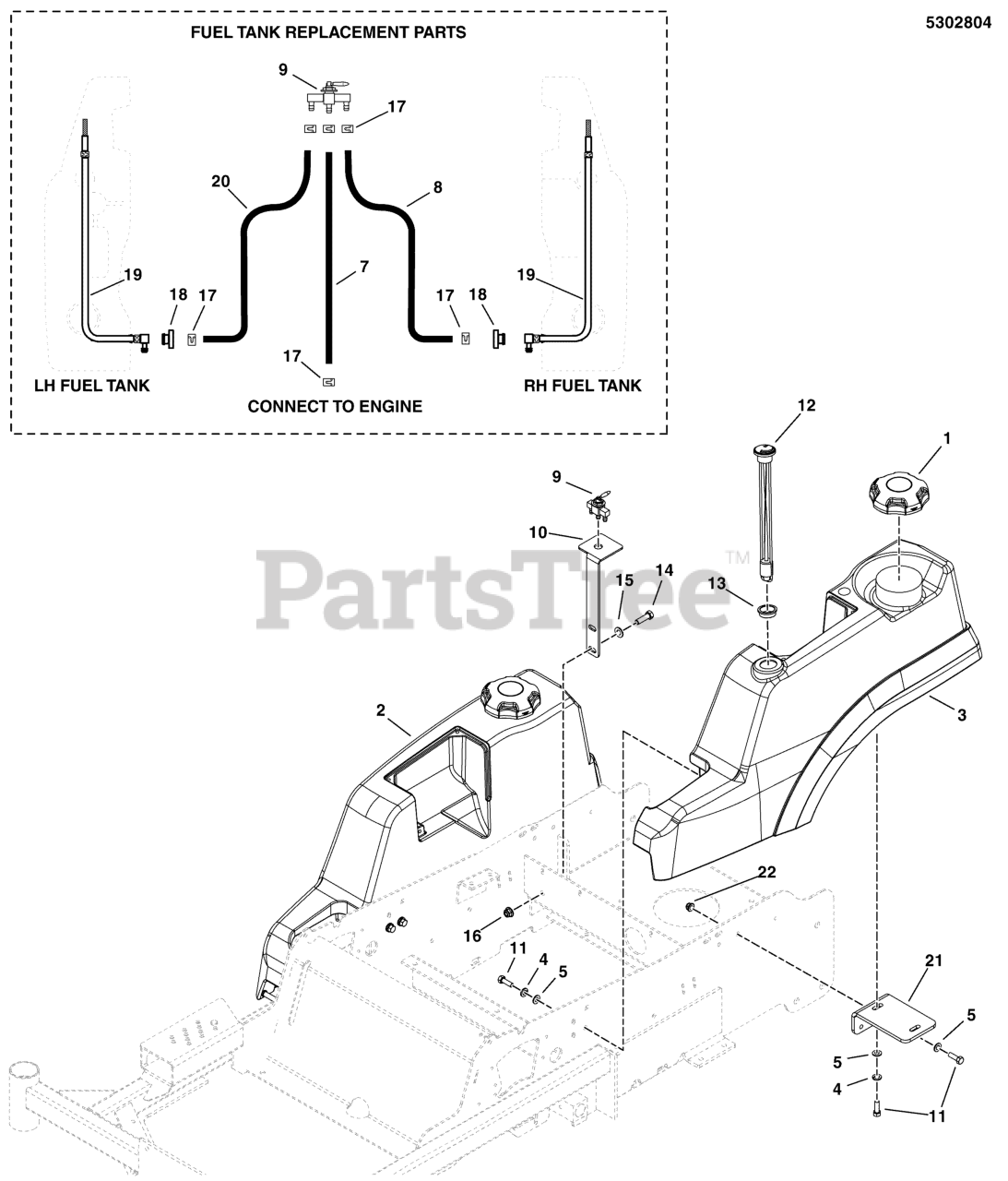

Fuel Tank Mount & Supply Group (Double Tank) Parts Diagram

  • Title

1

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

2

Ferris 5103170

TANK, FUEL, SNAP & SNP PRO - RH

$379.99

$

Usually ships in 2-12 days

0

3

Ferris 5103169

TANK, FUEL, SNAP & SNP PRO - LH

$379.99

$

Usually ships in 2-12 days

0

4

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

Note: (Not Shown - For RH Fuel Hose)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5050831X16

HOSE, FUEL, 1/4 IN, LW PRMTN, 16" LONG
(Superseded to 5050831X16SM)

$8.49

$

Usually ships in 2-12 days

0

8

Ferris 5050831X24

HOSE, FUEL, 1/4 IN, LW PRMTN, 24" LONG
(Superseded to 5050831X24YP)

$8.99

$

Usually ships in 2-12 days

0

9

Ferris 5023358

VALVE, FUEL, STR. OUTLET
(Superseded to 5023358SM)

$48.99

$

In Stock, Qty 9

0

10

Ferris 5401108A

FUEL, VALVE BRACKET - BLK
(Superseded to 5401108AFS)

$11.99

$

Usually ships in 2-12 days

0

11

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

12

Ferris 5101378

FUEL GAUGE, 10" (SV)

$46.99

$

Usually ships in 2-12 days

0

13

Ferris 5022917X1

GROMMET, FUEL GAUGE (SV)
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 2 left!

0

14

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

18

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

19

Ferris 5101144

PICKUP TUBE ASSEMBLY, FUEL LINE (SV)

$33.99

$

Usually ships in 2-12 days

0

20

Ferris 5050831X26

HOSE, FUEL, 1/4 IN, LW PRMTN, 26" LONG
(Superseded to 5050831X26YP)

$14.99

$

Usually ships in 2-12 days

0

21

Ferris 5408039A

MOUNT, TANK, REAR - BLK

$31.99

$

Usually ships in 2-12 days

0

22

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
