F 50XT (5900518) - Ferris F50XT Series 36" Zero-Turn Mower, 20hp Kawasaki Instrument Control Panel Group (Double Tank) - S/N: 2016499706 & Below Parts Diagram

F50XT Series 36" Zero-Turn Mower, 20hp Kawasaki

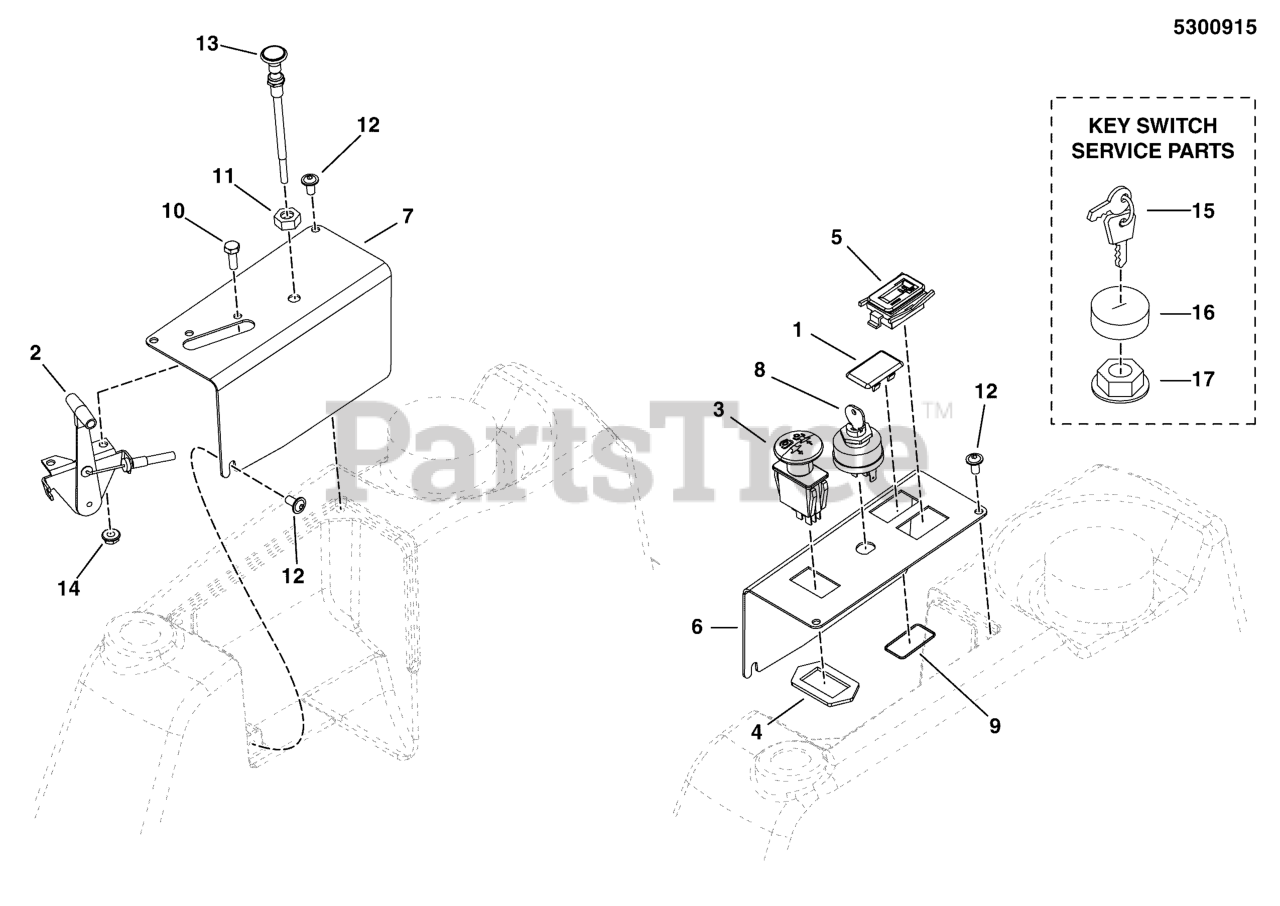

Instrument Control Panel Group (Double Tank) - S/N: 2016499706 & Below Parts Diagram

  • Title
1

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

2

Ferris 5020811

CABLE, THROTTLE CONTROL, 38
(Superseded to 5020811SM)

$49.99

$

Usually ships in 2-12 days

0

3

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

4

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

5

HOUR METER, ASSEMBLE

Note: (S/N: 2015551938 & Above)

$

$

Not available

5

Ferris 5102417

HOUR METER

Note: (S/N: 2015551937 & Below)

$64.99

$

Usually ships in 2-12 days

0

6

Ferris 5402918A

CONTROL PANEL, LEFT - BLK

$17.99

$

Usually ships in 2-12 days

0

7

Ferris 5403274A

CONTROL PANEL, RIGHT - BLK

$16.99

$

Usually ships in 2-12 days

0

8

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref # 15-17)

$33.99

$

In Stock, Qty 7

0

9

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

10

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

11

Ferris 5025309

NUT, 3/8-24 Hex Jam
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

12

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

13

Ferris 5047143

CABLE, CHOKE CONTROL, 39.5"
(Superseded to 5047143SM)

$56.99

$

Usually ships in 2-12 days

0

14

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

15

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

16

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

17

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0
