F 50XT (5900518) - Ferris F50XT Series 36" Zero-Turn Mower, 20hp Kawasaki 36" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

F50XT Series 36" Zero-Turn Mower, 20hp Kawasaki

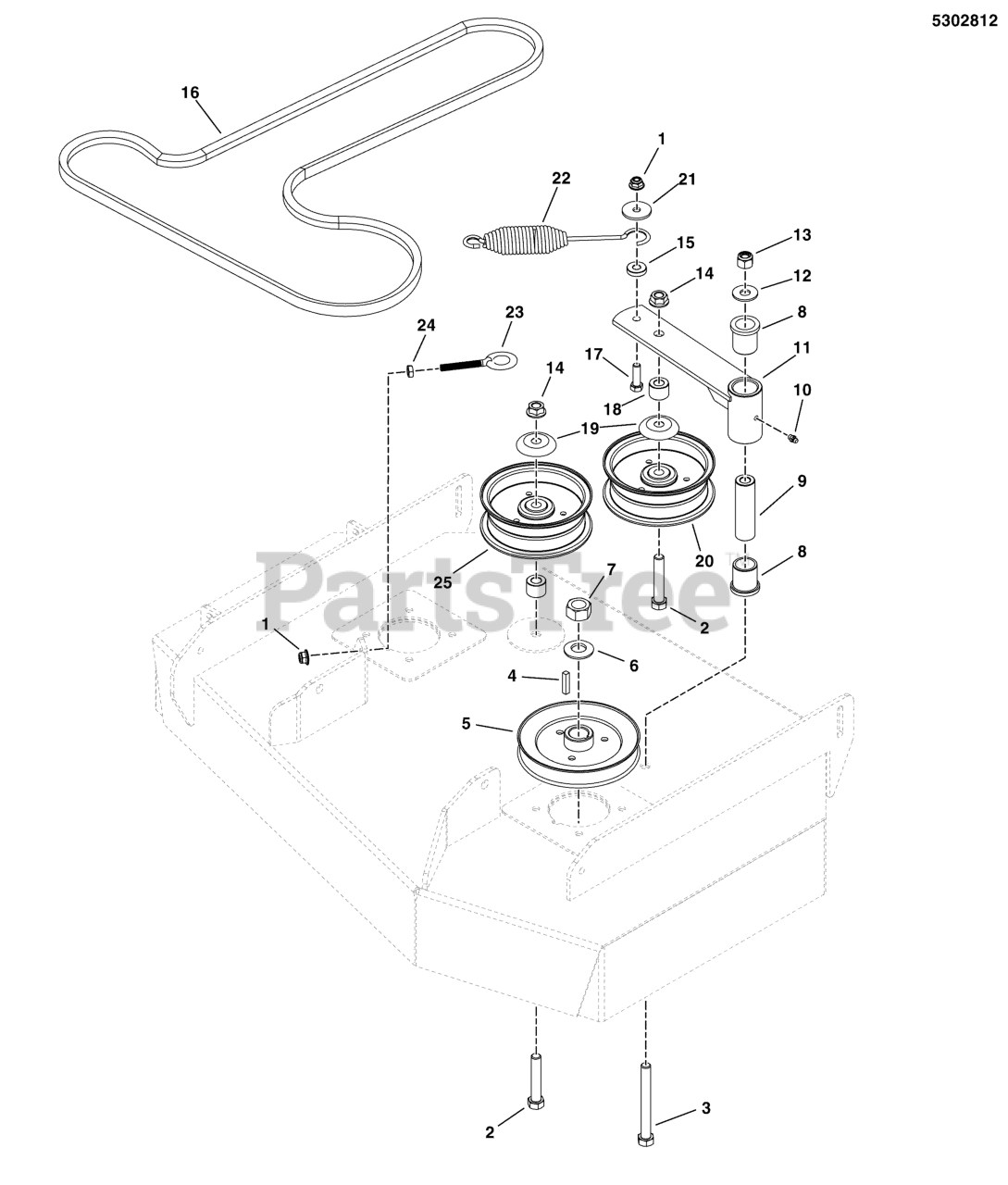

36" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

1

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

2

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

3

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 1 left!

0

4

Ferris 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

5

Ferris 5023178

PULLEY-6.122 OD. X .98 BORE
(Superseded to 5023178SM)

$71.99

$

In Stock, only 2 left!

0

6

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

9

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

10

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

11

Ferris 5404298A

WELD, IDLER ARM, SHORT - BLK
(Superseded to 5404298AFS)

$44.99

$

Usually ships in 2-12 days

0

12

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

15

Ferris 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

16

Ferris 5021650

BELT, #7-5335
(Superseded to 5021650FS)

$87.99

$

In Stock, only 1 left!

0

17

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

18

Ferris 5045178

SPACER, .52 X 1.00 X .75
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0

19

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

20

Ferris 5101794

PULLEY, IDLER, 5" OD, 1" FACE, 5.75 FLANGE
(Superseded to 5101794YP)

$57.99

$

In Stock, only 2 left!

0

21

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5100632

SPRING, EXTENSION, SWIVEL. LONG HOOK
(Superseded to 5100632YP)

$38.99

$

Usually ships in 2-12 days

0

23

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

24

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 13

0

25

Ferris 5101794

PULLEY, IDLER, 5" OD, 1"FACE, 5.75 FL
(Superseded to 5101794YP)

$57.99

$

In Stock, only 2 left!

0
