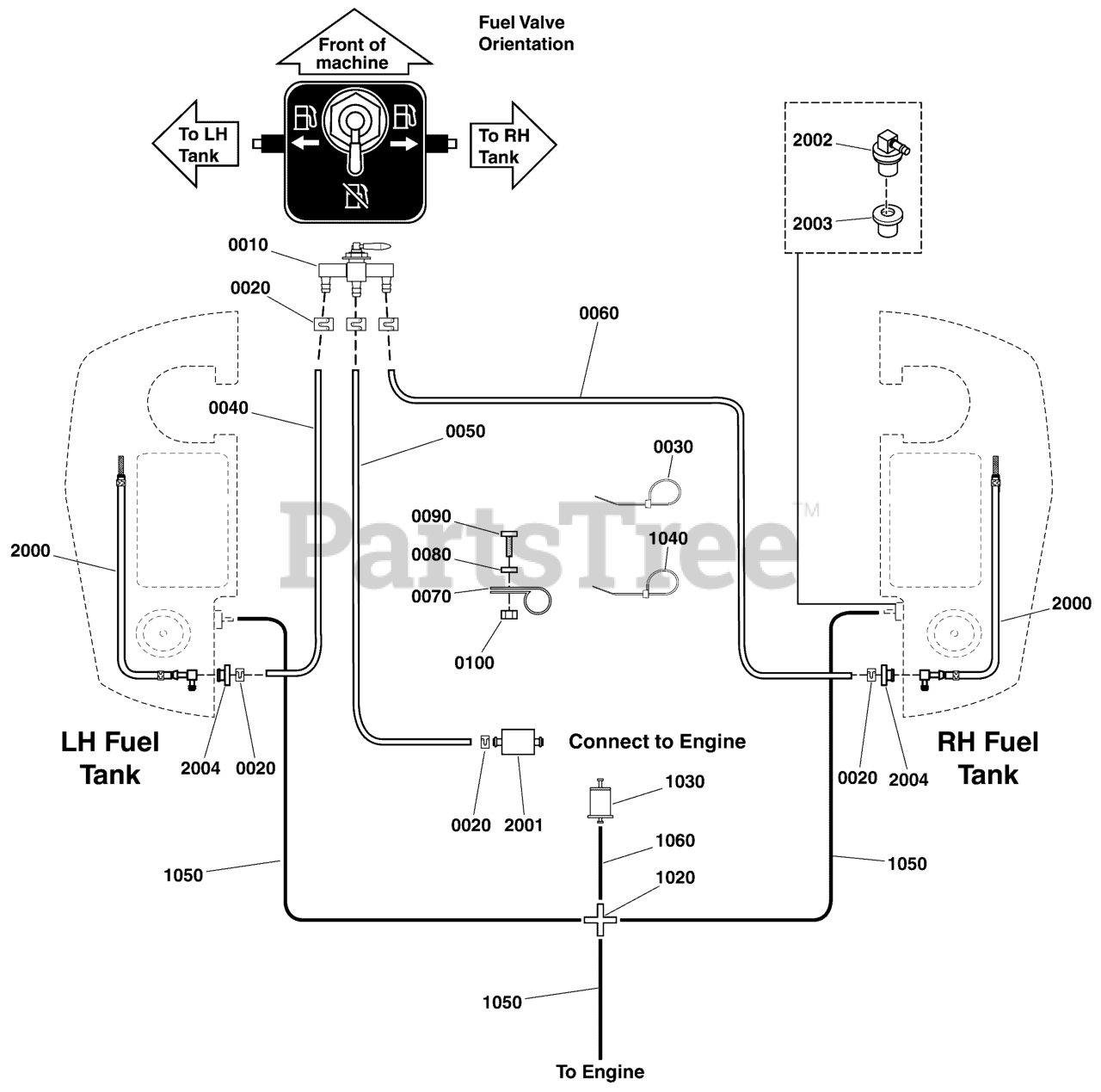

F 320Z (5901713) - Ferris F320Z Series 72" Zero-Turn Mower, 30hp Kawasaki Fuel Supply Hose, Tank Replacement Parts, and EVAP Group Parts Diagram

F320Z Series 72" Zero-Turn Mower, 30hp Kawasaki

Fuel Supply Hose, Tank Replacement Parts, and EVAP Group Parts Diagram

  • Title
0010

Ferris 5023358

VALVE, FUEL STRAIGHT, OUTLET
(Superseded to 5023358SM)

$48.99

$

In Stock, Qty 9

0

0020

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

0030

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

0040

Ferris 5050831X14P5

HOSE, 1/4" FUEL, 14.50"
(Superseded to 5050831X14P5FS)

$12.99

$

Usually ships in 2-12 days

0

0050

Ferris 5050831X42

HOSE, FUEL, 1/4 IN, LW PRMTN X 42

$

$

Not available

0060

Ferris 5050831X49

1/4" Fuel Line, 49" Long
(Superseded to 5050831X49YP)

$20.99

$

In Stock, only 2 left!

0

0070

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0100

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

1020

Ferris 5105394

FITTING, BARBED CROSS, 3/16" BLK NYLON
(Superseded to 5105394YP)

$9.99

$

Usually ships in 2-12 days

0

1030

Ferris 80025019

FILTER, FUEL
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

1040

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

1050

Ferris 7700552X33P5

HOSE, VAPOR, 5MM ID, 33.50 LG
(Superseded to 7700552X33P5YP)

$9.99

$

Usually ships in 2-12 days

0

1060

Ferris 7700552X2

HOSE, VAPOR, 5MM ID, 2.00 LG
(Superseded to 7700552X2YP)

$4.49

$

Usually ships in 2-12 days

0

2000

Ferris 5101144

PICKUP TUBE ASSEMBLY, FUEL LINE (SV)

Note: (SV - One per fuel tank)

$33.99

$

Usually ships in 2-12 days

0

2001

Ferris 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$12.99

$

In Stock, Qty 15

0

2002

Ferris 770046

REMOTE VENT ASSEMBLY

Note: (SV - One per fuel tank)

$16.99

$

In Stock, only 1 left!

0

2003

Ferris 209043

GROMMET (SV)
(Superseded to 799624)

Note: (SV - One per fuel tank)

$8.99

$

In Stock, Qty 16

0

2004

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

Note: (SV - One per fuel tank)

$11.99

$

In Stock, only 2 left!

0
