F 320Z (5901713) - Ferris F320Z Series 72" Zero-Turn Mower, 30hp Kawasaki Engine & PTO Group - Kawasaki FX850V EFI Parts Diagram

F320Z Series 72" Zero-Turn Mower, 30hp Kawasaki

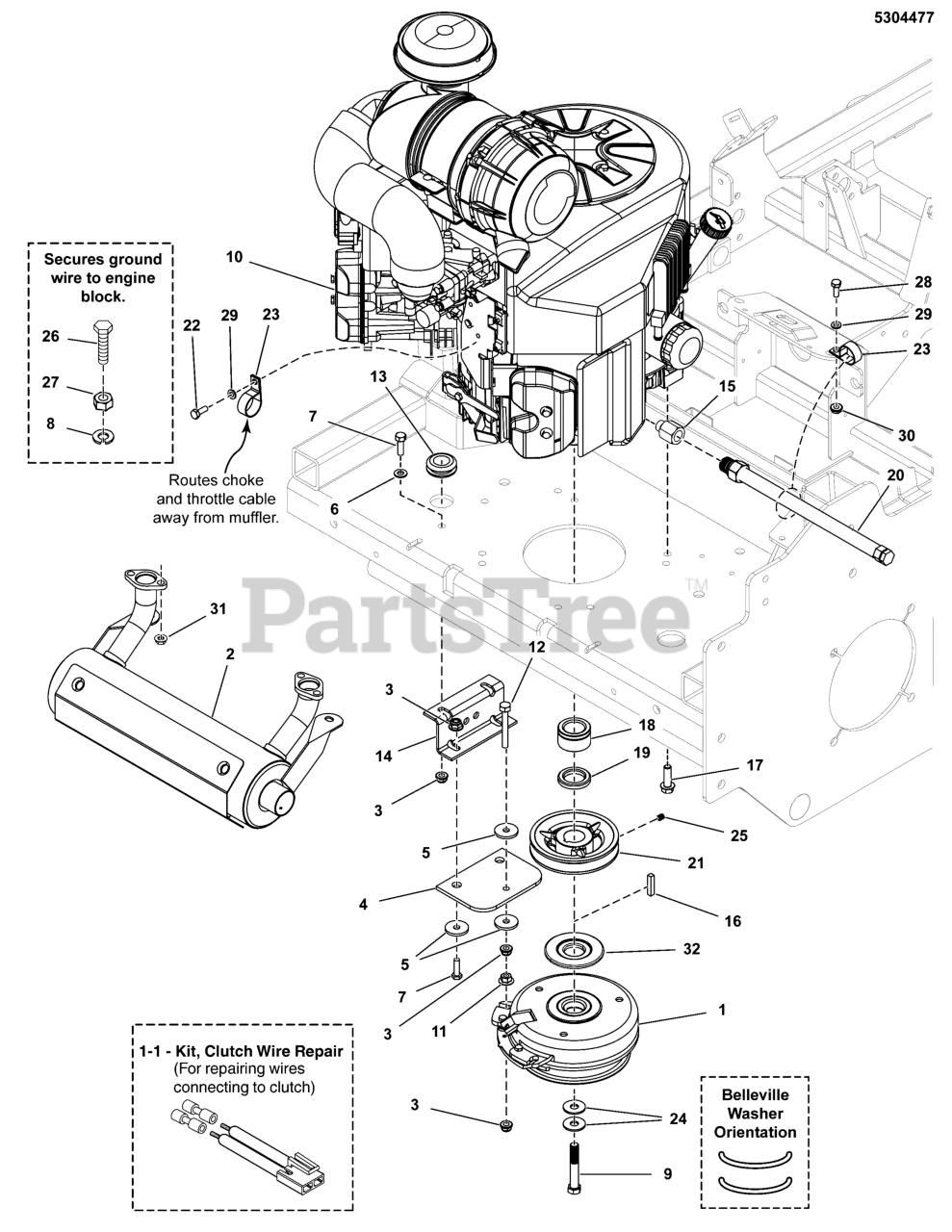

Engine & PTO Group - Kawasaki FX850V EFI Parts Diagram

  • Title

1

CLUTCH, If replacing, use 5108850 and 5108851

Note: (S/N: 4001550166 and below)

$

$

Not available

1

Ferris 5108850

CLUTCH, 250 FT-LBS, WATER GUARD
(Superseded to 84006412)

Note: (S/N: 4001550167 and above)

$468.99

$

Usually ships in 2-12 days

0

1-1

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

$66.99

$

Usually ships in 2-12 days

0

2

Ferris 5105069

MUFFLER, 27HP KAWASAKI, 5" CAN
(Superseded to 5105069YP)

$287.99

$

Usually ships in 2-12 days

0

3

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

5

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

6

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

8

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

9

Ferris 5103300

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4, GD 8
(Superseded to 5103300YP)

Note: (Torque crankshaft bolt to 65 ft. lbs. (88 Nm))

$5.99

$

In Stock, only 1 left!

0

10

ENGINE, KAWASAKI, EFI (FX850 -AS42-S)

Note: (Refer to Note: *)

$

$

Not available

11

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

12

Ferris 5025055X20

BOLT, 5/16-18 X 2-1/2 GD5 TFL, CZ
(Superseded to 5025055X20FS)

$7.49

$

Usually ships in 2-12 days

0

13

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

14

Ferris 5414825A

ANCHOR, CLUTCH - BLK

$

$

Not available

15

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

16

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

17

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

18

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

19

Ferris 5046904

SPACER, 1.13 x 1.75 x .25
(Superseded to 5046904YP)

$17.99

$

In Stock, only 1 left!

0

20

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

21

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

22

Ferris 5023215

CAPSCREW, HEX HEAD M6-1.0 X 14MM
(Superseded to 5023215SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0

25

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

Note: (SV)

$3.49

$

In Stock, Qty 12

0

26

Ferris 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

27

Ferris 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

29

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

30

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

31

Ferris 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5108851

WATER GUARD, WARNER C 250 FT-LBS CLUTCH
(Superseded to 84006413)

Note: (S/N: 4001550167 and above)

$13.99

$

Usually ships in 2-12 days

0
