F 320Z (5901712) - Ferris F320Z Series 72" Zero-Turn Mower, 32hp Briggs & Stratton Seat Mount and Floor Group S/N: 4000875837 and Above Parts Diagram

F320Z Series 72" Zero-Turn Mower, 32hp Briggs & Stratton

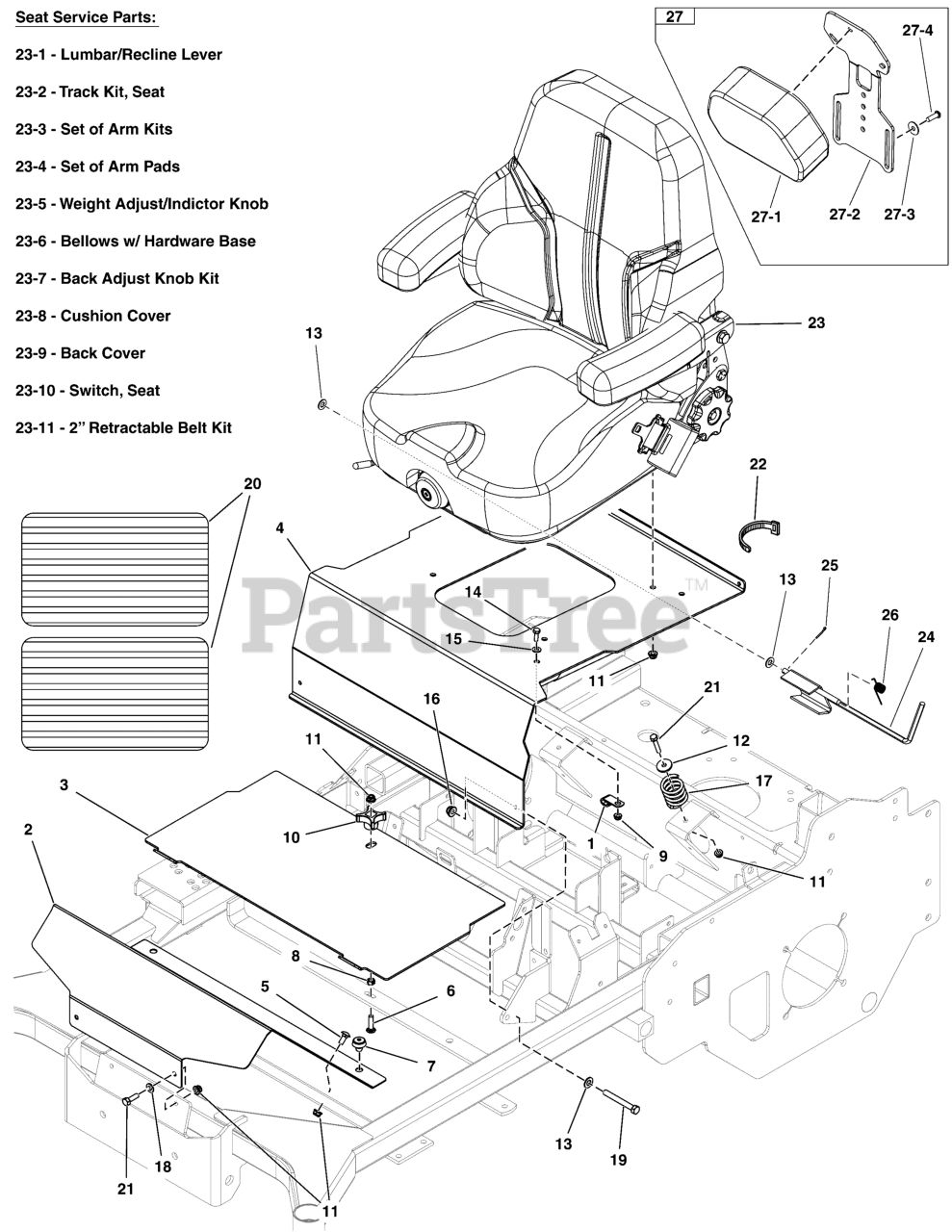

Seat Mount and Floor Group S/N: 4000875837 and Above Parts Diagram

  • Title

1

Ferris 5025430

CLAMP, 5/16", DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

2

Ferris 5414766B

PLATE, RIGID FLOOR, S320Z - RED
(Superseded to 5414766BFS)

$98.99

$

Usually ships in 2-12 days

0

3

Ferris 5410362B

PLATE, REMOVABLE FLOOR, 200XT - RED
(Superseded to 5410362BFS)

$109.99

$

Usually ships in 2-12 days

0

4

Ferris 5601228

ASSM, SEAT PLATE W/DECAL-DOM (5418271B)

$355.99

$

Usually ships in 2-12 days

0

5

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

6

Ferris 80003669

BOLT,5/16-18X1.500,CARRIAGE,SQ,GR5,ZC/CL
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

7

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

8

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

9

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

Usually ships in 2-12 days

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

13

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

Usually ships in 2-12 days

0

18

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

19

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

20

Ferris 5101114

SAFETY WALK, 10.00 X 19.00
(Superseded to 5101114YP)

$68.99

$

Usually ships in 2-12 days

0

21

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

22

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

23

Ferris 5108194

SEAT, HIGH BACK,SUSP,SWITCH & SEAT BELTS
(Superseded to 84006088)

$1432.99

$

Usually ships in 2-12 days

0

23-1

Ferris 5105099X2

LUMBAR/RECLINE/ISO LVR W/ RLL PIN BS

Note: (SV)

$40.99

$

Usually ships in 2-12 days

0

23-2

Ferris 5104720X1

4" SINGLE LOCKING TRACKS BASE

Note: (SV)

$148.99

$

Usually ships in 2-12 days

0

23-3

Ferris 5106325X2

SET OF ARM KITS

Note: (SV)

$284.99

$

Usually ships in 2-12 days

0

23-4

Ferris 5106325X3

SET OF ARM PADS

Note: (SV)

$122.99

$

Usually ships in 2-12 days

0

23-5

Ferris 5104720X2

WEIGHT ADJUST INDICATOR KNOB ASSY BASE

Note: (SV)

$85.99

$

Usually ships in 2-12 days

0

23-6

Ferris 5104720X3

BELLOWS W/ HARDWARE BASE

Note: (SV)

$100.99

$

Usually ships in 2-12 days

0

23-7

Ferris 5106325X4

BACK ADJUSTMENT KNOB KIT

Note: (SV)

$40.99

$

Usually ships in 2-12 days

0

23-8

Ferris 5106325X6

CUSHION COVER FORM I3M, 314659VN584

Note: (SV)

$272.99

$

Usually ships in 2-12 days

0

23-9

Ferris 5108194X2

SEAT BACK COVER

Note: (SV)

$320.99

$

Usually ships in 2-12 days

0

23-10

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

23-11

Ferris 5106325X5

2" RETRACTABLE BELT KIT

Note: (SV)

$142.99

$

Usually ships in 2-12 days

0

24

Ferris 5418442A

WELD, SEAT LATCH HOOK, W/ SPRING - BLK

$

$

Currently unavailable

25

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

26

Ferris 5106644

SPRING, TORSION, LH, .0625OD
(Superseded to 84003202)

$2.49

$

Usually ships in 2-12 days

0

27

Ferris 5601135

KIT, HEAD REST
(Superseded to 84003643)

$161.99

$

Usually ships in 2-12 days

0

27-1

Ferris 5106645

HEAD REST HIGH BACK SEAT
(Superseded to 5106645FS)

$101.99

$

Usually ships in 2-12 days

0

27-2

Ferris 5418483A

PLATE, MOUNTING BRACKET, HEADREST - BLK

$71.99

$

Usually ships in 2-12 days

0

27-3

Ferris 5107404

WASHER, FENDER, 1.00 OD X .315 ID X .055
(Superseded to 84001871)

$2.49

$

Usually ships in 2-12 days

0

27-4

Ferris 5025652

SCREW, 5/16-18X1, BUT HD, BLK, W/PATCH
(Superseded to 84003203)

$2.99

$

Usually ships in 2-12 days

0
