F 320Z (5901712) - Ferris F320Z Series 72" Zero-Turn Mower, 32hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton 543777 (Remote Oil Tank) Parts Diagram

F320Z Series 72" Zero-Turn Mower, 32hp Briggs & Stratton

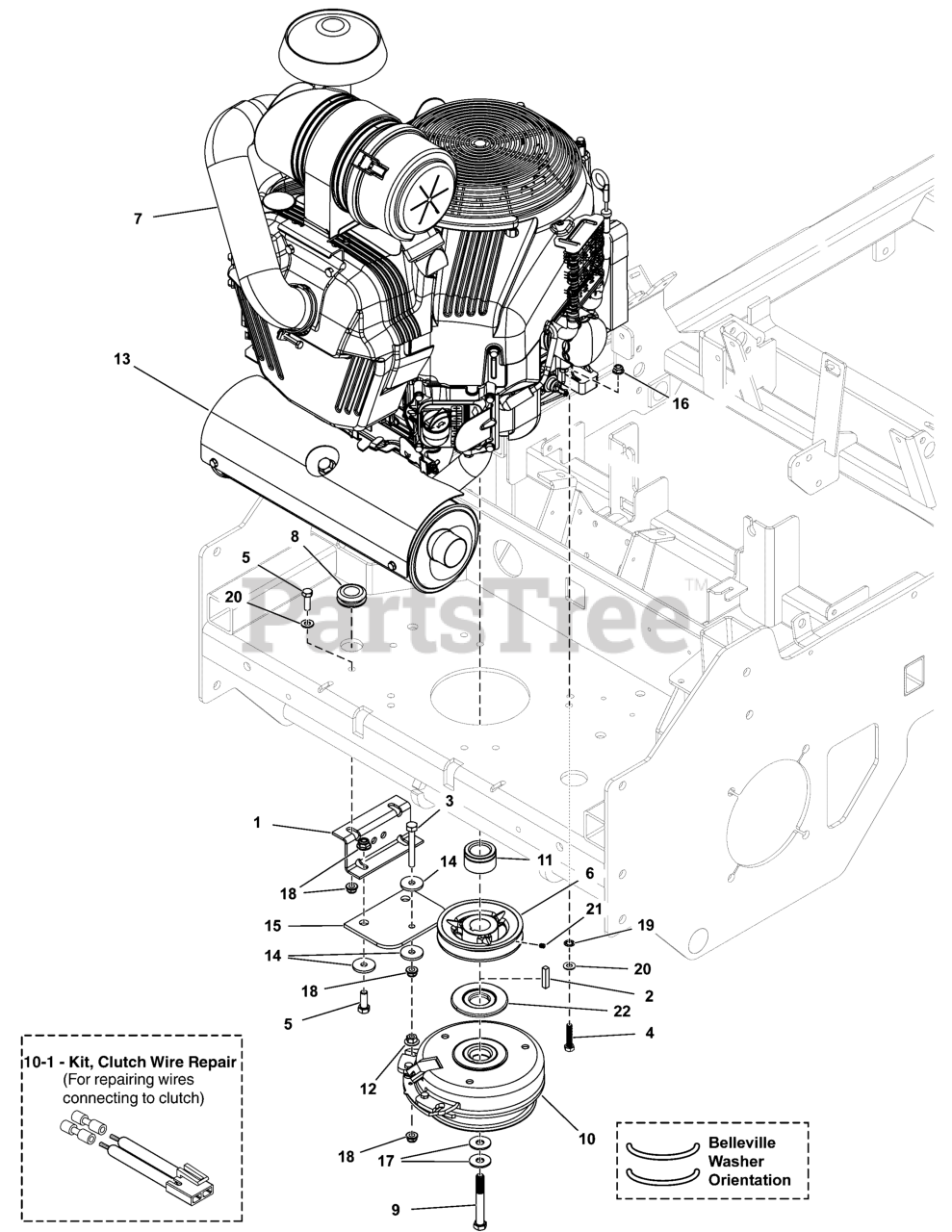

Engine & PTO Group - Briggs & Stratton 543777 (Remote Oil Tank) Parts Diagram

  • Title

1

Ferris 5414825A

ANCHOR, CLUTCH - BLK

$

$

Not available

2

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

3

Ferris 5025055X20

BOLT, 5/16-18 X 2-1/2 GD5 TFL, CZ
(Superseded to 5025055X20FS)

$7.49

$

Usually ships in 2-12 days

0

4

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

6

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

7

BRIGGS & STRATTON ENGINE, 543777-0012-J1

Note: (Refer to Note: *)(S/N: 4001858852 and below)

$

$

Not available

7

BRIGGS & STRATTON ENGINE, 543777-3244-J1

Note: (Refer to Note: *)(S/N: 4001858853 and above)

$

$

Not available

8

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

9

Ferris 5103300

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4, GD 8
(Superseded to 5103300YP)

Note: (Torque crankshaft bolt to 65 ft. lbs. (88 Nm))

$5.99

$

In Stock, only 1 left!

0

10

CLUTCH, If replacing, use 5108850 and 5108851

Note: (S/N: 4001550166 and below)

$

$

Not available

10

Ferris 5108850

CLUTCH, 250 FT-LBS, WATER GUARD
(Superseded to 84006412)

Note: (S/N: 4001550167 and above)

$468.99

$

Usually ships in 2-12 days

0

10-1

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

$66.99

$

Usually ships in 2-12 days

0

11

Ferris 5100926

SPACER, 1.13 X 1.75 X 1.35, CZ
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

12

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

13

Ferris 843906

MUFFLER (Purchase from Engine Manufacturer)

Note: (See Engine Manufacturer for Replacement Muffler)

$

$

Not available

14

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

15

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

16

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0

17

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

18

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

Note: (SV)

$3.49

$

In Stock, Qty 12

0

22

Ferris 5108851

WATER GUARD, WARNER C 250 FT-LBS CLUTCH
(Superseded to 84006413)

Note: (S/N: 4001550167 and above)

$13.99

$

Usually ships in 2-12 days

0
