F 320Z (5901711) - Ferris F320Z Series 61" Zero-Turn Mower, 30hp Kawasaki Electrical Group - Kawasaki FX850V EFI Parts Diagram

F320Z Series 61" Zero-Turn Mower, 30hp Kawasaki

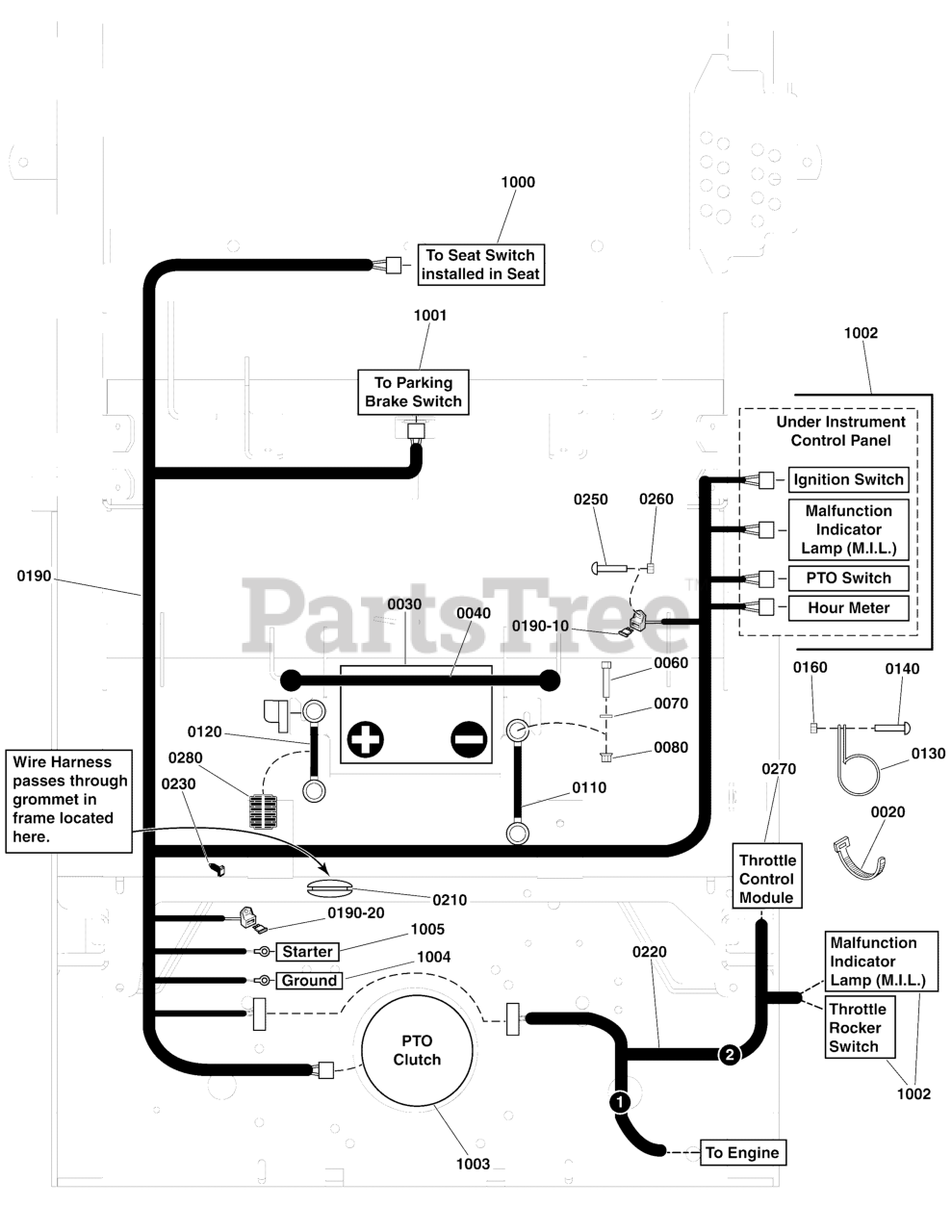

Electrical Group - Kawasaki FX850V EFI Parts Diagram

  • Title

0020

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

0030

BATTERY, 11U1L, 350 CCA

$

$

Not available

0040

Ferris 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0070

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0110

Ferris 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

Note: (S/N: 4000015530 and below)

$16.99

$

Usually ships in 2-12 days

0

0110

Ferris 5101396

CABLE, BATTERY, NEG, 30, 1/4-5/16
(Superseded to 5101396YP)

Note: (S/N: 4000015531 and above)

$35.99

$

Usually ships in 2-12 days

0

0120

Ferris 5021542

BATTERY CABLE, POS, 30, 1/4-5/16
(Superseded to 5021542SM)

$29.99

$

Usually ships in 2-12 days

0

0130

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025299X8

SCREW, 1/4-20 X 1, ALLEN BH, CZ
(Superseded to 5025299X8YP)

$4.49

$

Usually ships in 2-12 days

0

0160

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0190

Ferris 5105535

HARNESS, Wiring, Large ZTR
(Superseded to 5105535YP)

$207.99

$

Usually ships in 2-12 days

0

0190-10

Ferris 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

0190-20

Ferris 5102710

FUSE, ATO, 25 AMP
(Superseded to 5102710YP)

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

0210

Ferris 5102677

GROMMET, 1-1/2" ID FOR 1/4" METAL

$

$

Currently unavailable

0211

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

Note: (Not illustrated)

$3.99

$

Usually ships in 2-12 days

0

0212

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

Note: (Not illustrated)

$3.99

$

Usually ships in 2-12 days

0

0220

Ferris 5105601

HARNESS, JUMPER, KAWASKI EFI

$136.99

$

Usually ships in 2-12 days

0

0230

Ferris 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

Note: (S/N: 4000015530 and below)

$5.99

$

Usually ships in 2-12 days

0

0250

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

0260

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0270

Ferris 5102075

MODULE, THROTTLE CONTROL, KAV DFI

$

$

Not available

0280

Ferris 5050927X24

WIRE LOOM, 3/8 ID X 24 IN

$

$

Currently unavailable

0290

Ferris 5104705

ROSEBUD LOOM CLIP
(Superseded to 5104705YP)

Note: (S/N: 4000015531 and above)

$2.49

$

Usually ships in 2-12 days

0

1000

Refer to: Seat Mount & Floor Group

$

$

Not available

1001

Refer to: Parking Brake Group

$

$

Not available

1002

Refer to: Instrument Control Panel Group

$

$

Not available

1003

Refer to: Engine & PTO Group

$

$

Not available

1004

Connects to Ground

$

$

Not available

1005

Connects to Starter Solenoid (Post)

$

$

Not available
