F 320Z (5901644) - Ferris F320Z Series 61" Zero-Turn Mower, 37hp Briggs & Stratton 61" Mower Deck Group - Housing, Covers, Spindles & Blades (2 Belt System) Parts Diagram

F320Z Series 61" Zero-Turn Mower, 37hp Briggs & Stratton

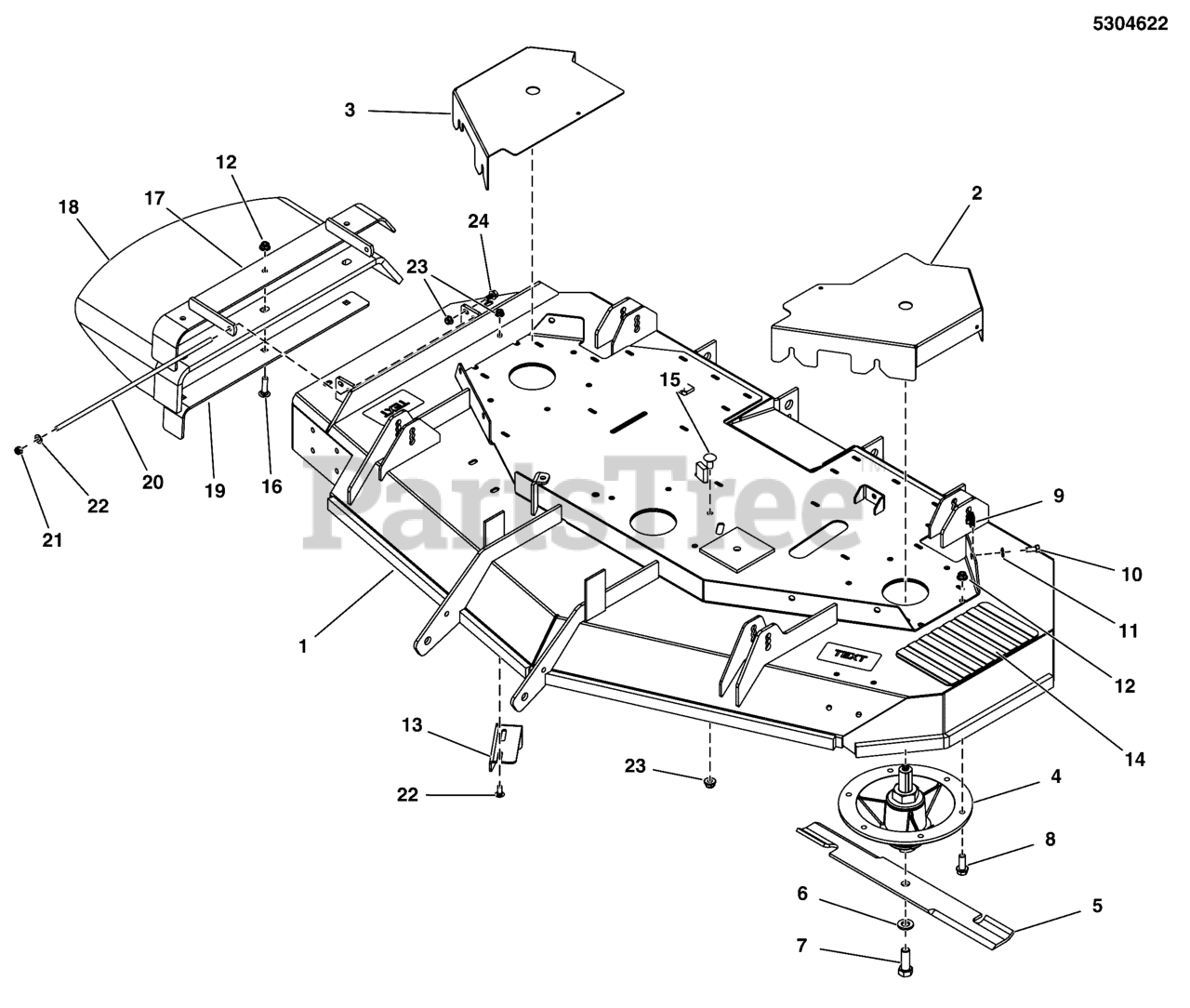

61" Mower Deck Group - Housing, Covers, Spindles & Blades (2 Belt System) Parts Diagram

  • Title

1

Ferris 5600981

DECK SHELL W/DECALS, 61, F320Z (5415350B)

Note: (S/N: 2017954955 & Below)

$

$

Currently unavailable

1

Ferris 5601117

DECK SHELL W/DECALS, F320Z-61 (5417033B)

Note: (S/N: 2017954956 & Above)(Refer to Note: *)

$

$

Currently unavailable

2

Ferris 5413169B

GUARD, IS3200Z, LH 61" - RED
(Superseded to 5413169BFS)

$52.99

$

Usually ships in 2-12 days

0

3

Ferris 5415578B

GUARD, MOWER DECK, IS3200-61, RH - RED
(Superseded to 5415578BFS)

$45.99

$

Usually ships in 2-12 days

0

4

Ferris 84007984

SPINDLE ASSEMBLY

Note: (S/N: 2017458254 and below)

$296.99

$

In Stock, only 1 left!

0

4

Ferris 84003242

SPINDLE ASSEMBLY

Note: (S/N: 2017458255 and above)

$351.99

$

In Stock, Qty 5

0

5

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (SV) Set of 3 blades)

$

$

Not available

6

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

7

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque to 70 ft. lbs. (94 Nm)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

Note: (Torque to 30 ft. lbs. (41 Nm)

$2.99

$

Usually ships in 2-12 days

0

9

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

10

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

11

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

12

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

14

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

15

Ferris 80003604

BOLT,3/8-16X1-1/4,GR5,CARRIAGE,ZC/CL
(Superseded to 703130)

Note: (Torque to 30 ft. lbs. (41 Nm)

$3.99

$

In Stock, Qty 13

0

16

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 84008171

MOUNT

$136.99

$

Usually ships in 2-12 days

0

18

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

19

Ferris 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

$28.99

$

In Stock, Qty 5

0

20

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

21

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

22

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

23

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0
