F 320Z (5901524) - Ferris F320Z Series 61" Zero-Turn Mower, 35hp Kawasaki Deck Lift Group - Rods & Pedal Parts Diagram

F320Z Series 61" Zero-Turn Mower, 35hp Kawasaki

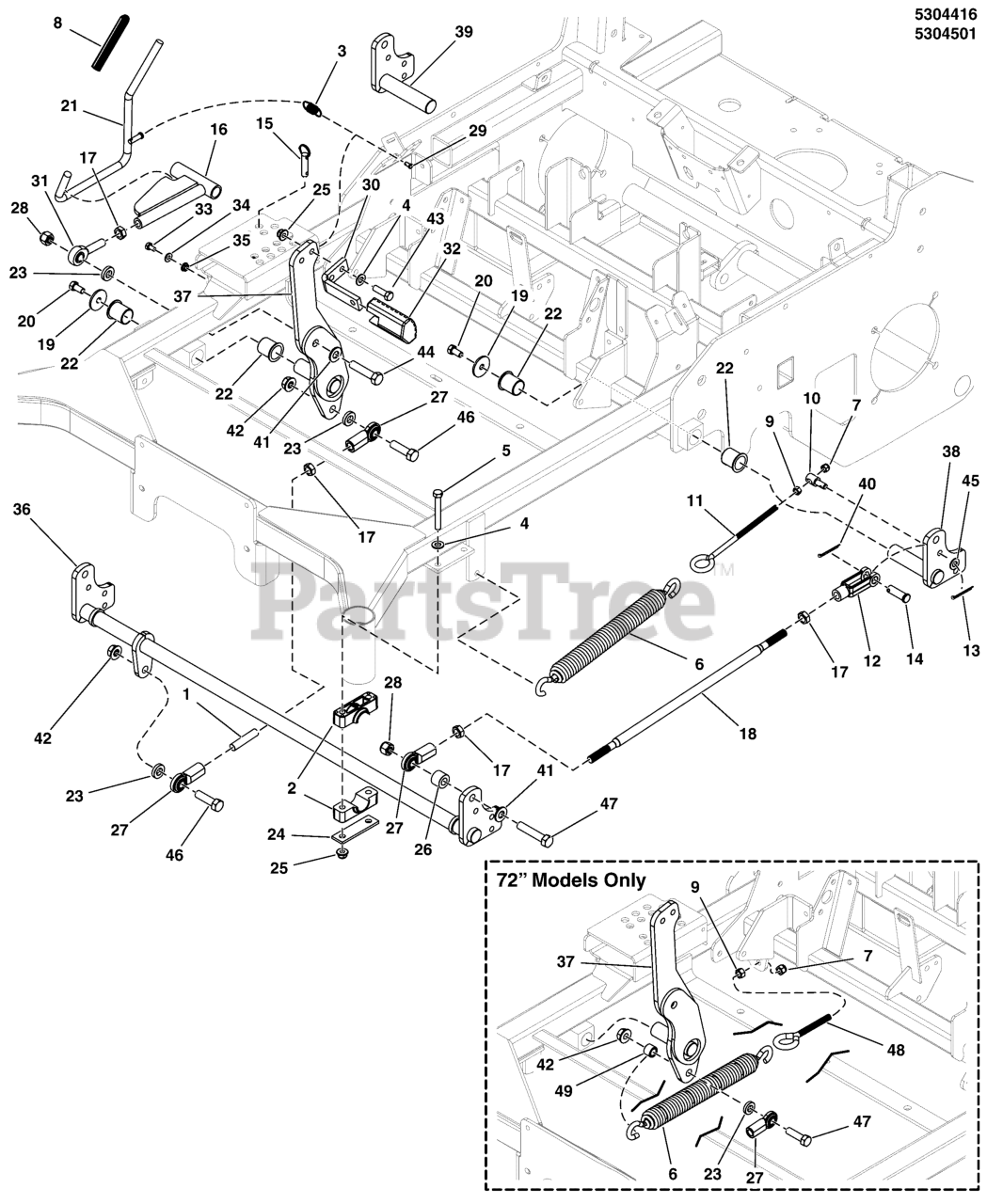

Deck Lift Group - Rods & Pedal Parts Diagram

  • Title

1

Ferris 5104663

ROD, THREADED, 1/2-20 X 2.25
(Superseded to 5104663FS)

$14.99

$

Usually ships in 2-12 days

0

2

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

3

Ferris 5010213

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK
(Superseded to 5010213YP)

$14.99

$

Usually ships in 2-12 days

0

4

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

6

Ferris 5023392

SPRING-EXT, 1.393 ODX13.25LGX.218WR, BLK
(Superseded to 5023392YP)

Note: (Qty: 3 - 72" Models)

$74.99

$

Usually ships in 2-12 days

0

7

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: (Qty: 3 - 72" Models)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

9

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

Note: (Qty: 3 - 72" Models)

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5100380

ADJUSTER, DECK HANGER
(Superseded to 5100380SM)

$20.99

$

In Stock, only 1 left!

0

11

Ferris 5021811

EYE BOLT, 3/8-16 X 8, 3THRD, 1EYE, CZ
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

12

Ferris 5023174

CLEVIS, 1/2-20, STEEL, CLEAR ZINC
(Superseded to 5023174SM)

$16.99

$

In Stock, only 1 left!

0

13

Ferris 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 3 left!

0

14

Ferris 5025479

PIN, CLEVIS, 1/2 X 1-23/64, PLATED
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

15

Ferris 5023498

PIN, HITCH, 1/2 X 2.00 OAL, CZ
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

16

Ferris 5402757B

WELD, DECK ADJUST LINK - RED

$46.99

$

Usually ships in 2-12 days

0

17

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 20+

0

18

Ferris 5103758

ROD, DECK LIFT, 19.25, CZ
(Superseded to 5103758YP)

$37.99

$

Usually ships in 2-12 days

0

19

Ferris 5100548

WASHER, .390 X 1.50 X .109, CZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5414816A

WELD, ROD DECK LIFT, F320Z - BLK

$26.99

$

Usually ships in 2-12 days

0

22

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

23

Ferris 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

In Stock, only 2 left!

0

24

Ferris 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

26

Ferris 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0

27

Ferris 1702779

JOINT-BALL .500-20 THD .500ID, CLR ZINC
(Superseded to 1702779SM)

$28.99

$

In Stock, Qty 14

0

28

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

29

Ferris 5025212X4

PIN, CLEVIS, 1/4 X 1/2, PLATED
(Superseded to 5025212X4SM)

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

31

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

32

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

Usually ships in 2-12 days

0

33

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

34

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

35

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

36

Ferris 5414703B

WELD, DECK LIFT SHAFT, F320-61" - RED

$185.99

$

Usually ships in 2-12 days

0

37

Ferris 5414753B

WELD, DECK LIFT PEDAL, F320Z - RED

$104.99

$

Usually ships in 2-12 days

0

38

Ferris 5414683B

WELD, DECK LIFT LEVER, F320Z, LH - RED

$53.99

$

Usually ships in 2-12 days

0

39

Ferris 5414684B

WELD, DECK LIFT LEVER, F320Z, RH - RED

$53.99

$

Usually ships in 2-12 days

0

40

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

41

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

42

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

43

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

44

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

45

Ferris 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

46

Ferris 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

Note: (Qty: 1 - 72" Models)

$4.49

$

In Stock, only 1 left!

0

47

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

Note: (Qty: 3 - 72" Models)

$5.49

$

In Stock, Qty 9

0

48

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

Note: (72" Models Only)

$9.49

$

In Stock, only 1 left!

0

49

Ferris 5047027

SPACER, .51 X .75 X .56, PM, CZ
(Superseded to 5047027SM)

Note: (72" Models Only)

$5.49

$

In Stock, Qty 20+

0
