F 320Z (5901523) - Ferris F320Z Series 61" Zero-Turn Mower, 37hp Briggs & Stratton Fuel Tank & Mount Group Parts Diagram

F320Z Series 61" Zero-Turn Mower, 37hp Briggs & Stratton

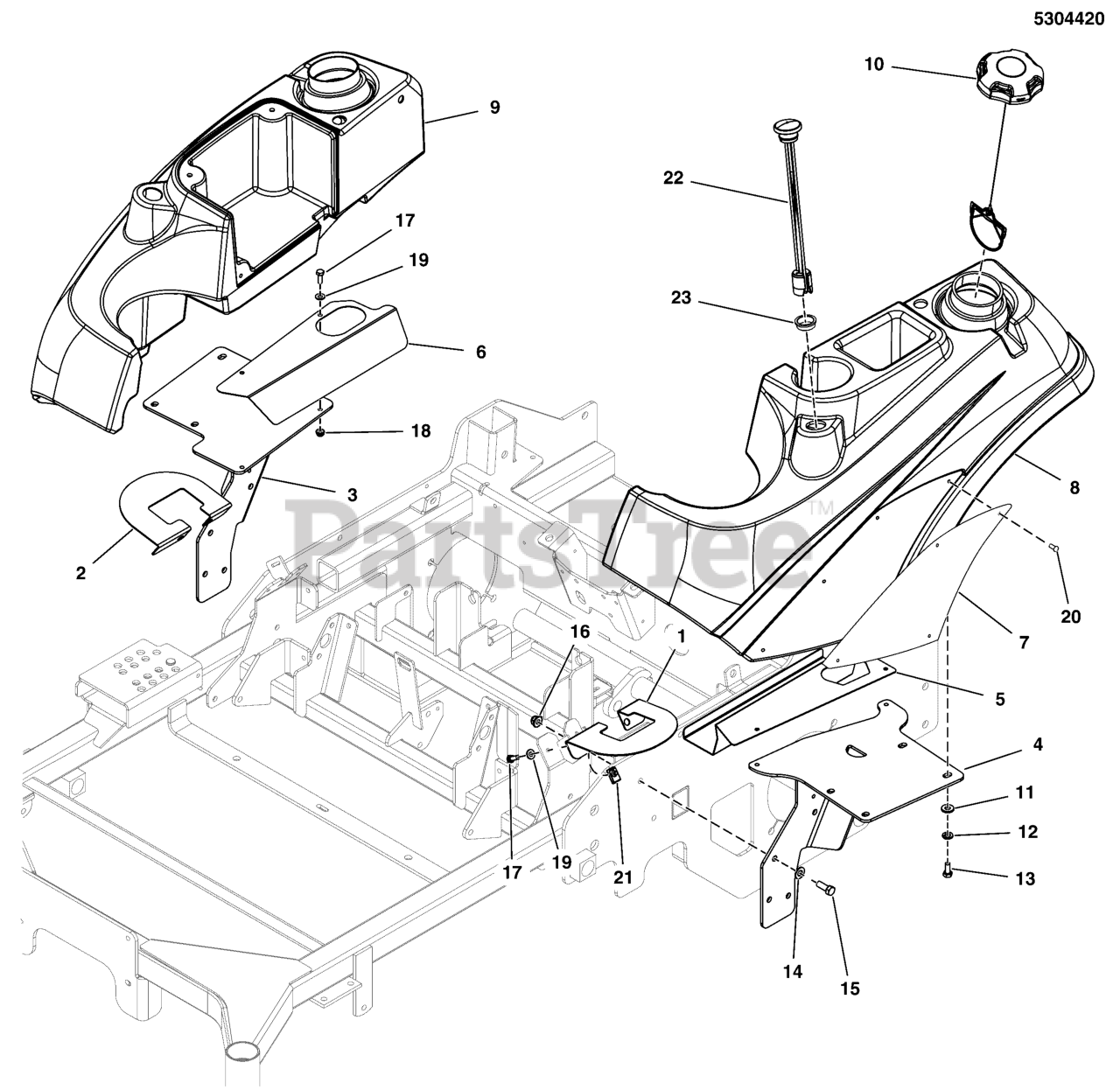

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5414811A

PLATE,MOTION CONTROL GUARD,F320Z LH -BLK

$

$

Currently unavailable

2

Ferris 5414810A

PLATE,MOTION CONTROL GUARD,F320Z RH -BLK

$

$

Currently unavailable

3

Ferris 5414902A

WELD, FUEL MOUNT, RH - BLK

$92.99

$

Usually ships in 2-12 days

0

4

Ferris 5414901A

WELD, FUEL MOUNT, LH - BLK

$101.99

$

Usually ships in 2-12 days

0

5

Ferris 5414809A

GUARD, FUEL MOUNT, F320Z, LH - BLK

Note: (S/N: 4000015530 and below)

$

$

Currently unavailable

5

Ferris 5418717A

GUARD, FUEL MOUNT, LH - BLK

Note: (S/N: 4000015531 and above)

$

$

Currently unavailable

6

Ferris 5414808A

GUARD, FUEL MOUNT, F320Z. RH - BLK

Note: (S/N: 4000015530 and below)

$

$

Currently unavailable

6

Ferris 5418718A

GUARD, FUEL MOUNT, RH - BLK

Note: (S/N: 4000015531 and above)

$

$

Currently unavailable

7

Ferris 5401095B

BADGE, IS2000 - IS3000 - RED
(Superseded to 5401095BFS)

$49.99

$

In Stock, only 1 left!

0

8

Ferris 5103178

TANK, FUEL, LH
(Superseded to 5103178YP)

$652.99

$

Usually ships in 2-12 days

0

9

Ferris 5103177

TANK, FUEL, 5.25 GAL,MED, Z-RH, LOW PERM
(Superseded to 5103177YP)

$604.99

$

Usually ships in 2-12 days

0

10

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

11

Ferris 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

18

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

19

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

21

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

Note: (SV)

$48.99

$

Usually ships in 2-12 days

0

23

Ferris 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

Note: (SV)

$6.99

$

In Stock, only 3 left!

0
