F 320Z (5901522) - Ferris F320Z Series 72" Zero-Turn Mower, 35hp Kawasaki Electrical Group - Kawasaki Parts Diagram

F320Z Series 72" Zero-Turn Mower, 35hp Kawasaki

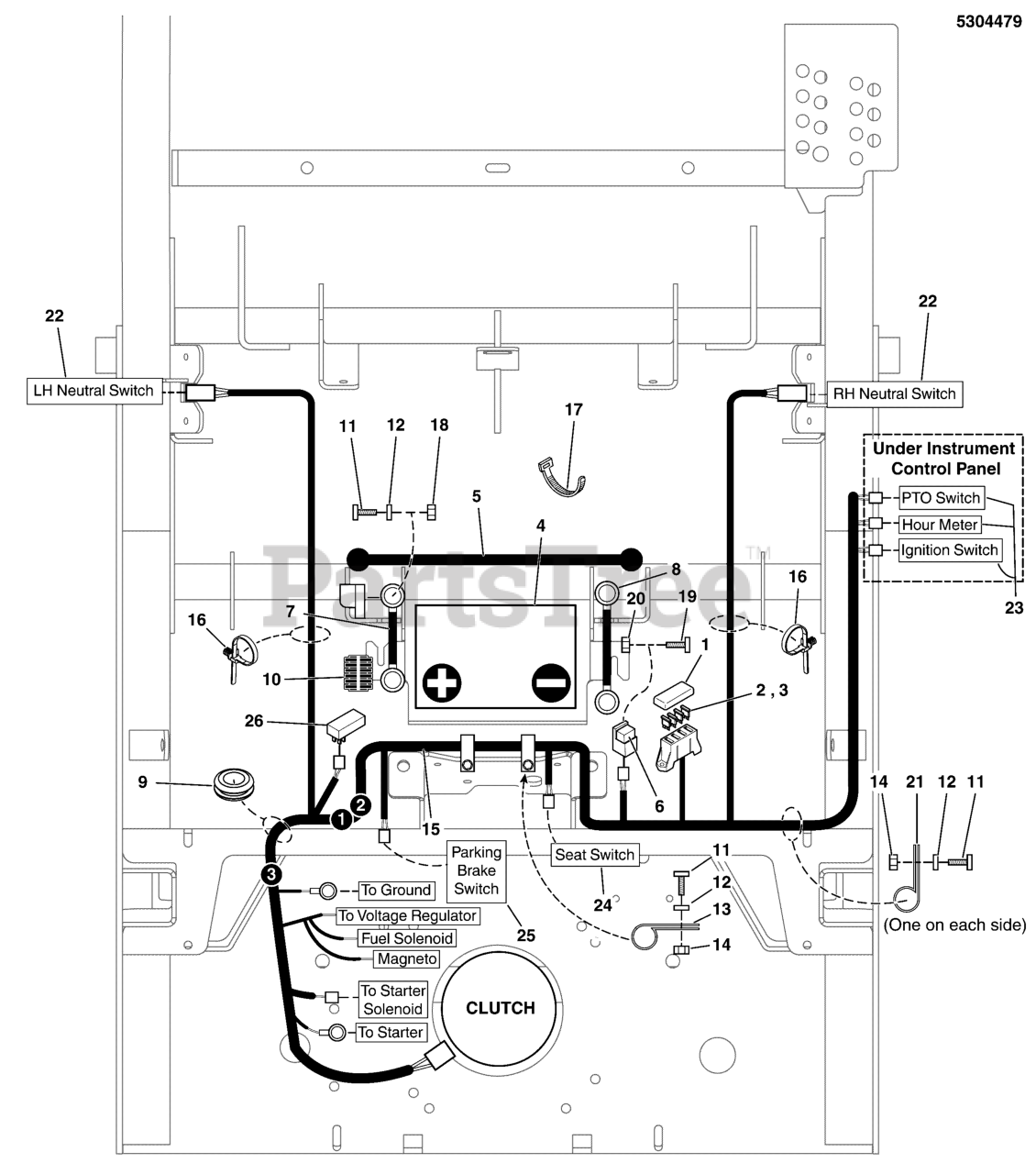

Electrical Group - Kawasaki Parts Diagram

  • Title

1

Ferris 5022805

COVER, VINYL FUSEBLOCK
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

2

Ferris 5101935

FUSE, ATO-15 (15 AMP)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

3

Ferris 5021603

FUSE, ATO-20 (20 AMP)
(Superseded to 5021603SM)

Note: (SV)

$4.99

$

In Stock, only 2 left!

0

4

BATTERY, 11U1L, 350 CCA

$

$

Not available

5

Ferris 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

6

Ferris 5021766

RELAY, 12V, 40A
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

7

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

8

Ferris 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

9

Ferris 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

$5.49

$

Usually ships in 2-12 days

0

10

Ferris 5050927X17

WIRE LOOM, 3/8 ID X 17 IN
(Superseded to 5050927X17FS)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

15

Ferris 5414897

WIRE HARNESS, 35HP KAV, F320Z

$486.99

$

Usually ships in 2-12 days

0

16

Ferris 5021199

TIE, SELF-LOCKING, 8", PUSH MOUNT
(Superseded to 5021199SM)

$5.99

$

In Stock, only 1 left!

0

17

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

18

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5101932

CLAMP, VINYL INSULATED, .625
(Superseded to 5101932YP)

$7.99

$

Usually ships in 2-12 days

0

22

Ferris 5021451

SWITCH, PLUNGER, N.O., BOLT-ON
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

23

CONTROL SWITCHES (SEE INSTRUMENT CONTROL PANEL GROUP)

$

$

Not available

24

Ferris 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

25

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

26

Ferris 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

$114.99

$

Usually ships in 2-12 days

0
