F 230 - Shindaiwa String Trimmer Starter Parts Diagram

String Trimmer

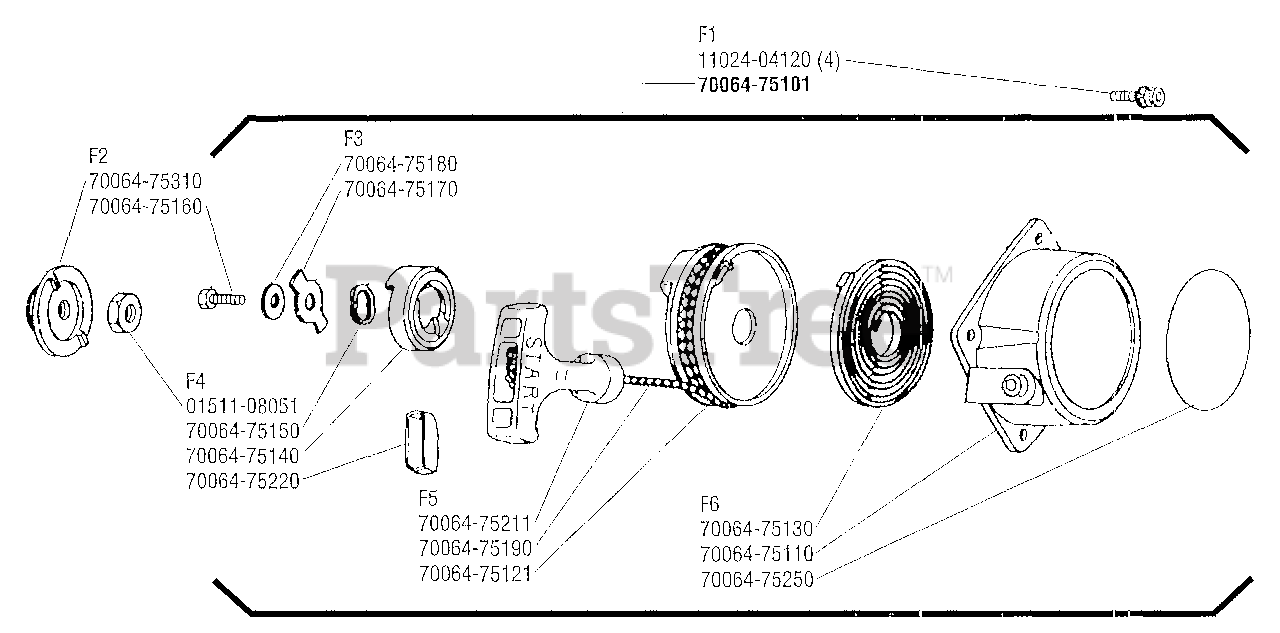

Starter Parts Diagram

  • Title

F2-70064-75310

Echo 70064-75310

STARTER PULLEY
(Superseded to A520000080)

$3.99

$

In Stock, only 4 left!

0

F2-70064-75160

Echo 70064-75160

BOLT
(Superseded to Discontinued)

$

$

Not available

F3-70064-75180

Echo 70064-75180

WASHER

$0.99

$

In Stock, only 3 left!

0

F3-70064-75170

Echo 70064-75170

RETAINER
(Superseded to P022034830)

$2.49

$

In Stock, only 3 left!

0

F4-01511-08051

Echo 01511-08051

NUT
(Superseded to 90050300008)

$0.99

$

In Stock, Qty 20+

0

F4-70064-75150

Echo 70064-75150

WASHER, WAVE
(Superseded to V346000030)

$0.99

$

In Stock, Qty 7

0

F4-70064-75140

Echo 70064-75140

RATCHET
(Superseded to 20140-75140)

$3.49

$

In Stock, Qty 7

0

F4-70064-75220

Echo 70064-75220

STOPPER
(Superseded to A522000020)

$1.99

$

In Stock, only 3 left!

0

F5-70064-75211

Echo 70064-75211

HANDLE
(Superseded to A511000150)

$2.49

$

Usually ships in 2-4 days

0

F5-70064-75190

Echo 70064-75190

ROPE
(Superseded to A509000320)

$3.49

$

In Stock, Qty 8

0

F5-70064-75121

Echo 70064-75121

REEL
(Superseded to Discontinued)

$

$

Not available

F6-70064-75130

Echo 70064-75130

SPRING, RECOIL
(Superseded to A504000050)

$12.99

$

In Stock, Qty 10

0

F6-70064-75110

Echo 70064-75110

STARTER CASE
(Superseded to A500001060)

$10.99

$

Usually ships in 2-4 days

0

F6-70064-75250

Echo 70064-75250

LABEL
(Superseded to 70117-75311)

$1.99

$

In Stock, only 2 left!

0

F1-11024-04120

Echo 11024-04120

BOLT SPW
(Superseded to V202000180)

$0.99

$

In Stock, Qty 20+

0

F1-70064-75101

Echo 70064-75101

RECOIL STARTER ASSY
(Superseded to 70117-75102)

$56.99

$

In Stock, Qty 8

0
