F 230 - Shindaiwa String Trimmer Crank Shaft, Clutch Shoe, Piston Parts Diagram

String Trimmer

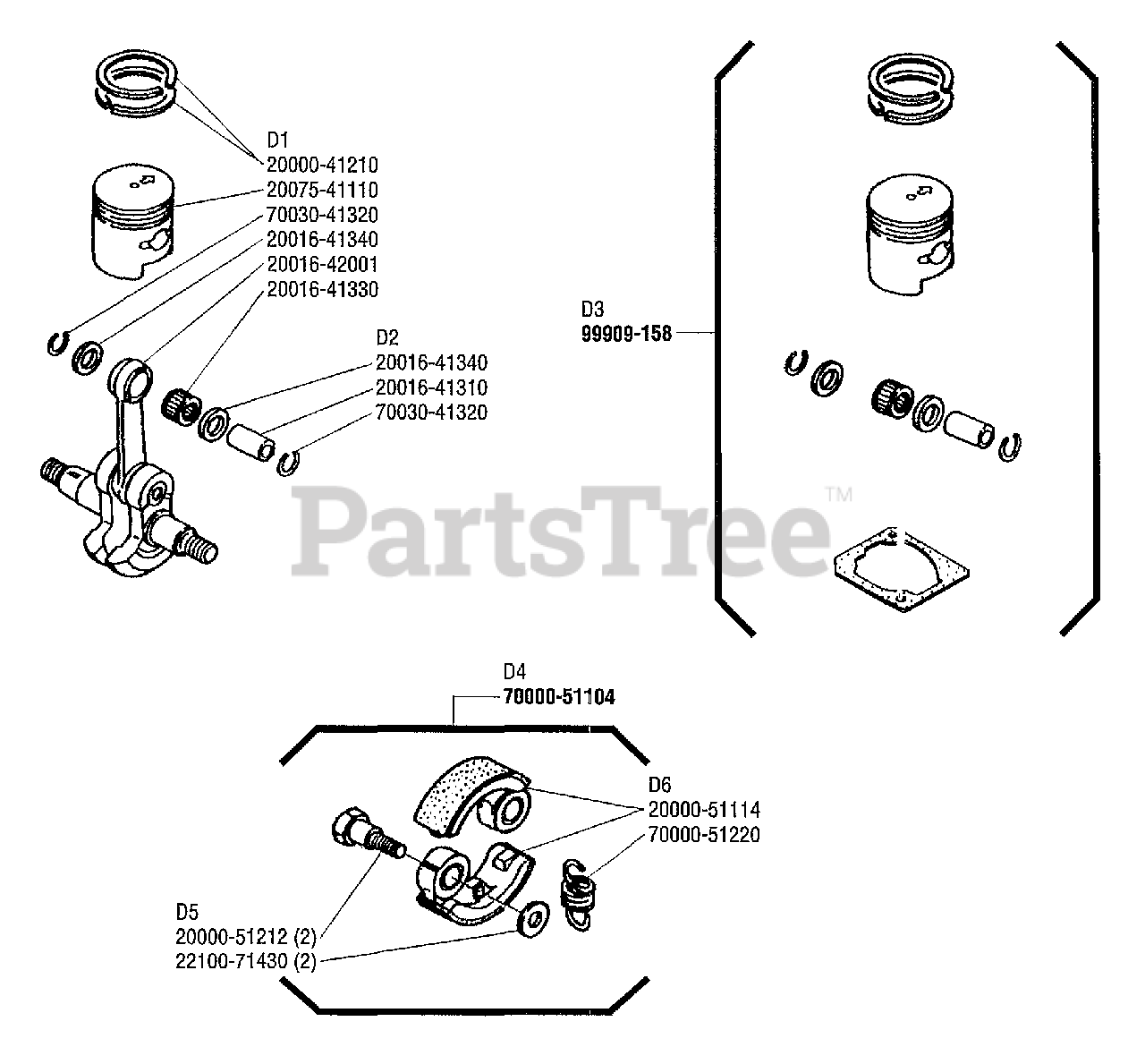

Crank Shaft, Clutch Shoe, Piston Parts Diagram

  • Title

D2-20016-41340

Echo 20016-41340

WASHER, THRUST
(Superseded to V306000260)

$1.49

$

Usually ships in 2-4 days

0

D2-20016-41310

Echo 20016-41310

PISTON PIN
(Superseded to V606000060)

$3.49

$

In Stock, only 1 left!

0

D2-70030-41320

Echo 70030-41320

SNAP RING
(Superseded to V580000070)

$0.99

$

In Stock, Qty 9

0

D4-70000-51104

Echo 70000-51104

CLUTCH ASSY
(Superseded to 70140-51100)

$32.99

$

In Stock, Qty 20+

0

D1-20000-41210

Echo 20000-41210

PISTON RING
(Superseded to A101000400)

$6.49

$

In Stock, only 2 left!

0

D1-20075-41110

Echo 20075-41110

PISTON, USE 20075-41111
(Superseded to 70234-98310)

$35.99

$

Usually ships in 2-4 days

0

D1-70030-41320

Echo 70030-41320

SNAP RING
(Superseded to V580000070)

$0.99

$

In Stock, Qty 9

0

D1-20016-41340

Echo 20016-41340

WASHER, THRUST
(Superseded to V306000260)

$1.49

$

Usually ships in 2-4 days

0

D1-20016-42001

Echo 20016-42001

CRANKSHAFT ASSY
(Superseded to 20016-42002)

$67.99

$

Usually ships in 2-4 days

0

D1-20016-41330

Echo 20016-41330

BEARING, NEEDLE USE 81593
(Superseded to 81593)

$7.99

$

In Stock, only 1 left!

0

D3-99909-158

Echo 99909-158

PISTON ASSY
(Superseded to 70234-98010)

$60.99

$

In Stock, Qty 6

0

D6-20000-51114

Echo 20000-51114

CLUTCH SHOE KIT
(Superseded to A555000110)

$15.99

$

Usually ships in 2-4 days

0

D6-70000-51220

Echo 70000-51220

SPRING
(Superseded to A566000070)

$2.49

$

Usually ships in 2-4 days

0

D5-20000-51212

Echo 20000-51212

BOLT, CLUTCH, USE 20087-51210
(Superseded to A557000070)

$1.49

$

Usually ships in 2-4 days

0

D5-22100-71430

Echo 22100-71430

WASHER
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0
