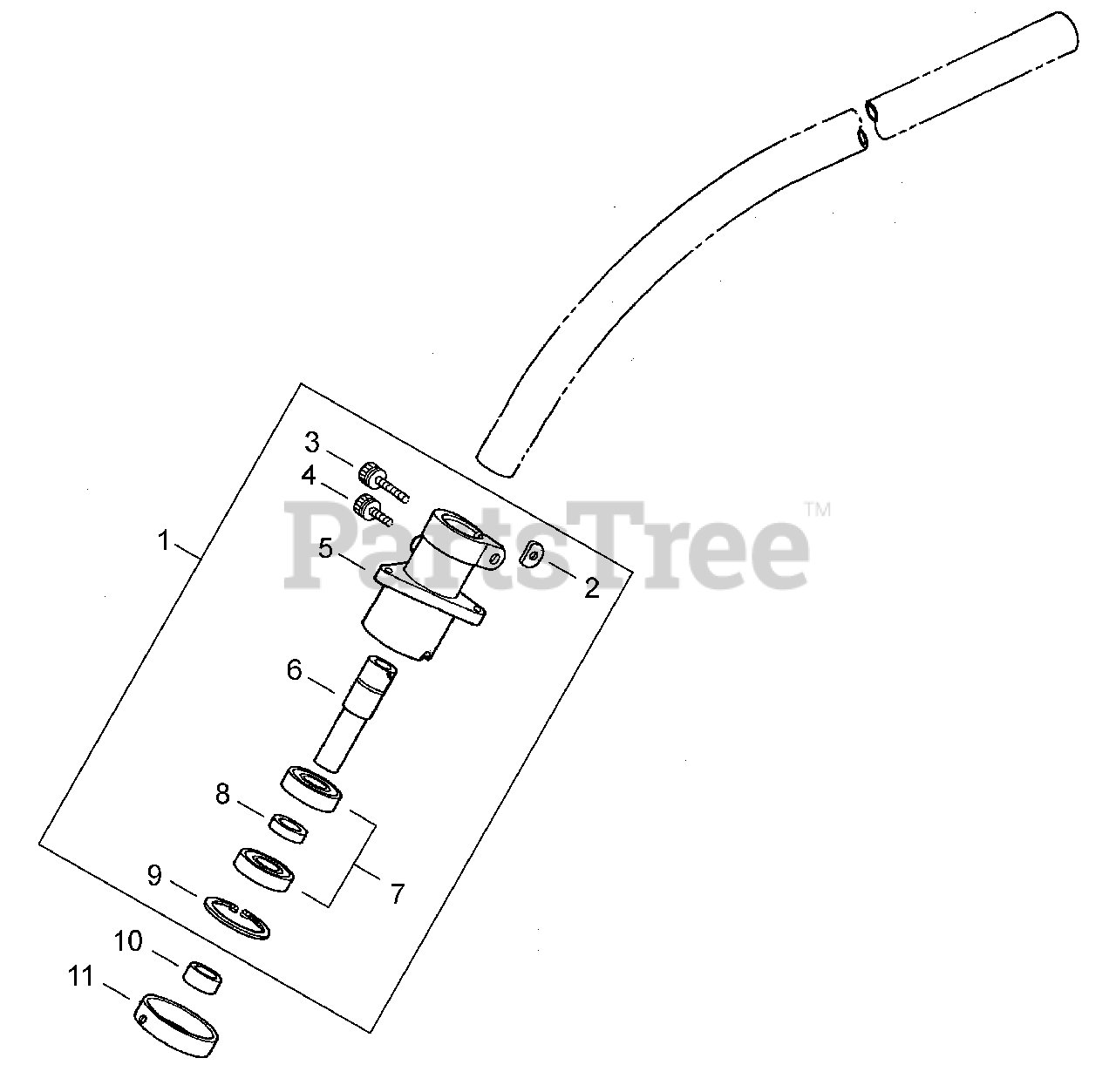

F 222 - Shindaiwa String Trimmer Gear Case Parts Diagram

String Trimmer

Gear Case Parts Diagram

  • Title

1

Echo 67001-63010

GEAR CASE ASSY
(Superseded to C056000030)

$70.99

$

Usually ships in 2-4 days

0

2

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

3

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

4

Echo 11022-05100

SCREW - 5X10
(Superseded to V203001710)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 72097-13110

CASE, GEAR
(Superseded to C530000040)

$18.99

$

Usually ships in 2-4 days

0

6

Echo 72414-13120

SHAFT
(Superseded to C534000540)

$23.99

$

Usually ships in 2-4 days

0

7

Echo 02006-06001

BEARING, BALL - 6001DDU
(Superseded to 90080206001)

$9.99

$

In Stock, only 4 left!

0

8

Echo 72030-13130

COLLAR (A)
(Superseded to V357000170)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.49

$

In Stock, Qty 15

0

10

Echo 72030-13140

SPACER - LOWER
(Superseded to V357000180)

$1.99

$

In Stock, Qty 12

0

11

Echo 72030-13151

HOLDER
(Superseded to C535000480)

$3.49

$

In Stock, only 2 left!

0
