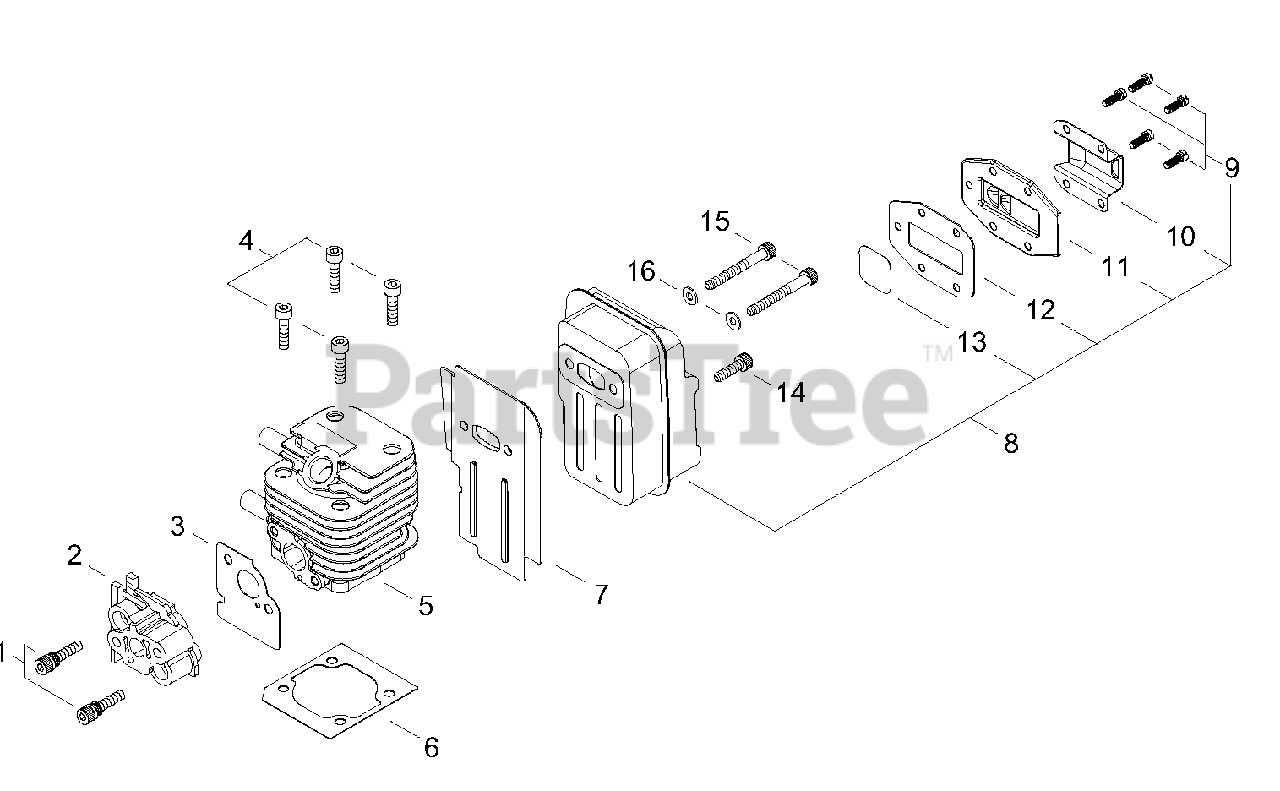

F 222 - Shindaiwa String Trimmer Cylinder / Intake / Exhaust Parts Diagram

String Trimmer

Cylinder / Intake / Exhaust Parts Diagram

  • Title

1

Echo 11022-05305

SCREW - 5X33
(Superseded to V203000480)

$3.99

$

In Stock, Qty 5

0

2

Echo 62100-12212

INSULATOR
(Superseded to A200000440)

$15.99

$

In Stock, only 1 left!

0

3

Echo 62100-12220

GASKET, INTAKE
(Superseded to V103000660)

$1.99

$

In Stock, Qty 20+

0

4

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 6

0

5

Echo 62100-12111

CYLINDER
(Superseded to A130001120)

$62.99

$

Usually ships in 2-4 days

0

6

Echo 62100-12120

GASKET, CYLINDER
(Superseded to V100000340)

$1.99

$

In Stock, only 4 left!

0

7

Echo 37033-15212

SHIELD, EXHAUST
(Superseded to V104001090)

$6.49

$

In Stock, only 1 left!

0

8

Echo 62100-15012

MUFFLER ASSY
(Superseded to A030000110)

$113.99

$

Usually ships in 2-4 days

0

9

Echo 01211-04080

SCREW - 4X8
(Superseded to 90028304008)

$0.99

$

In Stock, Qty 8

0

10

Echo 62100-15392

GUIDE, EXHAUST - OUTER
(Superseded to A313001230)

$4.49

$

Usually ships in 2-4 days

0

11

Echo 62100-15381

COVER, SPARK ARRESTER

$2.49

$

Usually ships in 2-4 days

0

12

Echo 62100-15401

GASKET, EXHAUST
(Superseded to V104001100)

$2.99

$

Usually ships in 2-4 days

0

13

Echo 62100-15370

SCREEN, SPARK ARRESTOR
(Superseded to A310000170)

$1.99

$

Usually ships in 2-4 days

0

14

Echo 01020-05120

SCREW - 5X12
(Superseded to 90010505012)

$1.49

$

In Stock, Qty 20+

0

15

Echo 01020-05555

SCREW - 5X55
(Superseded to 9110905055)

$1.99

$

In Stock, Qty 10

0

16

Echo 01610-05085

WASHER - 5
(Superseded to 90060400005)

$0.99

$

In Stock, Qty 20+

0
