F 222 - Shindaiwa String Trimmer Carburetor Parts Diagram

String Trimmer

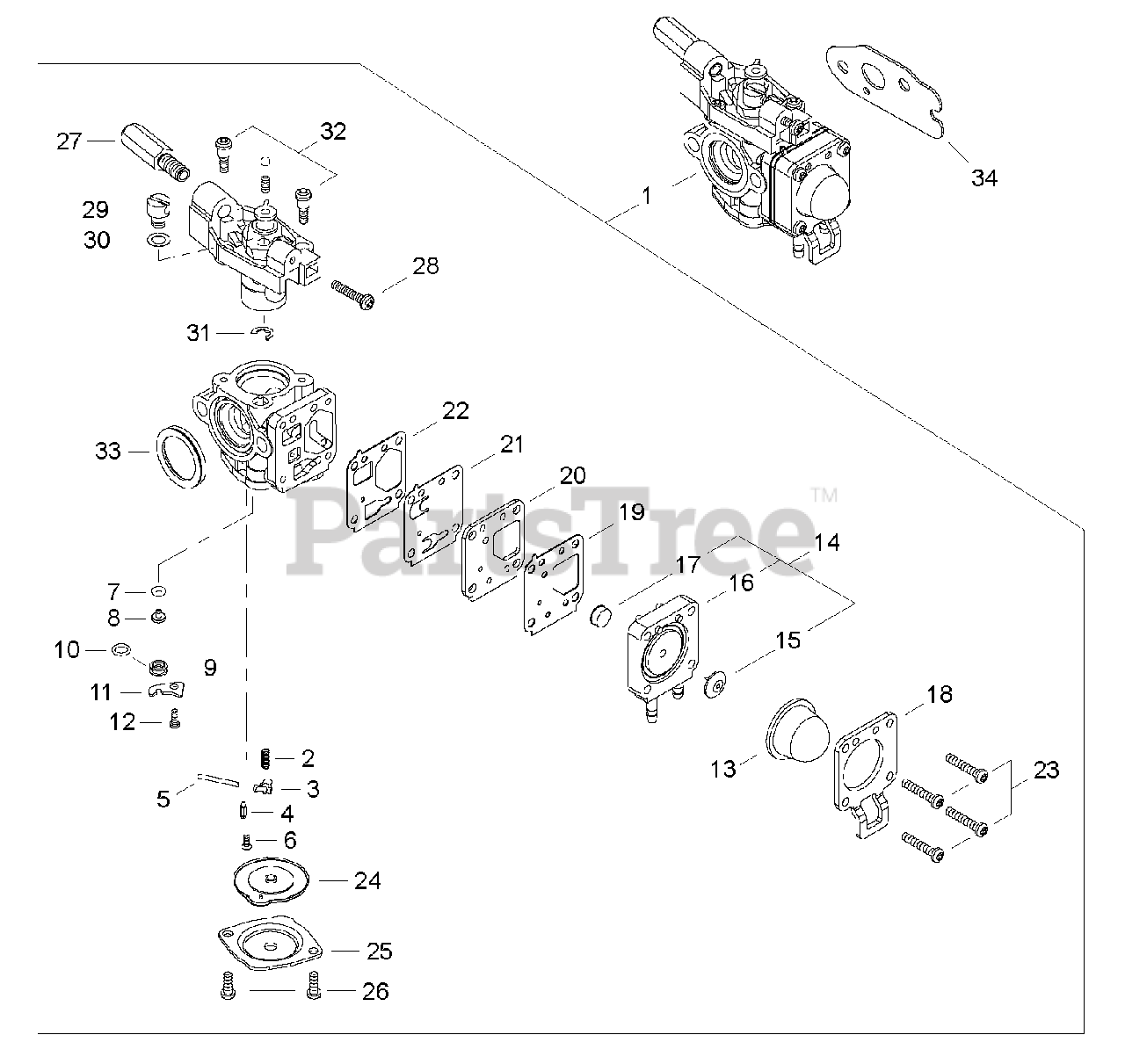

Carburetor Parts Diagram

  • Title
1

Echo 62123-81010

CARBURETOR
(Superseded to A021002080)

$

$

Not available

2

Echo 62123-81570

SPRING, METERING LEVER
(Superseded to P004000740)

$2.99

$

Usually ships in 2-4 days

0

3

Echo 62123-81560

LEVER, METERING

$4.99

$

Usually ships in 2-4 days

0

4

Echo 20019-81440

VALVE, INLET NEEDLE
(Superseded to P004001660)

$11.99

$

In Stock, only 1 left!

0

5

Echo 20011-81460

PIN, METERING LEVER
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

6

Echo 62123-81550

SCREW, METERING LEVER PIN

$

$

Not available

7

$2.99

$

Usually ships in 2-4 days

0

8

Echo 62123-81530

JET, MAIN

$14.99

$

Usually ships in 2-4 days

0

9

Echo 62123-81520

VALVE, CHECK
(Superseded to P004002790)

$11.99

$

Usually ships in 2-4 days

0

10

$2.49

$

Usually ships in 2-4 days

0

11

$

$

Not available

12

$0.99

$

Usually ships in 2-4 days

0

13

Echo 68501-81460

BULB, PURGE
(Superseded to 12438055430)

$7.49

$

In Stock, only 1 left!

0

14

Echo 62123-81480

PURGE BASE ASSY
(Superseded to P004002750)

$27.99

$

Usually ships in 2-4 days

0

15

Echo 68501-81340

VALVE
(Superseded to 12437455430)

$13.99

$

Usually ships in 2-4 days

0

16

Echo 62123-81470

COVER, PUMP
(Superseded to P004000290)

$8.99

$

Usually ships in 2-4 days

0

17

Echo 62123-81460

STRAINER

$4.49

$

Usually ships in 2-4 days

0

18

Echo 62123-81450

RETAINER, PURGE BULB
(Superseded to P004000300)

$5.49

$

In Stock, only 1 left!

0

19

Echo 62123-81440

GASKET, PLATE
(Superseded to P004000250)

$2.99

$

In Stock, only 1 left!

0

20

Echo 62123-81430

PLATE, PUMP

$11.99

$

Usually ships in 2-4 days

0

21

Echo 62123-81420

DIAPHRAGM, PUMP
(Superseded to P004000260)

$9.99

$

In Stock, only 1 left!

0

22

Echo 62123-81410

GASKET, PUMP
(Superseded to P004000270)

$

$

Not available

23

Echo 62123-81400

SCREW
(Superseded to P004000240)

$1.99

$

In Stock, only 4 left!

0

24

Echo 62123-81390

DIAPHRAGM, METERING
(Superseded to P004000330)

$15.99

$

Usually ships in 2-4 days

0

25

Echo 62123-81380

COVER, METERING

$4.49

$

Usually ships in 2-4 days

0

26

$

$

Not available

27

Echo 62123-81360

NUT, CABLE ADJUST

$

$

Not available

28

Echo 62123-81350

SCREW, IDLE ADJUST
(Superseded to P004000210)

$3.99

$

Usually ships in 2-4 days

0

29

$

$

Not available

30

$

$

Not available

31

Echo 62123-81320

RING, RETAINING

$

$

Not available

32

$

$

Not available

33

Echo 20019-81280

SEAL
(Superseded to 12414913410)

$4.99

$

In Stock, only 1 left!

0

34

Echo 62100-81210

GASKET, INTAKE
(Superseded to V103000670)

$1.99

$

In Stock, only 3 left!

0
