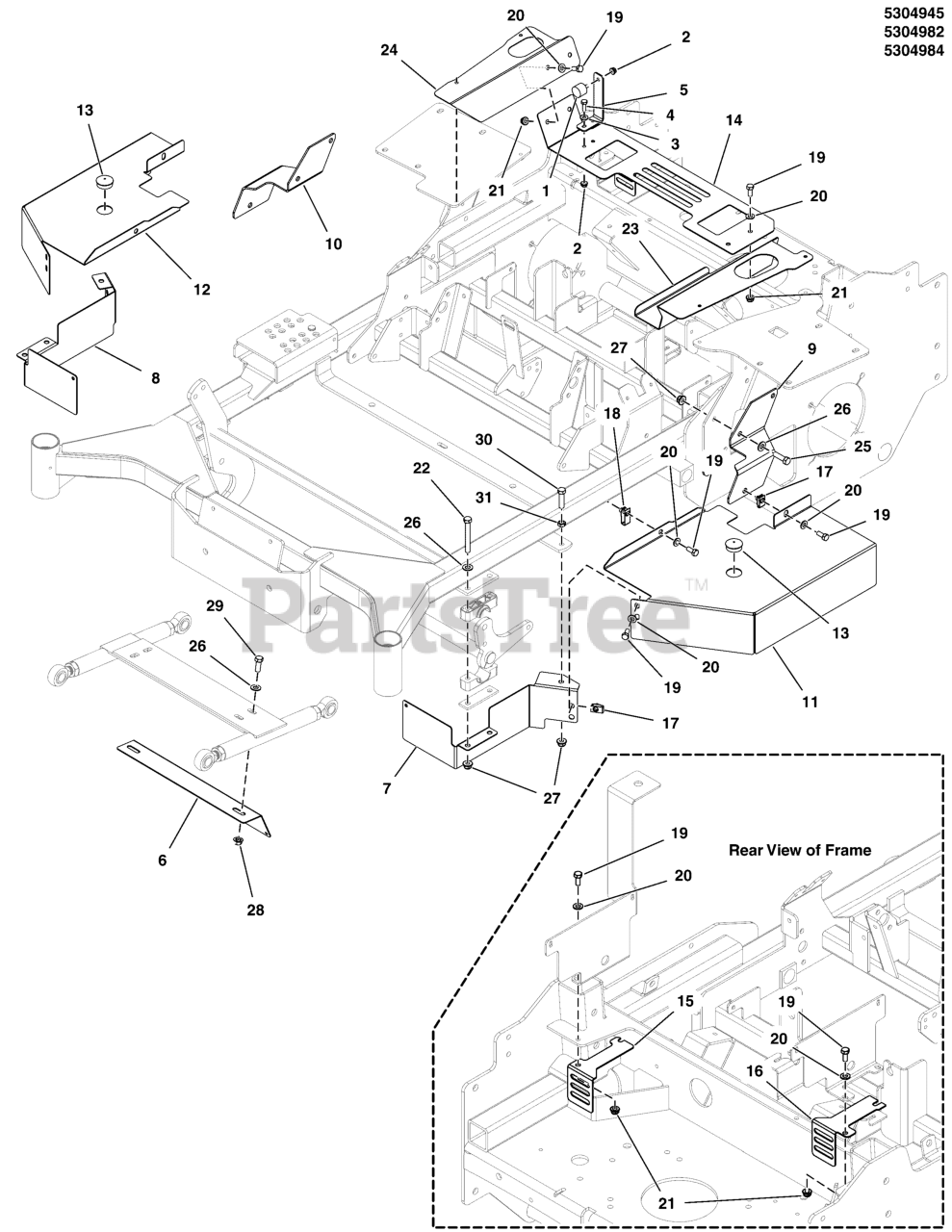

F 210Z (5901655) - Ferris F210Z Series 61" Zero-Turn Mower, 26hp Kawasaki CE Guarding - Zero-Turn Rider Guards Parts Diagram

F210Z Series 61" Zero-Turn Mower, 26hp Kawasaki

CE Guarding - Zero-Turn Rider Guards Parts Diagram

  • Title

1

Ferris 5022673

BUMPER, RUBBER 1/4-20
(Superseded to 5022673SM)

$18.99

$

In Stock, only 1 left!

0

2

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

3

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

4

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

5

Ferris 5416258A

PLATE, SEAT LOCK, CE - BLK

$

$

Currently unavailable

6

Ferris 5416261A

GUARD, PULLER BAR, CE - BLK

$

$

Currently unavailable

7

Ferris 5416264B

PLATE, GUARD MOUNT, LH FRONT - RED

$

$

Currently unavailable

8

Ferris 5416266B

PLATE, GUARD MOUNT, RH FRONT - RED

$

$

Currently unavailable

9

Ferris 5416265B

PLATE, GUARD MOUNT, LH REAR - RED

$

$

Currently unavailable

10

Ferris 5416267B

PLATE, GUARD MOUNT, RH REAR - RED

$

$

Currently unavailable

11

Ferris 5416268B

PLATE, DECK GUARD, UPPER, LH - RED

$

$

Currently unavailable

12

Ferris 5416269B

PLATE, DECK GUARD, UPPER, RH - RED

$

$

Currently unavailable

13

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

14

Ferris 5416277A

PLATE, SEAT GUARD, CE - BLK

$

$

Currently unavailable

15

Ferris 5416263A

PLATE, FAN GUARD, LH CE - BLK

$

$

Currently unavailable

16

Ferris 5416262A

PLATE, FAN GUARD, RH CE - BLK

$

$

Currently unavailable

17

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 12

0

18

Ferris 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

In Stock, only 1 left!

0

19

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 2 left!

0

23

Ferris 5416352A

GUARD, CE SEAT, LH - BLK

$

$

Currently unavailable

24

Ferris 5416351A

GUARD, CE SEAT, RH - BLK

$

$

Currently unavailable

25

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 10

0

26

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

28

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

29

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

30

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

31

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 13

0
