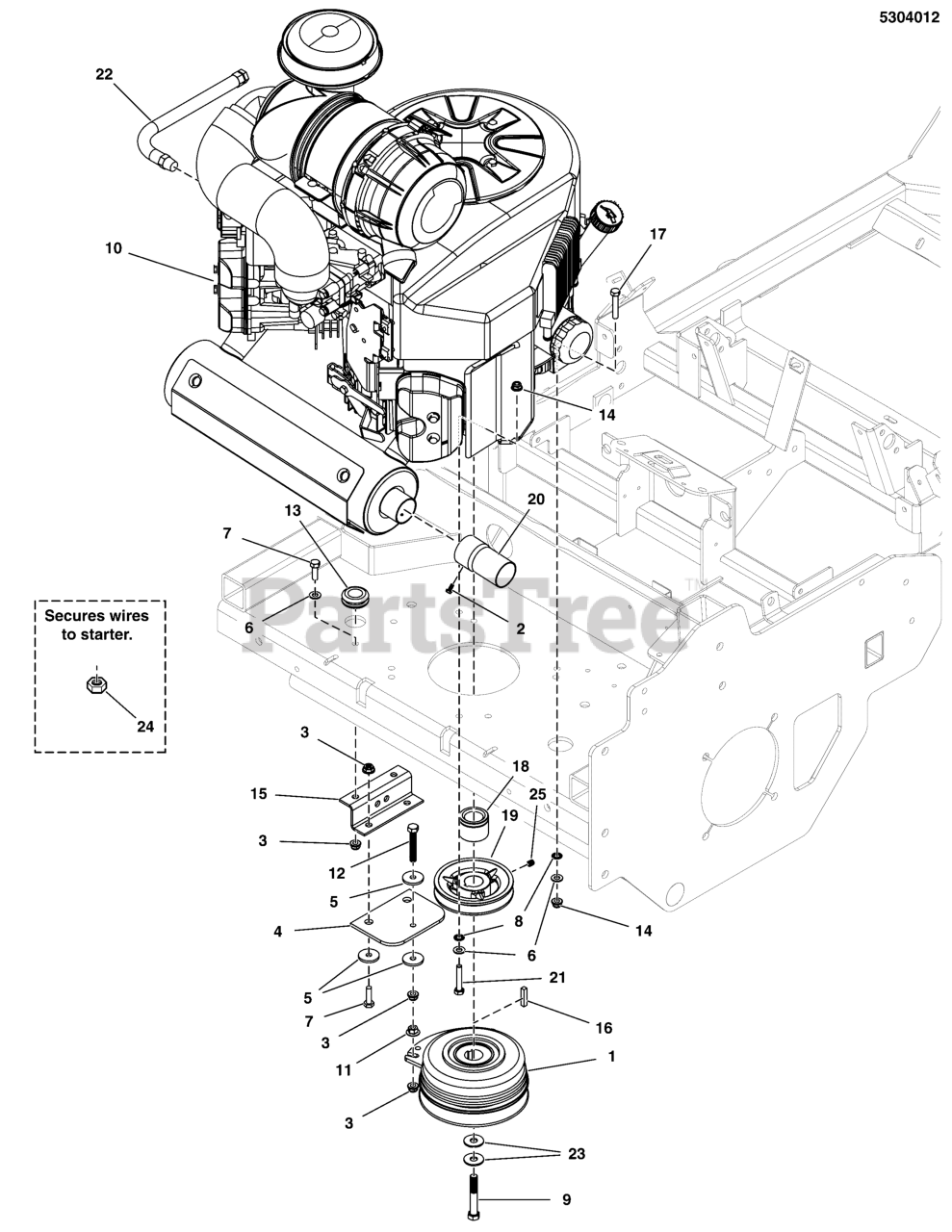

F 210Z (5901555) - Ferris F210Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton EFI Parts Diagram

F210Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton EFI Parts Diagram

  • Title

1

Ferris 5105090

CLUTCH, WARNER, 200 ft lbs - 1.13"
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

2

Ferris 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

In Stock, only 2 left!

0

3

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

5

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

6

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

8

Ferris 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8
(Superseded to 5102865YP)

Note: (Torque crankshaft bolt to 65 ft. lbs. (88 Nm))

$5.49

$

In Stock, only 2 left!

0

10

Ferris 49E877-0001-G1

ENGINE, 28HP BRIGGS VANGUARD, EFI

$

$

Not available

11

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

12

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

14

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0

15

Ferris 5414825A

ANCHOR, CLUTCH - BLK

$

$

Not available

16

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

17

Ferris 5025025X12

BOLT, 5/16-24 X 1-1/2, GD8, PHOS
(Superseded to 5025025X12YP)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5100926

SPACER, 1.13 X 1.75 X 1.35, CZ
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

19

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

20

Ferris 5104348

EXTENSION, TAILPIPE, 3", BLACK
(Superseded to 5104348YP)

$14.99

$

Usually ships in 2-12 days

0

21

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

23

Ferris 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

24

Ferris 5023216

NUT, 5/16-24 JAM
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

25

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL W/ PATCH
(Superseded to 5025531YP)

Note: (SV)

$3.49

$

In Stock, Qty 12

0
