F 210Z (5901535) - Ferris F210Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton, CARB Fuel Tank & Mount Group Parts Diagram

F210Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton, CARB

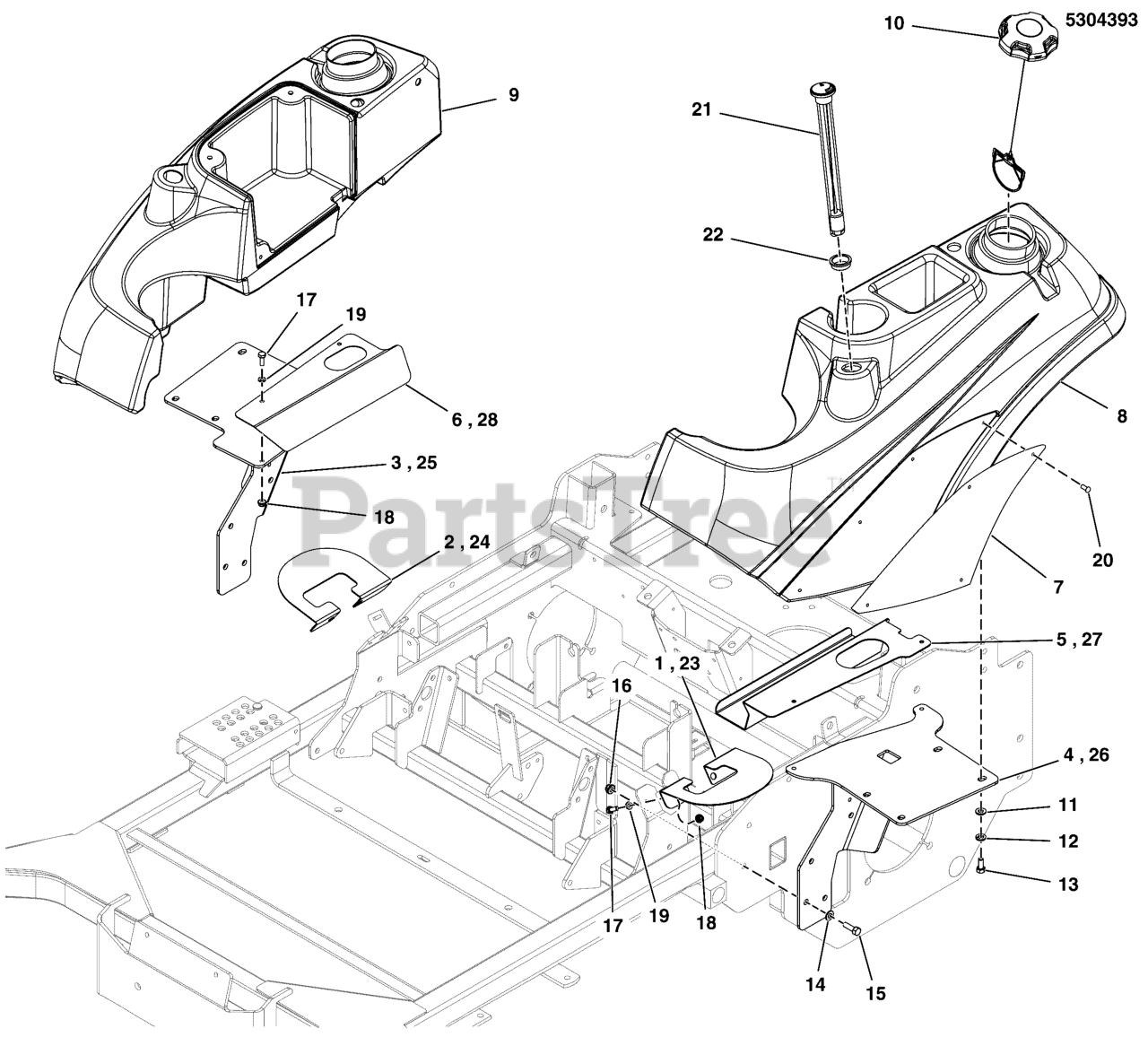

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5414811A

PLATE,MOTION CONTROL GUARD F320/210Z LH, BLK

Note: (S/N: 2017405978 & Above)

$

$

Currently unavailable

2

Ferris 5414810A

PLATE,MOTION CONTROL GUARD F320/210Z RH, BLK

Note: (S/N: 2017405978 & Above)

$

$

Currently unavailable

3

Ferris 5414902A

WELD, FUEL MOUNT, RH, F210Z - BLK

Note: (S/N: 2017405978 & Above)

$92.99

$

Usually ships in 2-12 days

0

4

Ferris 5414901A

WELD, FUEL MOUNT, LH, F210Z - BLK

Note: (S/N: 2017405978 & Above)

$101.99

$

Usually ships in 2-12 days

0

5

Ferris 5415045A

GUARD, SEAT, LH, F210Z - BLK

Note: (S/N: 2017405978 & Above)

$34.99

$

Usually ships in 2-12 days

0

6

Ferris 5415046A

GUARD, SEAT, RH, F210Z - BLK
(Superseded to 5415046AFS)

Note: (S/N: 2017405978 & Above)

$15.99

$

Usually ships in 2-12 days

0

7

Ferris 5401095B

BADGE, IS2000 - IS3000 - RED
(Superseded to 5401095BFS)

$49.99

$

In Stock, only 1 left!

0

8

Ferris 5103178

TANK, FUEL, LH
(Superseded to 5103178YP)

$652.99

$

Usually ships in 2-12 days

0

9

Ferris 5103177

TANK, FUEL, 5.25 GAL,MED, Z-RH, LOW PERM
(Superseded to 5103177YP)

$604.99

$

Usually ships in 2-12 days

0

10

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

11

Ferris 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

16

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

18

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

19

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

21

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

Note: (SV)

$48.99

$

Usually ships in 2-12 days

0

22

Ferris 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

Note: (SV)

$6.99

$

In Stock, only 3 left!

0

23

Ferris 5414705A

PLATE,MOTION CONTROL GUARD F210Z LH, BLK

Note: (S/N: 2017405977 & Below)

$

$

Currently unavailable

24

Ferris 5414704A

PLATE,MOTION CONTROL GUARD F210Z RH, BLK

Note: (S/N: 2017405977 & Below)

$

$

Currently unavailable

25

Ferris 5414671A

WELD, FUEL MOUNT, RH, F210Z - BLK

Note: (S/N: 2017405977 & Below)

$87.99

$

Usually ships in 2-12 days

0

26

Ferris 5414670A

WELD, FUEL MOUNT, LH, F210Z - BLK

Note: (S/N: 2017405977 & Below)

$101.99

$

Usually ships in 2-12 days

0

27

Ferris 5416058A

GUARD, SEAT, LH - BLK
(Superseded to 5416058AFS)

Note: (S/N: 2017405977 & Below)

$35.99

$

Usually ships in 2-12 days

0

28

Ferris 5415046A

GUARD, SEAT, RH - BLK
(Superseded to 5415046AFS)

Note: (S/N: 2017405977 & Below)

$15.99

$

Usually ships in 2-12 days

0
