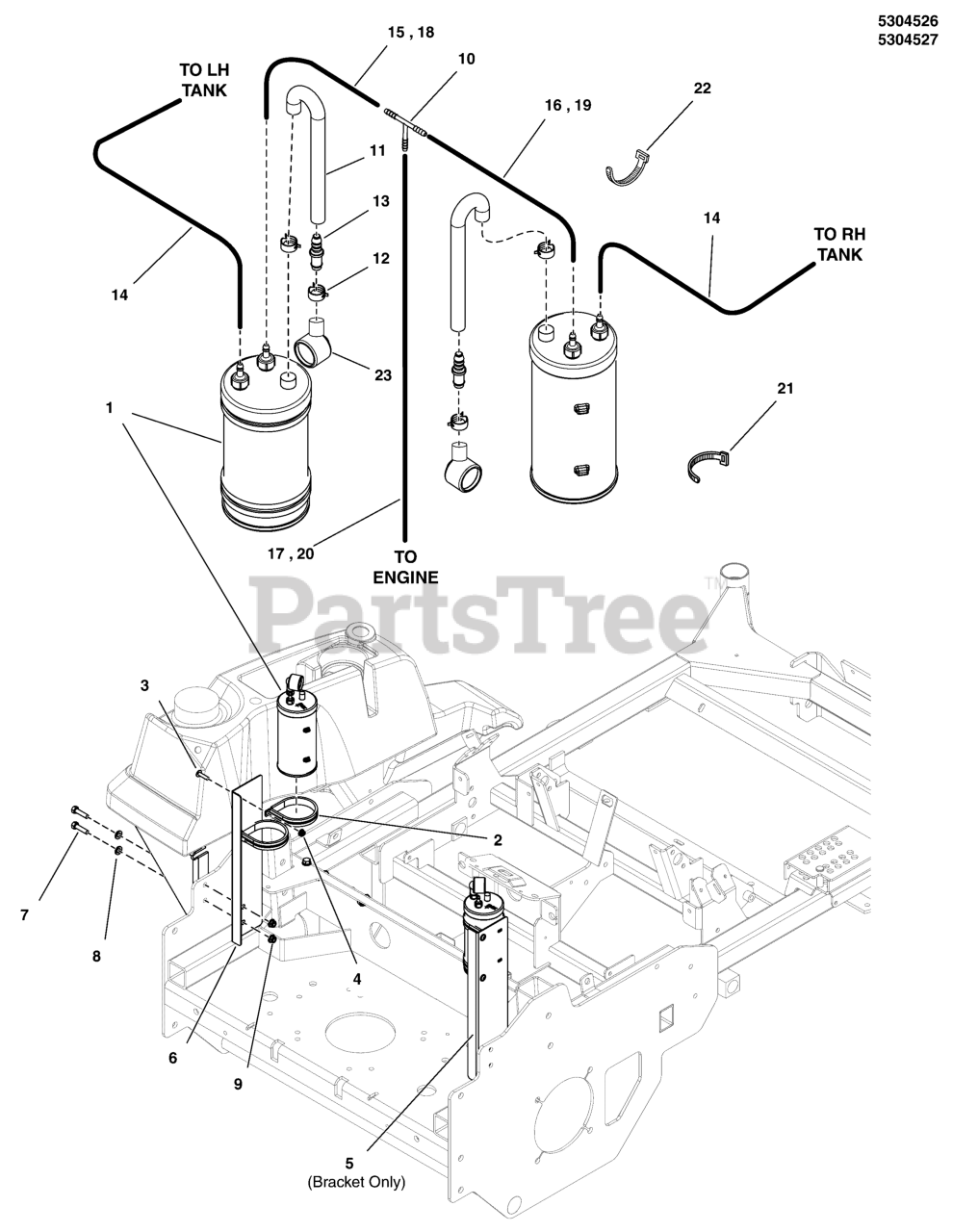

F 210Z (5901534) - Ferris F210Z Series 61" Zero-Turn Mower, 26hp Kawasaki, CARB Evap Canister Group - CAL Models Parts Diagram

F210Z Series 61" Zero-Turn Mower, 26hp Kawasaki, CARB

Evap Canister Group - CAL Models Parts Diagram

  • Title

1

Ferris 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$217.99

$

Usually ships in 2-12 days

0

2

Ferris 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

3

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

5

Ferris 5413350A

PLATE, CARB CAN, S200XT, RH - BLK

$

$

Currently unavailable

6

Ferris 5413351A

PLATE, CARB CAN, S200XT, LH - BLK

$

$

Currently unavailable

7

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

In Stock, only 2 left!

0

11

Ferris 5103092

HOSE, FORMED, EVAP CANISTER
(Superseded to 5103092YP)

$33.99

$

In Stock, only 3 left!

0

12

Ferris 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5103080

FITTING, STRAIGHT, 10MMX10MM, PLASTIC
(Superseded to 5103080YP)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 7700552X10

HOSE, VAPOR, 5MM ID, 10.00 LG

$

$

Currently unavailable

15

Ferris 7700552X50P5

HOSE, VAPOR, 5MM ID, 50.50 LG

Note: (Briggs & Stratton Engines)

$

$

Currently unavailable

16

Ferris 7700552X29

HOSE, VAPOR, 5MM ID, 29.00 LG
(Superseded to 7700552X29YP)

Note: (Briggs & Stratton Engines)

$7.49

$

In Stock, only 2 left!

0

17

Ferris 7700552X9

HOSE, VAPOR, 5MM ID, 9.00 LG

Note: (Briggs & Stratton Engines)

$

$

Currently unavailable

18

Ferris 7700552X18P5

HOSE, VAPOR, 5MM ID, 18.50 LG

Note: (Kawasaki Engines)

$

$

Currently unavailable

19

Ferris 7700552X47

HOSE, VAPOR, 5MM ID, 47.00 LG

Note: (Kawasaki Engines)

$

$

Currently unavailable

20

Ferris 7700552X24

HOSE, VAPOR, 5MM ID, 24.00 LG
(Superseded to 7700552X24FS)

Note: (Kawasaki Engines)

$7.99

$

Usually ships in 2-12 days

0

21

Ferris 5100772

TIE, SELF-LOCKING, 15"

$

$

Currently unavailable

22

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

23

Ferris 1752800

DUST FILTER, CANISTER
(Superseded to 1752800YP)

Note: (SV)

$15.99

$

In Stock, only 1 left!

0
