F 21 - Shindaiwa String Trimmer Piston, Crankshaft Parts Diagram

String Trimmer

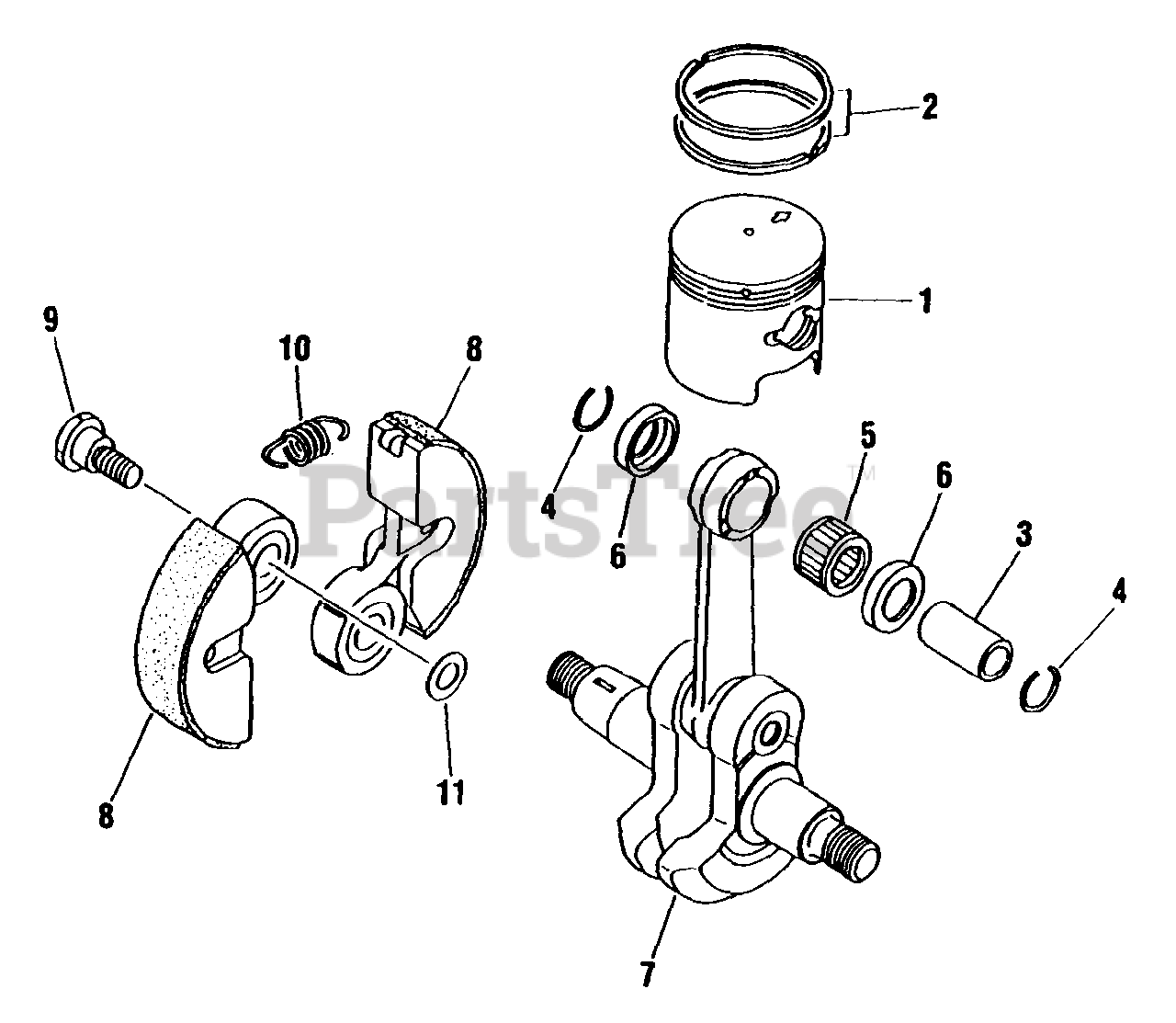

Piston, Crankshaft Parts Diagram

  • Title

Echo 99909-96

PISTON ASSY
(Superseded to 99909-104)

$

$

Not available

1

Echo 20035-41110

PISTON

$28.99

$

Usually ships in 2-4 days

0

2

Echo 20035-41210

RING, PISTON
(Superseded to A101000230)

$4.49

$

In Stock, Qty 6

0

3

Echo 20035-41311

PIN, PISTON
(Superseded to V606000040)

$3.99

$

Usually ships in 2-4 days

0

4

Echo 70030-41320

RING, RETAINING
(Superseded to V580000070)

$0.99

$

In Stock, Qty 9

0

5

Echo 70030-41330

BEARING, NEEDLE
(Superseded to 37013-41230)

$6.49

$

Usually ships in 2-4 days

0

6

Echo 70030-41340

WASHER, THRUST
(Superseded to 37013-41240)

$2.49

$

Usually ships in 2-4 days

0

Echo 20035-12120

GASKET, CYLINDER
(Superseded to V100000390)

Note: See "Cylinder" illustration and parts list, ITEM 2

$0.99

$

In Stock, only 4 left!

0

7

Echo 70097-42002

CRANKSHAFT ASSY

$

$

Currently unavailable

Echo 70000-51103

CLUTCH ASSY
(Superseded to 70000-51104)

$32.99

$

In Stock, Qty 20+

0

8

SHOE, CLUTCH

Note: Order 70000-51103

$

$

Not available

9

Echo 20000-51212

BOLT, CLUTCH
(Superseded to A557000070)

$1.49

$

Usually ships in 2-4 days

0

10

Echo 70000-51220

SPRING, CLUTCH
(Superseded to A566000070)

$2.49

$

Usually ships in 2-4 days

0

11

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0
