F 21 - Shindaiwa String Trimmer Ignition Parts Diagram

String Trimmer

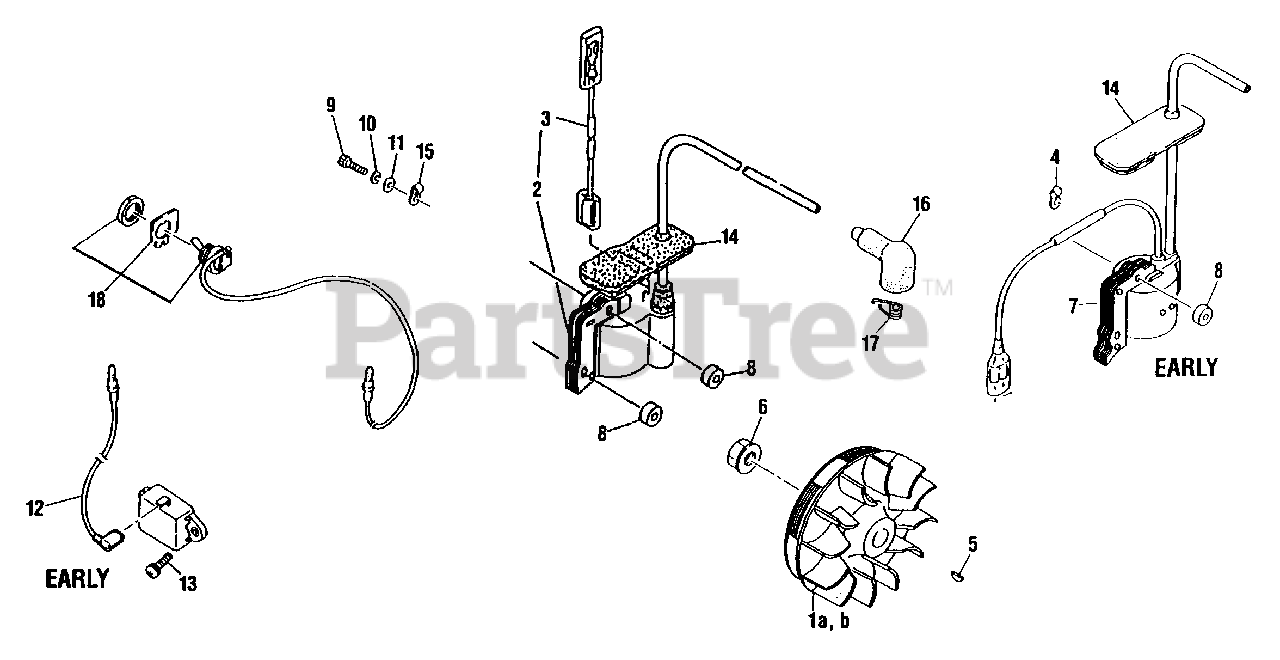

Ignition Parts Diagram

  • Title

1A

Echo 20077-71200

FLYWHEEL

Note: Pr 86

$57.99

$

Usually ships in 2-4 days

0

1B

Echo 20035-71200

ROTOR ASSY
(Superseded to 20077-71200)

Note: Early

$57.99

$

Usually ships in 2-4 days

0

Echo 20077-71600

IGNITION COIL ASSY
(Superseded to A411000690)

Note: Pr 86

$

$

Not available

2

Echo 20077-71610

COIL
(Superseded to A411000880)

$50.99

$

Usually ships in 2-4 days

0

3

Echo 20077-71640

LEAD - IGNITION

$2.99

$

Usually ships in 2-4 days

0

4

Echo 20077-72130

CLAMP
(Superseded to V490000550)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 22100-43210

KEY - 3X10
(Superseded to 12408-03100)

$1.99

$

In Stock, only 2 left!

0

6

Echo 20035-71220

NUT - 8
(Superseded to V265000140)

$0.99

$

In Stock, Qty 8

0

7

Echo 70030-71610

COIL, IGNITION

Note: Early

$

$

Currently unavailable

8

Echo 70030-71620

INSULATOR
(Superseded to V322000040)

$0.99

$

In Stock, only 3 left!

0

9

Echo 01020-04260

SCREW - 4X26
(Superseded to Discontinued)

$

$

Not available

10

Echo 01600-04101

LOCKWASHER - 4
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

11

Echo 20010-71650

WASHER
(Superseded to V302000010)

$0.99

$

In Stock, Qty 6

0

Echo 20035-71700

UNIT ASSY
(Superseded to Discontinued)

Note: Early

$

$

Not available

12

Echo 20035-71720

WIRE
(Superseded to Discontinued)

$

$

Not available

13

Echo 11207-04120

SCREW - 4X12
(Superseded to 11238-04120)

$0.99

$

In Stock, Qty 12

0

14

Echo 20040-72110

GROMMET
(Superseded to V135000060)

$2.49

$

Usually ships in 2-4 days

0

15

Echo 20077-72130

CLAMP
(Superseded to V490000550)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 22102-72220

CAP, SPARK PLUG
(Superseded to A427000100)

$2.49

$

In Stock, Qty 19

0

17

Echo 20000-72230

TERMINAL, SPARK PLUG CAP
(Superseded to A426000050)

$1.49

$

In Stock, Qty 8

0

18

Echo 70036-31510

SWITCH
(Superseded to Discontinued)

$

$

Not available
