F 2040 (UT-20791) - Homelite String Trimmer Muffler - Air Cleaner Parts Diagram

String Trimmer

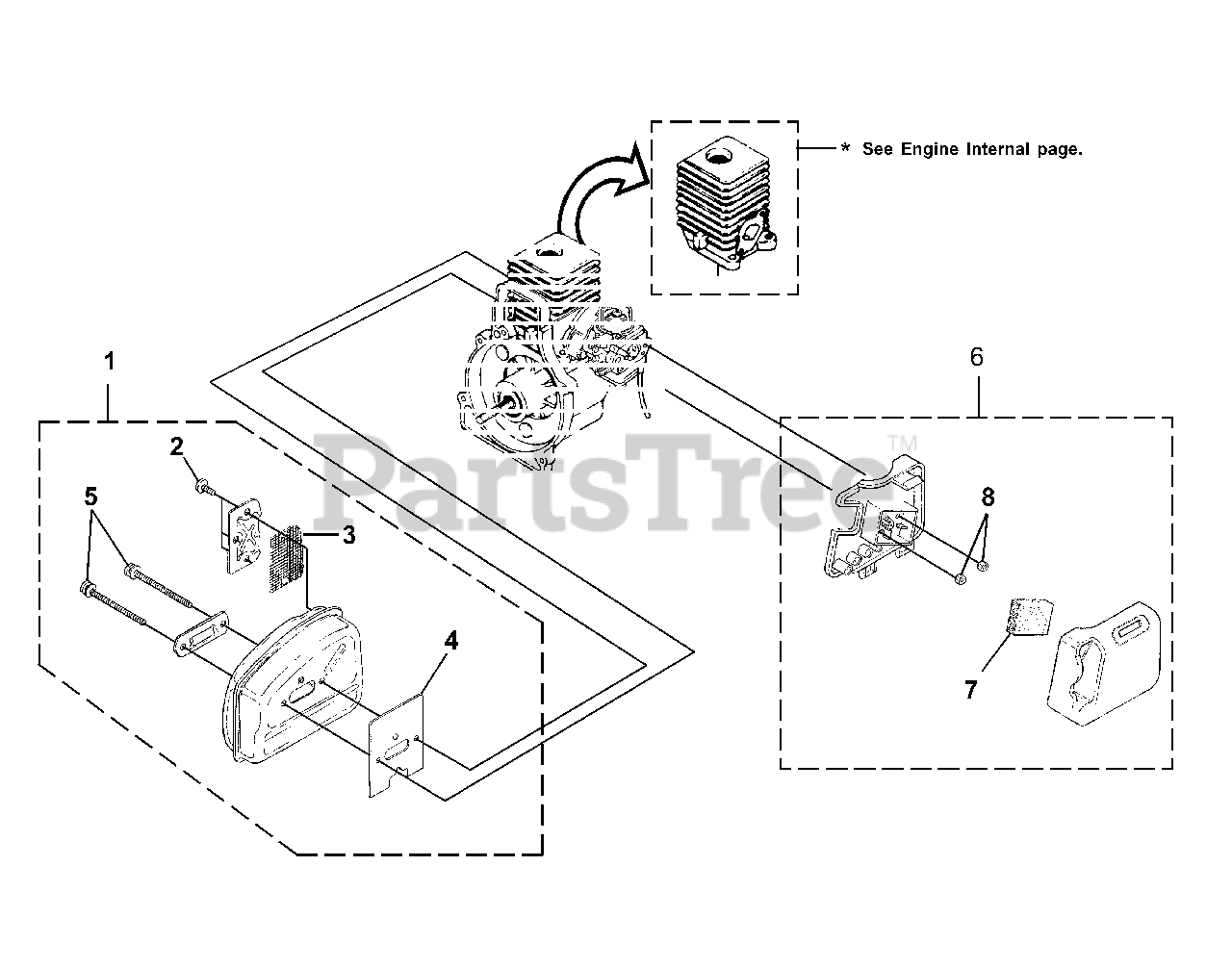

Muffler - Air Cleaner Parts Diagram

  • Title

1

Homelite UP04634

MUFFLER ASSY.
(Superseded to PA01073)

Note: Includes items 2-5

$35.99

$

Usually ships in 3-7 days

0

2

Homelite UP04248

SCREW, Taptite- (8-32 X 3/8")
(Superseded to 82600)

Note: Torque Specs 25-35 In/Lbs; 2.8-4.0 Nm

$1.49

$

Usually ships in 3-7 days

0

3

Homelite UP04629

SCREEN-Spark
(Superseded to 06502)

$

$

Not available

4

Homelite UP04710

GASKET-Muffler
(Superseded to 09343)

$

$

Not available

5

Homelite 88083

SCREW, Truss Hd. - (10-24 X 2.188)
(Superseded to PS03999)

Note: Torque Specs 50-60 In/Lbs; 5.6-6.8 Nm

$

$

Not available

6

Homelite UP05084

AIR FILTER KIT
(Superseded to UP05084A)

Note: Includes items 7-8

$

$

Not available

7

Homelite D98760B

FILTER-AIR
(Superseded to 98760)

$

$

Not available

8

Homelite UP03885

NUT-Hex (10-24)
(Superseded to 81208)

Note: Torque Specs 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available
