F 2020 (UT-20789) - Homelite String Trimmer Ignition - Rotor - Starter Parts Diagram

String Trimmer

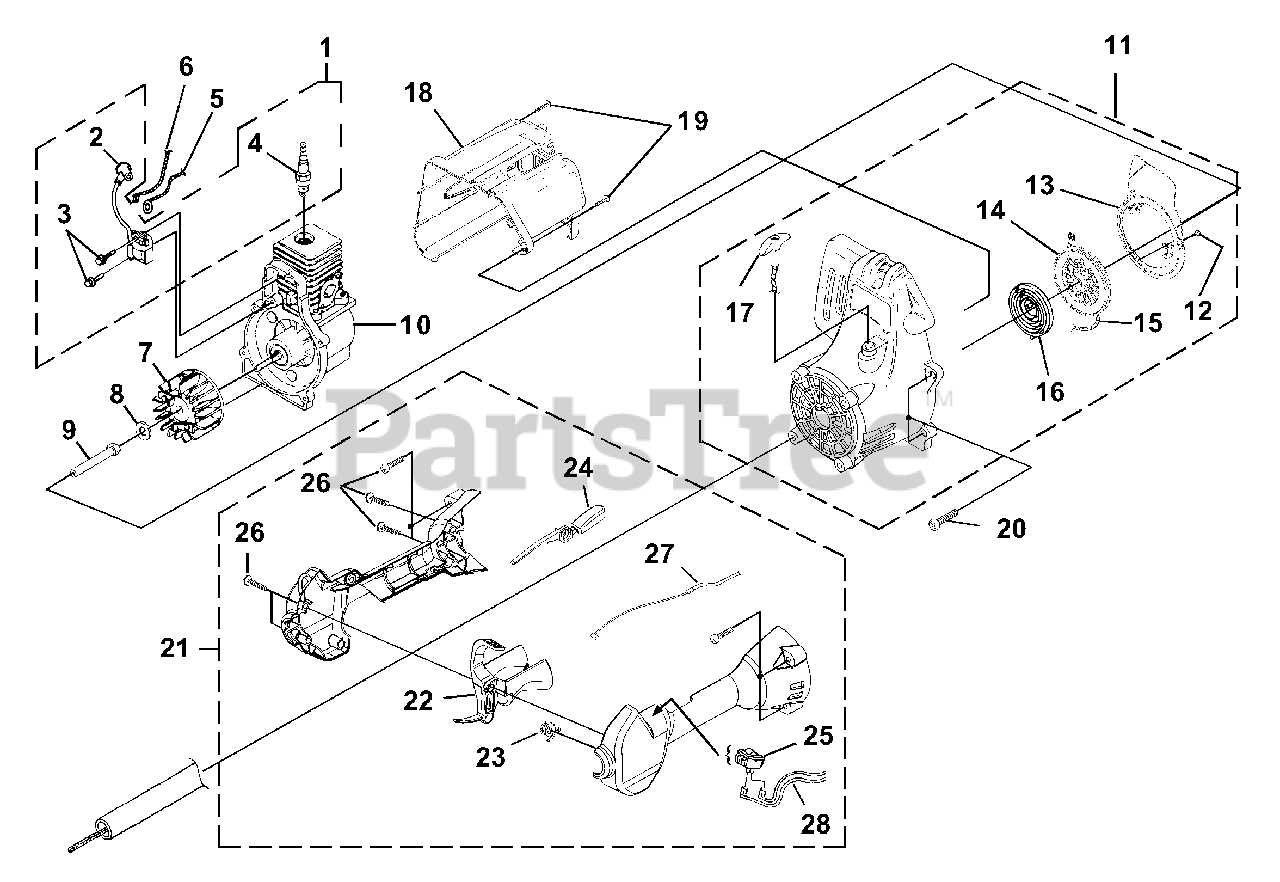

Ignition - Rotor - Starter Parts Diagram

  • Title

1

Homelite UP03858

IGNITION KIT
(Superseded to 984873001)

Note: Includes items 2-4

$

$

Not available

2

Homelite UP03868

TERMINAL & COVER
(Superseded to A33055)

$

$

Not available

3

Homelite UP03896

SCREW-Taptite (8-32 X 1")
(Superseded to 82540)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm. Required Loctite Blue 242

$2.49

$

Usually ships in 3-7 days

0

4

Homelite UP03883

SPARK PLUG (RDJ-7Y

Note: Torque Specs 120-180 In/Lbs, 13.6-20.3 Nm.

$3.49

$

In Stock, only 3 left!

0

5

Homelite A06964

LEAD-Electrical

$

$

Not available

6

Homelite A06963

LEAD-Electrical

$3.99

$

Usually ships in 3-7 days

0

7

Homelite UP03009

ROTOR KIT

$

$

Currently unavailable

8

Homelite UP04241

WASHER-Flat
(Superseded to PS84065)

$

$

Not available

9

Homelite 98795A

CONNECTOR AND DRUM

$

$

Not available

10

Homelite UP03116

SHORT BLOCK
(Superseded to UP03116A)

Note: (See "Engine Internal" illustration and parts list)

$

$

Not available

11

Homelite UP00014

STARTER ASSEMBLY

Note: Includes items 12-17

$

$

Not available

Homelite UP05132

STARTER ASSEMBLY (B25C)

Note: Includes items 12-17

$

$

Currently unavailable

12

Homelite 82543

SCREW-Thread Form (8-16 X 1/2")

Note: Torque Specs 10-20 In/Lbs, 1.1-2.3 Nm.

$

$

Not available

13

Homelite UP03013

BAFFLE-Air
(Superseded to PS00326)

$2.49

$

In Stock, only 1 left!

0

14

Homelite UP04349

PULLEY-Starter
(Superseded to 98770A)

$3.99

$

Usually ships in 3-7 days

0

15

Homelite UP03912

ROPE-Starter (42")
(Superseded to 900849002)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite UP03917

SPRING & CONTAINER
(Superseded to A98773A)

$5.49

$

In Stock, only 4 left!

0

17

Homelite UP04276

GRIP-Starter (Yellow)
(Superseded to PS00179)

$

$

Not available

18

Homelite UP03518

HOUSING-Rear Kit

Note: Includes item 19

$

$

Currently unavailable

19

Homelite UP03900

SCREW-Plastite (10-14 X 3/4")
(Superseded to 82563)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$1.99

$

In Stock, Qty 6

0

20

Homelite UP03406

SCREW-Taptite (10-24 X 3/4")
(Superseded to 82538)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$1.99

$

Usually ships in 3-7 days

0

21

Homelite UP03114

CONTROL HANDLE ASSY.
(Superseded to UP03114A)

Note: Includes items 22-28

$

$

Not available

22

Homelite UP03207

TRIGGER-Throttle
(Superseded to UP03207A)

Note: Includes item 23

$5.99

$

Usually ships in 3-7 days

0

23

Homelite UP03210

SPRING
(Superseded to PS01718)

$2.49

$

In Stock, only 2 left!

0

24

Homelite UP03173

THROTTLE INTERLOCK
(Superseded to PS01128)

$11.99

$

Usually ships in 3-7 days

0

25

Homelite UP04197

SWITCH
(Superseded to PS02369)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite UP04247

SCREW-Taptite (10-14 X 1")
(Superseded to 82589)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$2.99

$

In Stock, Qty 7

0

27

Homelite UP03172

CABLE-Throttle
(Superseded to PS01177)

$1.49

$

In Stock, only 1 left!

0

28

Homelite UP03174

LEAD-Electrical
(Superseded to PA00387)

$6.99

$

Usually ships in 3-7 days

0
