F 200XT (5901241) - Ferris F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Rear Bumper & ROPS Group Parts Diagram

F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

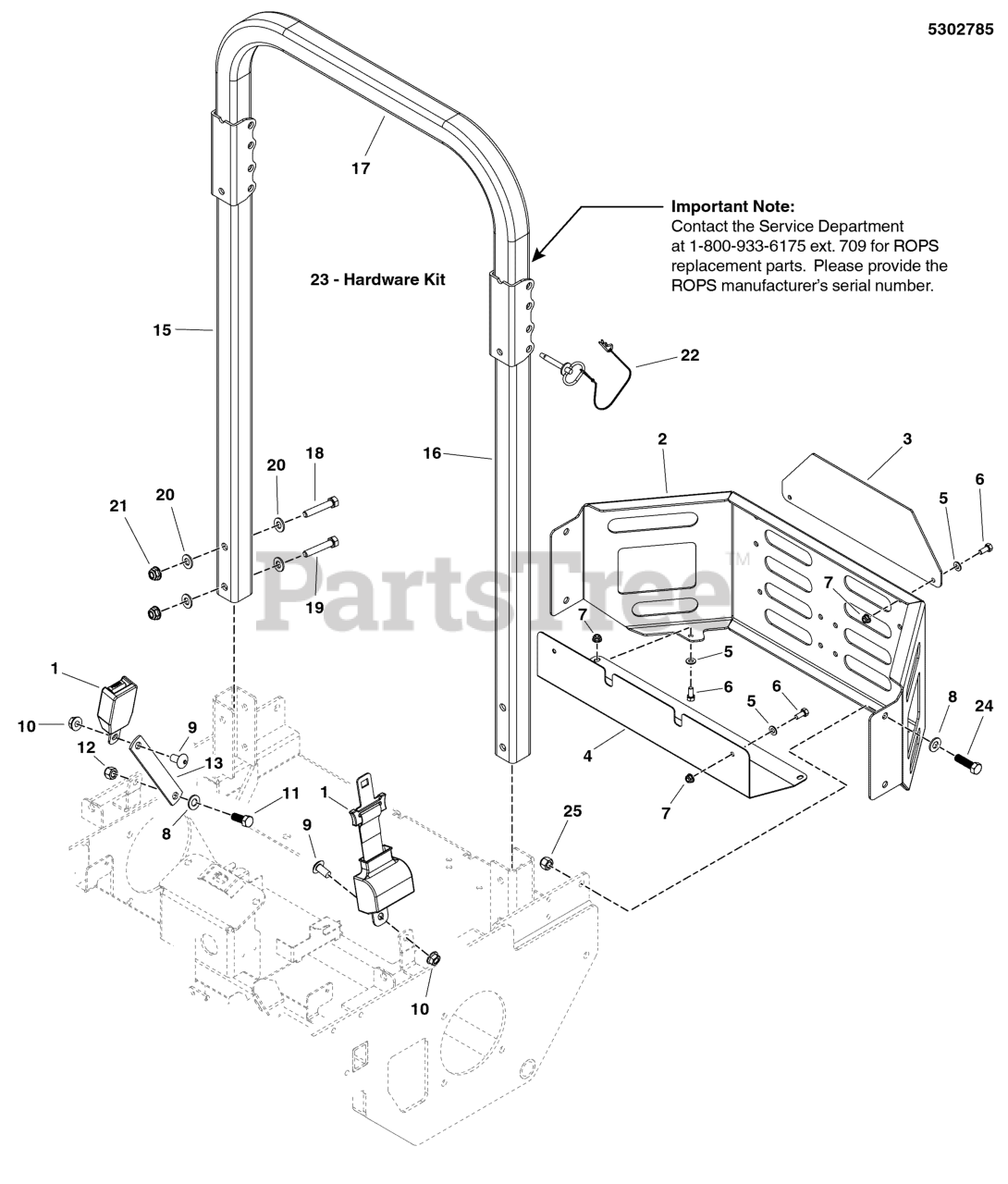

Rear Bumper & ROPS Group Parts Diagram

  • Title

1

Ferris 5100139

SEAT BELT, RETRACTING - ASSM
(Superseded to 5100139SM)

$103.99

$

Usually ships in 2-12 days

0

2a

Ferris 5408536B

WELD, BUMPER, REAR

Note: (S/N: 2015287160 & Above)

$

$

Currently unavailable

2b

Ferris 5405336B

WELD, BUMPER, REAR

Note: (S/N: 2015287159 & Below)

$

$

Currently unavailable

3

Ferris 5402760B

PLATE, REAR BUMPER, 61 SNP - SNP RED

$

$

Currently unavailable

4a

Ferris 5408526A

PLATE, HEAT SHIELD
(Superseded to 5408526AAFS)

Note: (S/N: 2015287160 & Above)

$79.99

$

Usually ships in 2-12 days

0

4b

Ferris 5402772B

PLATE, HEAT SHIELD

Note: (S/N: 2015287159 & Below)

$

$

Currently unavailable

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

9

Ferris 5100267

SCREW, 1/2-13 X 1.00, SHCS
(Superseded to 5100267SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

11

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

13

Ferris 5410295A

PLATE, SEAT BELT ANCHOR - BLK
(Superseded to 5410295AYP)

$7.49

$

Usually ships in 2-12 days

0

14

ROPS (Call 1-800-933-6175 ext. 2193 if replacing a ROPS)

$

$

Not available

15

ROLL BAR POST, RH (SV)

$

$

Not available

16

ROLL BAR POST, LH (SV)

$

$

Not available

17

ROLL BAR TOP LOOP (SV)

$

$

Not available

18

Ferris 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

19

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

20

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

21

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

22

Ferris 5100013

PIN, HITCH, .50 X 3.25 W/ LAY (SV)
(Superseded to 5100013SM)

$35.99

$

Usually ships in 2-12 days

0

23

Ferris 5101110X1

HARDWARE KIT, ROPS (SV)

Note: (S/N: 2016950122 & Below)

$

$

Currently unavailable

23

Ferris 5103921X1

HARDWARE KIT, ROPS (SV)

Note: (S/N: 2016950123 & Above)

$124.99

$

Usually ships in 2-12 days

0

24

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0
