F 200XT (5901241) - Ferris F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Main Frame & Front Casters Group Parts Diagram

F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

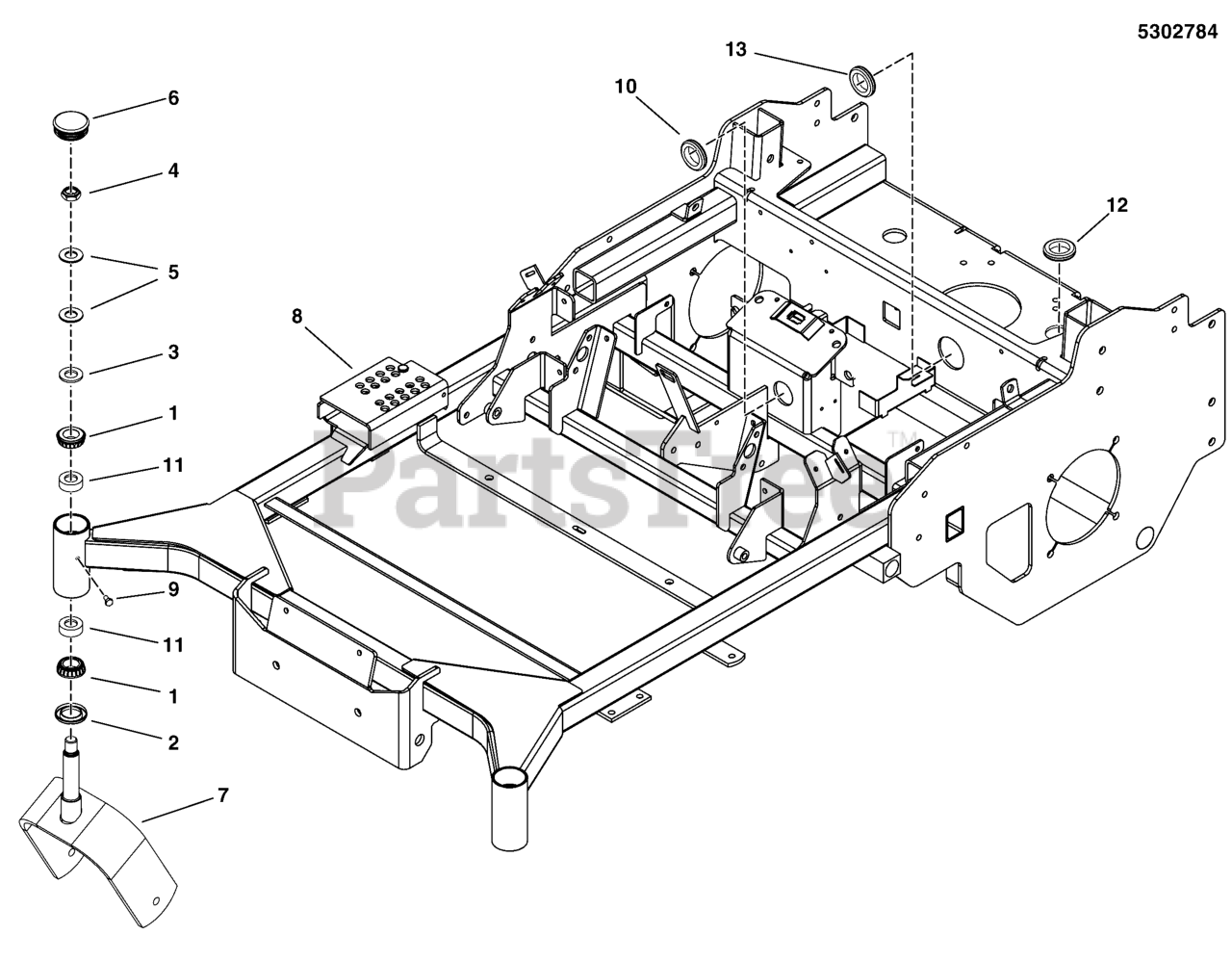

Main Frame & Front Casters Group Parts Diagram

  • Title

1

Ferris 5020884

BEARING, TAPERED ROLLER
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

2

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 8

0

3

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, only 1 left!

0

4

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

6

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

7

Ferris 5411934B

WELD, CASTER YOKE - RED
(Superseded to 5419196BFS)

$198.99

$

Usually ships in 2-12 days

0

8

Ferris 5411104B

WELD, FRAME, 200XT-61" - RED

Note: (S/N: 2016950123 & Above)

$

$

Currently unavailable

8

Ferris 5411124B

WELD, MAIN FRAME, 200XT-61" - RED

Note: (S/N: 2016518420 - 2016950122)

$

$

Currently unavailable

8

Ferris 5407073B

WELD, MAIN FRAME, S200XT

Note: (S/N: 2016518419 & Below)

$

$

Currently unavailable

9

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

11

Ferris 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

12

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

13

Ferris 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

Note: (S/N: 2016850123 & Above)

$5.49

$

Usually ships in 2-12 days

0
