F 200XT (5900516) - Ferris F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Instrument Control Panel Parts Diagram

F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

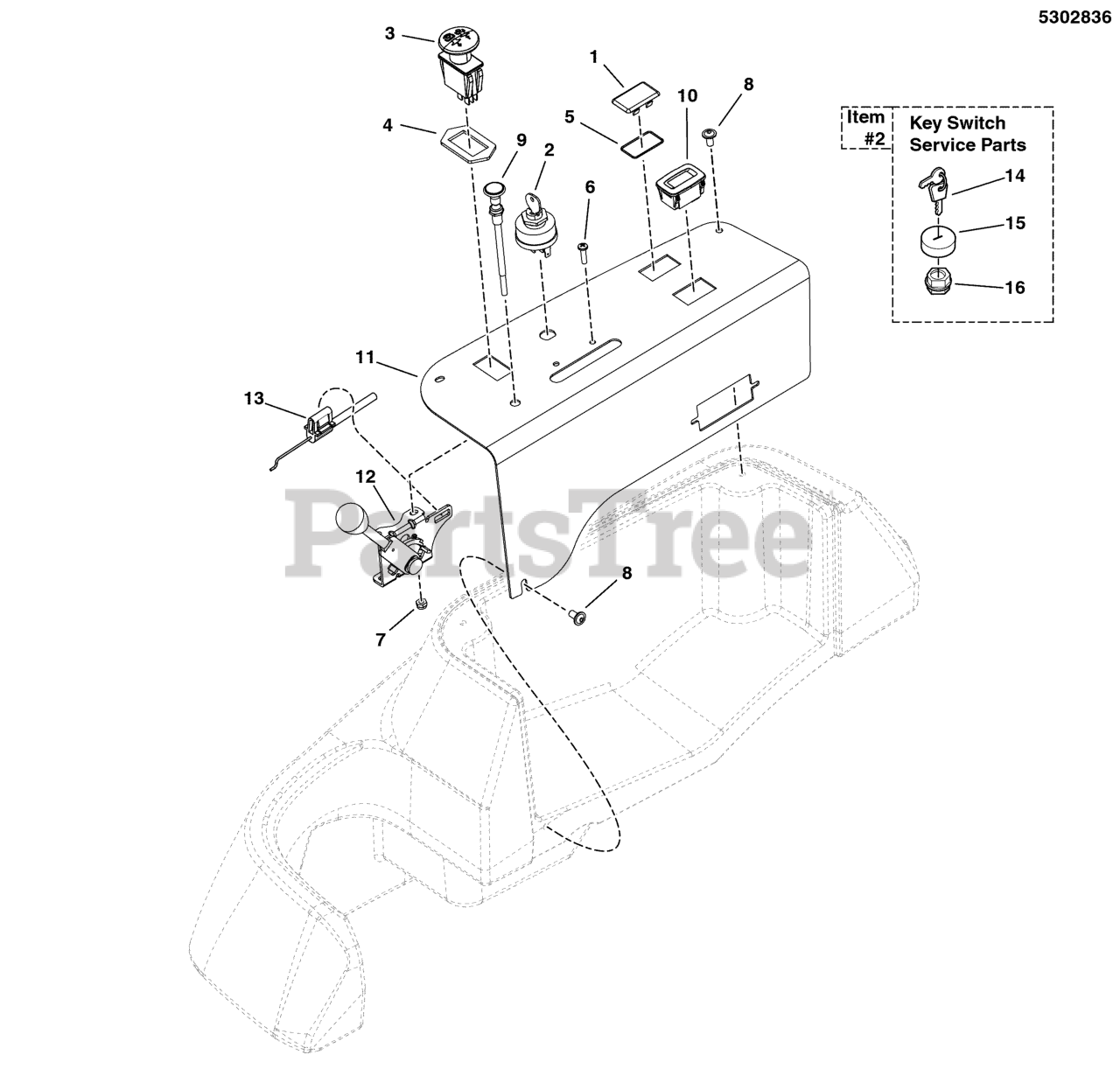

Instrument Control Panel Parts Diagram

  • Title
1

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

2

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

3

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

4

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

5

Ferris 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

9

Ferris 5046501

CABLE, CHOKE CONTROL, 47
(Superseded to 5046501SM)

$55.99

$

In Stock, only 1 left!

0

10

HOUR METER, ASSEMBLE

Note: (S/N: 2015551938 & Above)

$

$

Not available

10

Ferris 5102417

HOUR METER

Note: (S/N: 2015551937 & Below)

$64.99

$

Usually ships in 2-12 days

0

11

Ferris 5403402A

PLATE, CONTROL PANEL - BLK

Note: (S/N: 2016950122 & Below)

$

$

Currently unavailable

11

Ferris 5410303A

PLATE, CONTROL PANEL, IS600Z
(Superseded to 5410303AYP)

Note: (S/N: 2016950123 & Above)

$68.99

$

Usually ships in 2-12 days

0

12

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

In Stock, only 1 left!

0

13

Ferris 5101073

CABLE, THROTTLE, 42"
(Superseded to 5101073SM)

$33.99

$

In Stock, only 2 left!

0

14

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

15

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

16

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0
