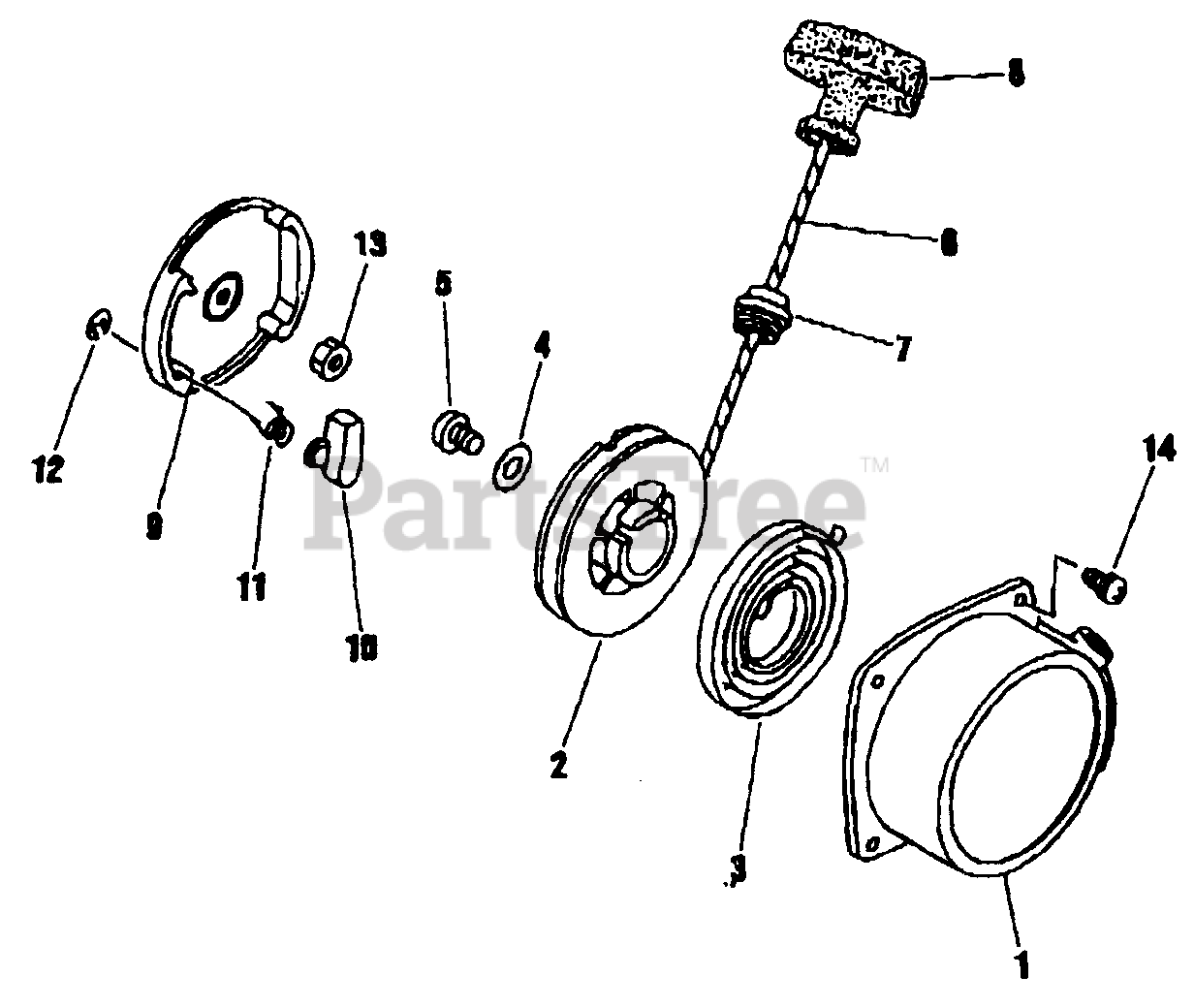

F 20 - Shindaiwa String Trimmer Starter Parts Diagram

String Trimmer

Starter Parts Diagram

  • Title

Echo 70030-75100

STARTER SUB ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 70030-75110

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

2

Echo 70030-75120

REEL, ROPE
(Superseded to A506000330)

$8.99

$

In Stock, Qty 14

0

3

Echo 70030-75130

SPRING, REWIND
(Superseded to A504000100)

$9.99

$

In Stock, Qty 13

0

4

Echo 70030-75140

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

5

Echo 70030-75150

SCREW
(Superseded to Discontinued)

$

$

Not available

6

Echo 70030-75180

ROPE, STARTER

$

$

Currently unavailable

7

Echo 70030-75170

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

8

Echo 20000-75190

GRIP, STARTER
(Superseded to A511000180)

$5.49

$

Usually ships in 2-4 days

0

Echo 70030-75200

PULLEY SUB ASSY
(Superseded to Discontinued)

$

$

Not available

9

PULLEY

Note: Order P/N 70030-75200

$

$

Not available

10

Echo 70030-75220

RATCHET
(Superseded to A514000180)

$4.49

$

In Stock, only 1 left!

0

11

Echo 70030-75290

SPRING, RETURN

$

$

Currently unavailable

12

Echo 70030-75240

RING, RETAINING
(Superseded to V583000190)

$0.99

$

In Stock, Qty 6

0

13

Echo 20035-43230

NUT
(Superseded to V265000160)

$0.99

$

In Stock, only 2 left!

0

14

Echo 01213-04120

SCREW - 4X12
(Superseded to 9156404012)

$0.99

$

Usually ships in 2-4 days

0
