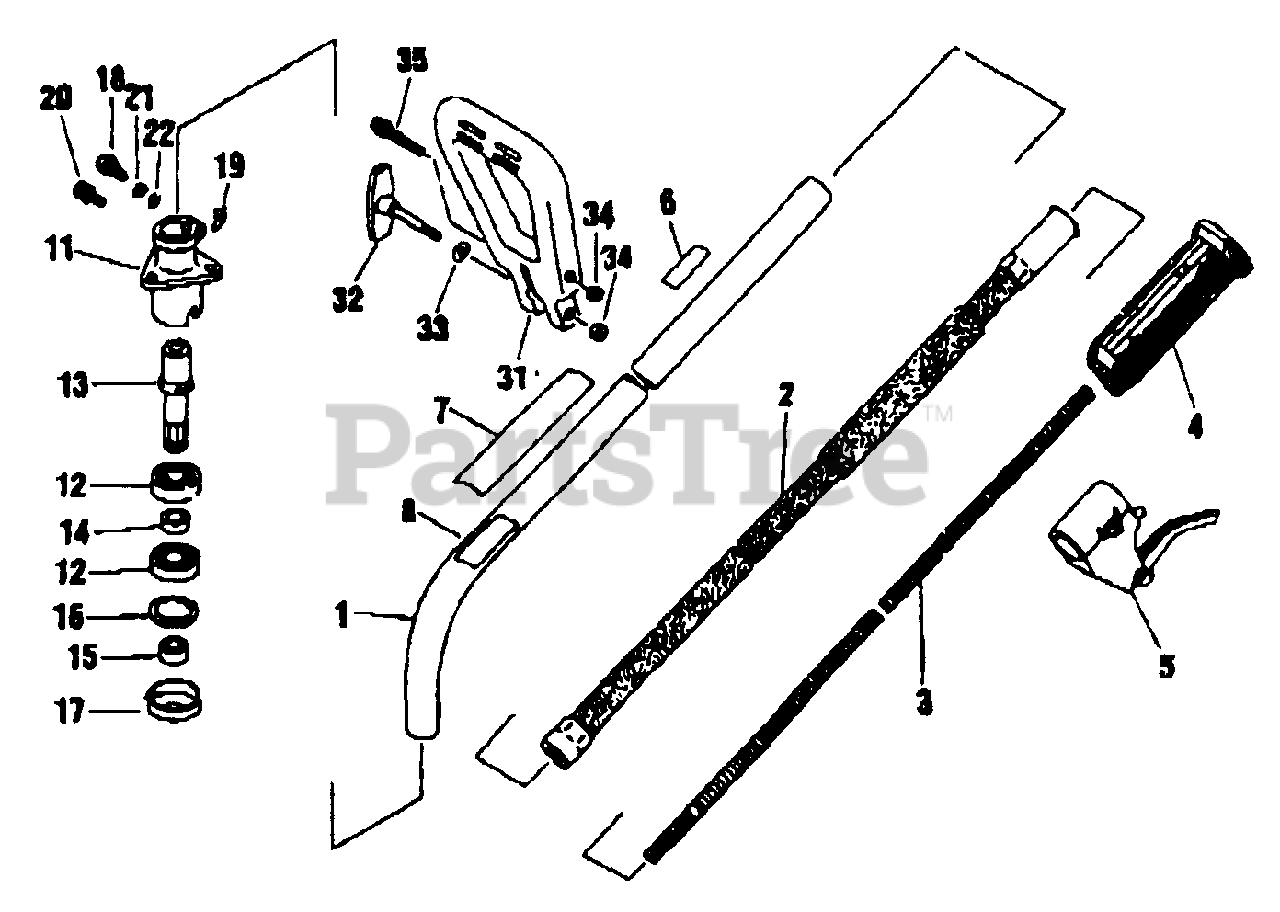

F 20 - Shindaiwa String Trimmer Outer Tube Parts Diagram

String Trimmer

Outer Tube Parts Diagram

  • Title

Echo 72030-12001

MAIN PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 72030-12111

PIPE, MAIN
(Superseded to Discontinued)

$

$

Not available

2

Echo 72030-12120

LINER - FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

3

Echo 72030-12410

DRIVESHAFT - FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

4

Echo 72030-12131

GRIP
(Superseded to Discontinued)

$

$

Not available

5

Echo 72030-12310

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

6

Echo 72017-12150

LABEL - ALIGNMENT
(Superseded to X524002380)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 72005-12510

LABEL - MODEL
(Superseded to 19420-00028)

$

$

Not available

8

Echo 19402-00024

LABEL - CAUTION
(Superseded to X505003200)

$0.99

$

In Stock, only 1 left!

0

Echo 72030-13101

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

11

Echo 72030-13111

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

12

Echo 02006-06001

BEARING, BALL - 6001DDU
(Superseded to 90080206001)

$9.99

$

In Stock, only 4 left!

0

13

Echo 72030-13120

SHAFT
(Superseded to Discontinued)

$

$

Not available

14

Echo 72030-13130

SPACER - UPPER
(Superseded to V357000170)

$1.99

$

Usually ships in 2-4 days

0

15

Echo 72030-13140

SPACER - LOWER
(Superseded to V357000180)

$1.99

$

In Stock, Qty 12

0

16

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.49

$

In Stock, Qty 15

0

17

Echo 72030-13151

HOLDER
(Superseded to C535000480)

$3.49

$

In Stock, only 2 left!

0

18

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

Note: Replaces P/N 01017-05250

$1.49

$

In Stock, Qty 20+

0

19

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

20

Echo 01213-05100

SCREW - 5X10

$

$

Currently unavailable

21

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

22

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

Echo 72030-14101

HANDLE ASSY
(Superseded to Discontinued)

Note: Replaces P/N 72030-14100

$

$

Not available

31

HANDLE

Note: Order P/N 72030-14101

$

$

Not available

32

Echo 72030-14120

THUMBSCREW
(Superseded to V299000380)

$5.49

$

Usually ships in 2-4 days

0

33

Echo 72030-14130

WASHER
(Superseded to V304000160)

$0.99

$

In Stock, only 3 left!

0

34

Echo 01500-06051

NUT - 6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0

35

Echo 72030-14141

SCREW
(Superseded to V254000040)

$0.99

$

Usually ships in 2-4 days

0
