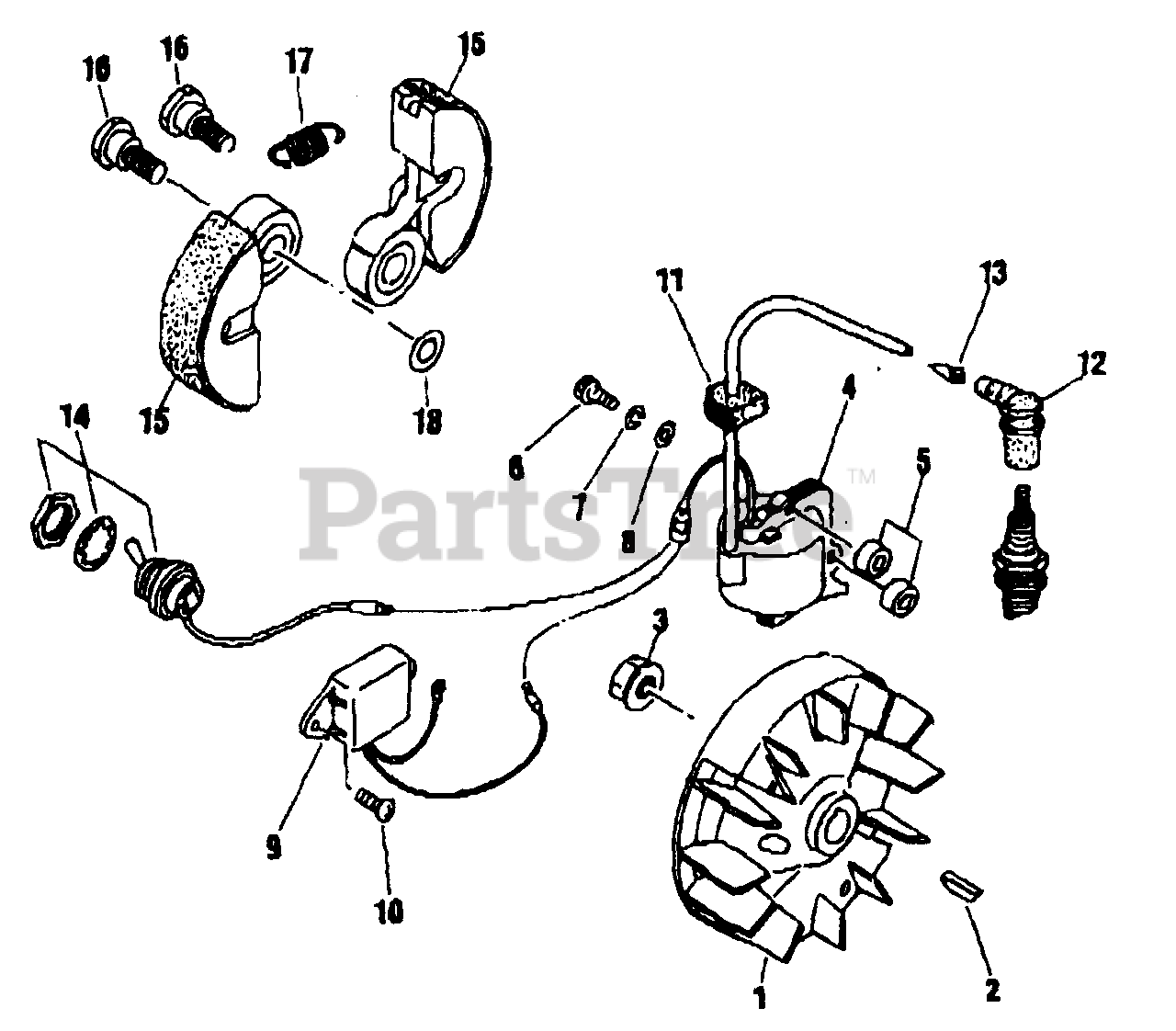

F 20 - Shindaiwa String Trimmer Ignition System Parts Diagram

String Trimmer

Ignition System Parts Diagram

  • Title

1

Echo 70030-71201

ROTOR
(Superseded to Discontinued)

Note: Marked D

$

$

Not available

2

Echo 22100-43210

KEY - 3X10
(Superseded to 12408-03100)

$1.99

$

In Stock, only 2 left!

0

3

Echo 20035-71220

NUT - 8
(Superseded to V265000140)

$0.99

$

In Stock, Qty 8

0

4

Echo 70030-71610

COIL, IGNITION

$

$

Currently unavailable

5

Echo 70030-71820

INSULATOR

$

$

Currently unavailable

6

Echo 01020-04260

SCREW - 4X26
(Superseded to Discontinued)

$

$

Not available

7

Echo 01600-04101

LOCKWASHER - 4
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

8

Echo 20010-71650

WASHER
(Superseded to V302000010)

$0.99

$

In Stock, Qty 6

0

9

Echo 70030-71711

UNIT
(Superseded to Discontinued)

$

$

Not available

10

Echo 20000-31330

SCREW

$

$

Currently unavailable

11

Echo 70030-72110

GROMMET
(Superseded to Discontinued)

$

$

Not available

12

Echo 20010-72221

CAP, SPARK PLUG
(Superseded to A427000090)

$5.99

$

In Stock, only 4 left!

0

13

Echo 20000-72230

TERMINAL, SPARK PLUG CAP
(Superseded to A426000050)

$1.49

$

In Stock, Qty 6

0

SPARK PLUG

Note: Champion CJ-8

$

$

Not available

14

Echo 70030-74110

SWITCH

$8.49

$

Usually ships in 2-4 days

0

15

UNKNOWN

$

$

Not available

Echo 70000-51103

CLUTCH ASSY
(Superseded to 70000-51104)

$32.99

$

In Stock, Qty 20+

0

SHOE, CLUTCH

Note: Order P/N 70000-51103

$

$

Not available

16

Echo 20000-51212

BOLT, CLUTCH
(Superseded to A557000070)

$1.49

$

Usually ships in 2-4 days

0

17

Echo 70000-51220

SPRING, CLUTCH
(Superseded to A566000070)

$2.49

$

Usually ships in 2-4 days

0

18

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0
