F 20 - Shindaiwa String Trimmer Crankcase, Fan Cover Parts Diagram

String Trimmer

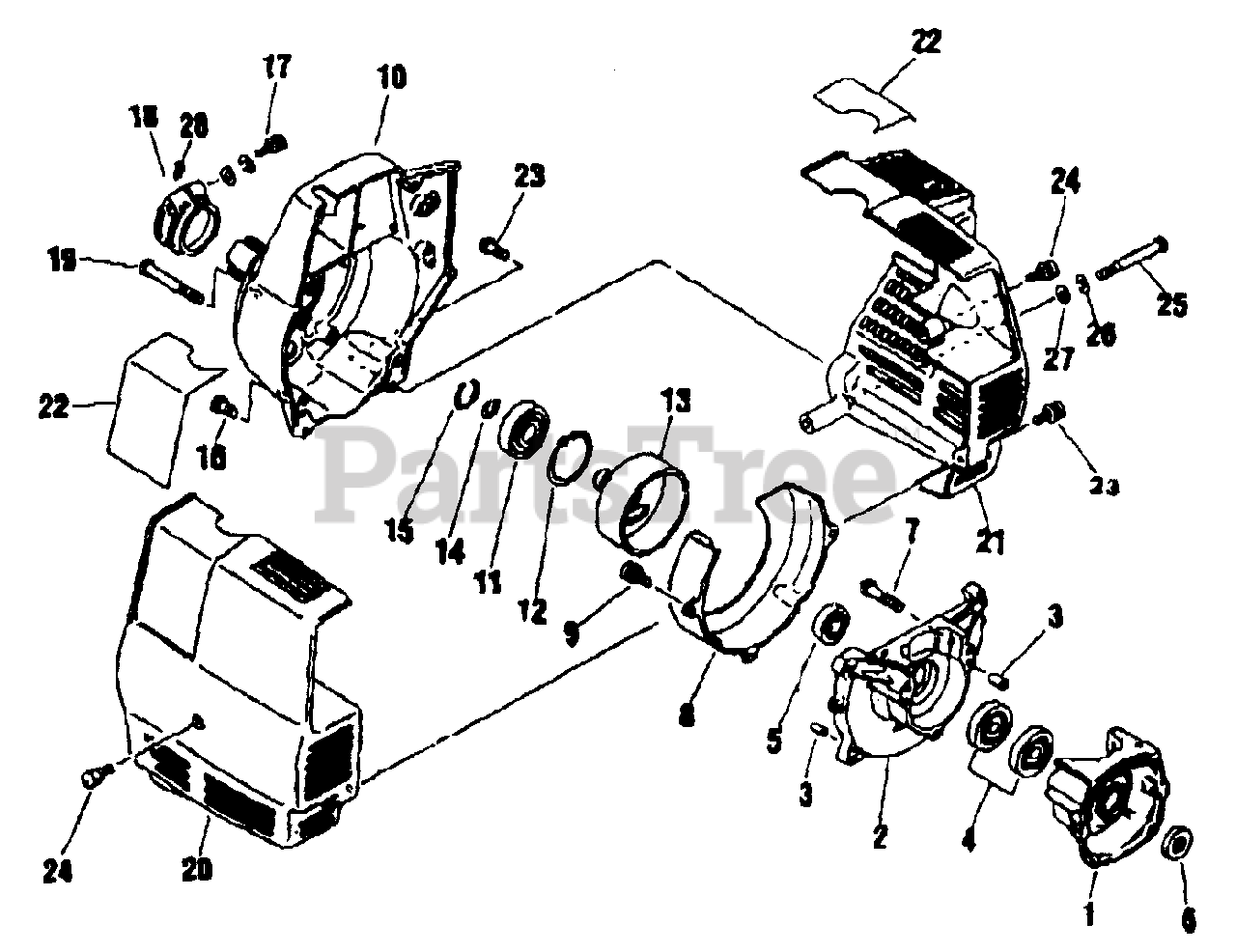

Crankcase, Fan Cover Parts Diagram

  • Title
1

Echo 70030-21110

CRANKCASE - REAR
(Superseded to Discontinued)

$

$

Not available

2

Echo 70030-21120

CRANKCASE - FRONT
(Superseded to Discontinued)

$

$

Not available

3

Echo 70030-21140

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

4

Echo 02030-06001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, Qty 6

0

5

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 12

0

6

Echo 70030-21220

SEAL, OIL
(Superseded to 22150-21250)

$3.49

$

In Stock, only 1 left!

0

7

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

8

Echo 70030-21310

DEFLECTOR, AIR
(Superseded to Discontinued)

$

$

Not available

9

Echo 01213-04120

SCREW - 4X12
(Superseded to 9156404012)

$0.99

$

Usually ships in 2-4 days

0

Echo 70030-31102

FAN CASE ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo 70030-31190

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

11

Echo 02000-06201

BEARING, BALL - 6201
(Superseded to 90081006201)

$6.99

$

Usually ships in 2-4 days

0

12

Echo 02432-32120

RING, RETAINING - 32
(Superseded to 9242432000)

$0.99

$

In Stock, Qty 5

0

13

Echo 70030-31120

DRUM, CLUTCH

$19.99

$

Usually ships in 2-4 days

0

14

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 10

0

15

Echo 70030-31150

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

16

Echo 01210-05160

SCREW - 5X16

$0.99

$

Usually ships in 2-4 days

0

17

Echo 01012-05250

SCREW - 5X25

Note: Replaces P/N 01017-05250

$

$

Currently unavailable

18

Echo 70030-31310

CLAMP
(Superseded to Discontinued)

$

$

Not available

19

Echo 01210-05500

SCREW - 5X50

$

$

Currently unavailable

20

Echo 70030-32110

COVER, ENGINE - LEFT
(Superseded to Discontinued)

$

$

Not available

21

Echo 70030-32121

COVER, ENGINE - RIGHT
(Superseded to Discontinued)

$

$

Not available

22

Echo 70030-32170

NAME PLATE

$

$

Currently unavailable

23

Echo 01210-05160

SCREW - 5X16

$0.99

$

Usually ships in 2-4 days

0

24

Echo 01213-05250

SCREW - 5X25
(Superseded to 9156405025)

$0.99

$

Usually ships in 2-4 days

0

25

Echo 01210-05500

SCREW - 5X50

$

$

Currently unavailable

26

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

27

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

28

Echo 70030-31320

SHIM
(Superseded to Discontinued)

$

$

Not available
