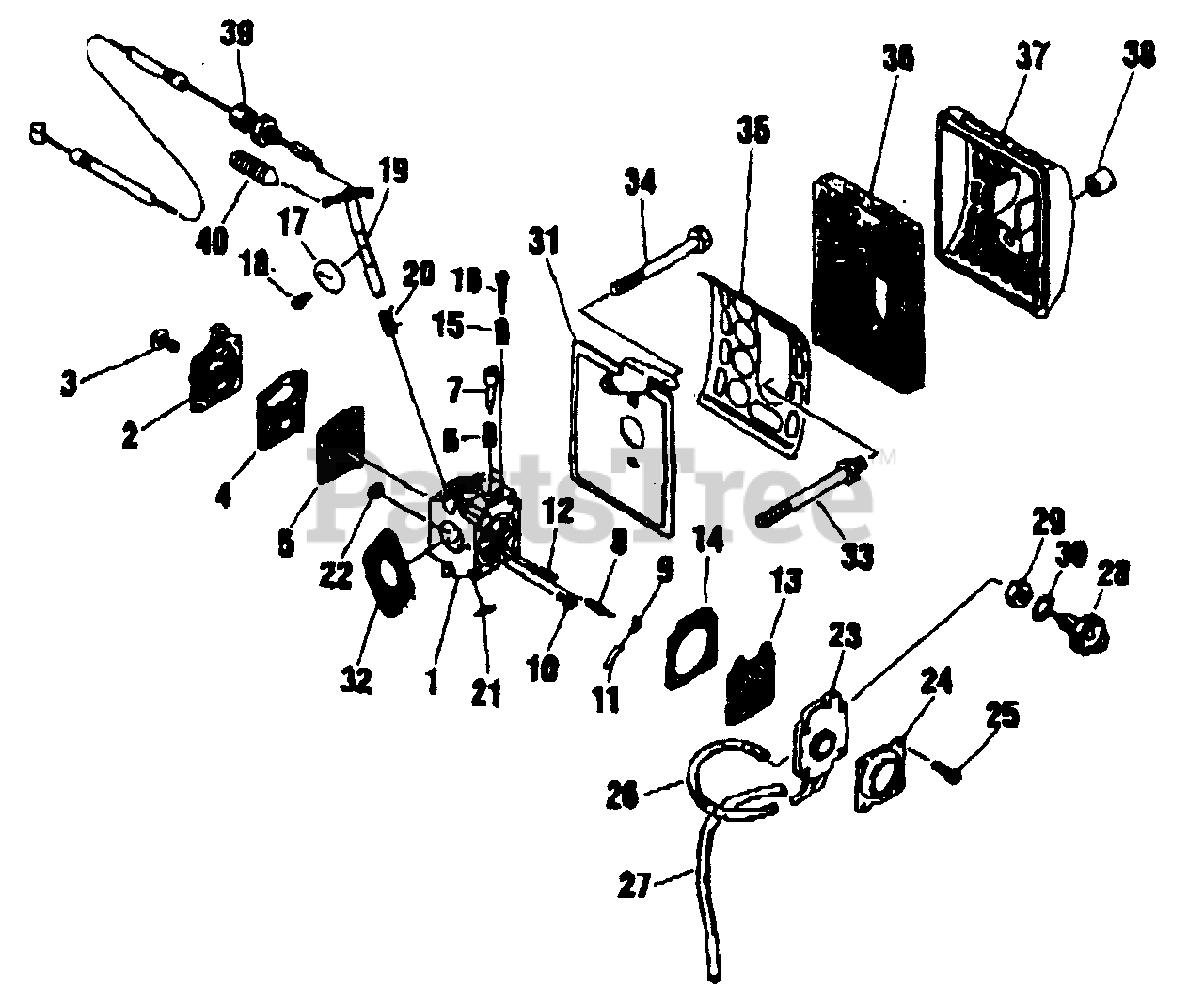

F 20 - Shindaiwa String Trimmer Carburetor Parts Diagram

String Trimmer

Carburetor Parts Diagram

  • Title

Echo 70030-81001

CARBURETOR

$113.99

$

Usually ships in 2-4 days

0

1

------------------

BODY, CARBURETOR

Note: Order P/N 70030-81001

$

$

Not available

2

Echo 70030-81120

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

3

Echo 22100-81130

SCREW, PUMP COVER
(Superseded to 12311003930)

$0.99

$

In Stock, only 1 left!

0

4

Echo 22128-81140

GASKET, PUMP
(Superseded to 12312515030)

$2.49

$

In Stock, Qty 9

0

5

Echo 22128-81150

DIAPHRAGM, PUMP
(Superseded to 12311215030)

$5.99

$

In Stock, only 2 left!

0

6

Echo 22100-81160

SPRING
(Superseded to 12312103930)

$1.49

$

In Stock, Qty 5

0

7

Echo 70030-81171

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

8

Echo 22100-81310

VALVE, INLET NEEDLE
(Superseded to 12313704260)

Note: Part of P/N 22100-81200

$3.99

$

Usually ships in 2-4 days

0

9

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

Note: Part of P/N 22100-81200

$6.49

$

In Stock, only 1 left!

0

10

Echo 22100-81240

SCREW, METERING LEVER PIN
(Superseded to 12313903930)

Note: Part of P/N 22100-81200

$1.49

$

In Stock, only 1 left!

0

11

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

Note: Part of P/N 22100-81200

$5.99

$

In Stock, only 4 left!

0

12

Echo 22104-81270

SPRING, METERING LEVER
(Superseded to 12312211130)

Note: Part of P/N 22100-81200

$1.49

$

In Stock, only 1 left!

0

13

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 5

0

14

Echo 22135-81290

GASKET, METERING

$2.99

$

Usually ships in 2-4 days

0

15

Echo 22100-81320

SPRING
(Superseded to 12311903930)

$1.49

$

In Stock, only 4 left!

0

16

Echo 70030-81330

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

17

Echo 70030-81340

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 22100-81360

SCREW
(Superseded to 12311403930)

Note: Part of P/N 22100-81200

$1.49

$

In Stock, Qty 13

0

19

Echo 70030-81370

SHAFT
(Superseded to Discontinued)

$

$

Not available

20

Echo 70030-81410

SPRING
(Superseded to Discontinued)

$

$

Not available

21

Echo 70030-81390

RING, RETAINING
(Superseded to 12312715030)

$0.99

$

In Stock, only 2 left!

0

22

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 17

0

23

Echo 22135-81520

STARTER BODY

$10.99

$

Usually ships in 2-4 days

0

24

Echo 22135-81510

RETAINER, PURGE BULB

$3.49

$

Usually ships in 2-4 days

0

25

Echo 22135-81530

SCREW

$1.49

$

Usually ships in 2-4 days

0

26

Echo 22135-81540

PIPE, PURGE
(Superseded to Discontinued)

$

$

Not available

27

Echo 70030-81550

TUBE, DRAIN

$1.49

$

Usually ships in 2-4 days

0

Echo 22135-81600

PRIMARY ASSY

$3.99

$

Usually ships in 2-4 days

0

28

Echo 22135-81610

PRIMING PUMP
(Superseded to Discontinued)

$

$

Not available

29

Echo 01511-10060

NUT
(Superseded to Discontinued)

$

$

Not available

30

Echo 01602-01000

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

31

Echo 70030-82101

CHOKE ASSY

$4.99

$

Usually ships in 2-4 days

0

32

Echo 70030-82210

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

33

Echo 70030-82220

BOLT

$1.49

$

Usually ships in 2-4 days

0

34

Echo 01010-05500

BOLT - 5X50
(Superseded to Discontinued)

$

$

Not available

35

Echo 70030-82310

PLATE, AIR CLEANER
(Superseded to Discontinued)

$

$

Not available

36

Echo 70030-82320

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

37

Echo 70030-82330

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

38

Echo 70030-82340

NUT
(Superseded to Discontinued)

$

$

Not available

39

Echo 70030-83110

CABLE, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

40

Echo 70030-83210

SPRING
(Superseded to Discontinued)

$

$

Not available

Echo 22135-81920

GASKET KIT

$5.49

$

Usually ships in 2-4 days

0

4

Echo 22128-81140

GASKET, PUMP
(Superseded to 12312515030)

$2.49

$

In Stock, Qty 9

0

14

Echo 22135-81290

GASKET, METERING

$2.99

$

Usually ships in 2-4 days

0

Echo 22128-81910

DIAPHRAGM KIT

$11.99

$

In Stock, only 1 left!

0

5

Echo 22128-81150

DIAPHRAGM, PUMP
(Superseded to 12311215030)

$5.99

$

In Stock, only 2 left!

0

13

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 5

0

Echo 22100-81200

REPAIR KIT

$10.99

$

Usually ships in 2-4 days

0

8

------------------

VALVE, INLET NEEDLE

Note: Order P/N 22100-81200

$

$

Not available

9

LEVER, METERING

Note: Order P/N 22100-81200

$

$

Not available

10

------------------

SCREW

Note: Order P/N 22100-81200

$

$

Not available

11

PIN

Note: Order P/N 22100-81200

$

$

Not available

12

SPRING

Note: Order P/N 22100-81200

$

$

Not available

18

------------------

SCREW

Note: Order P/N 22100-81200

$

$

Not available

STRAINER

Note: Order P/N 22100-81200

$

$

Not available
