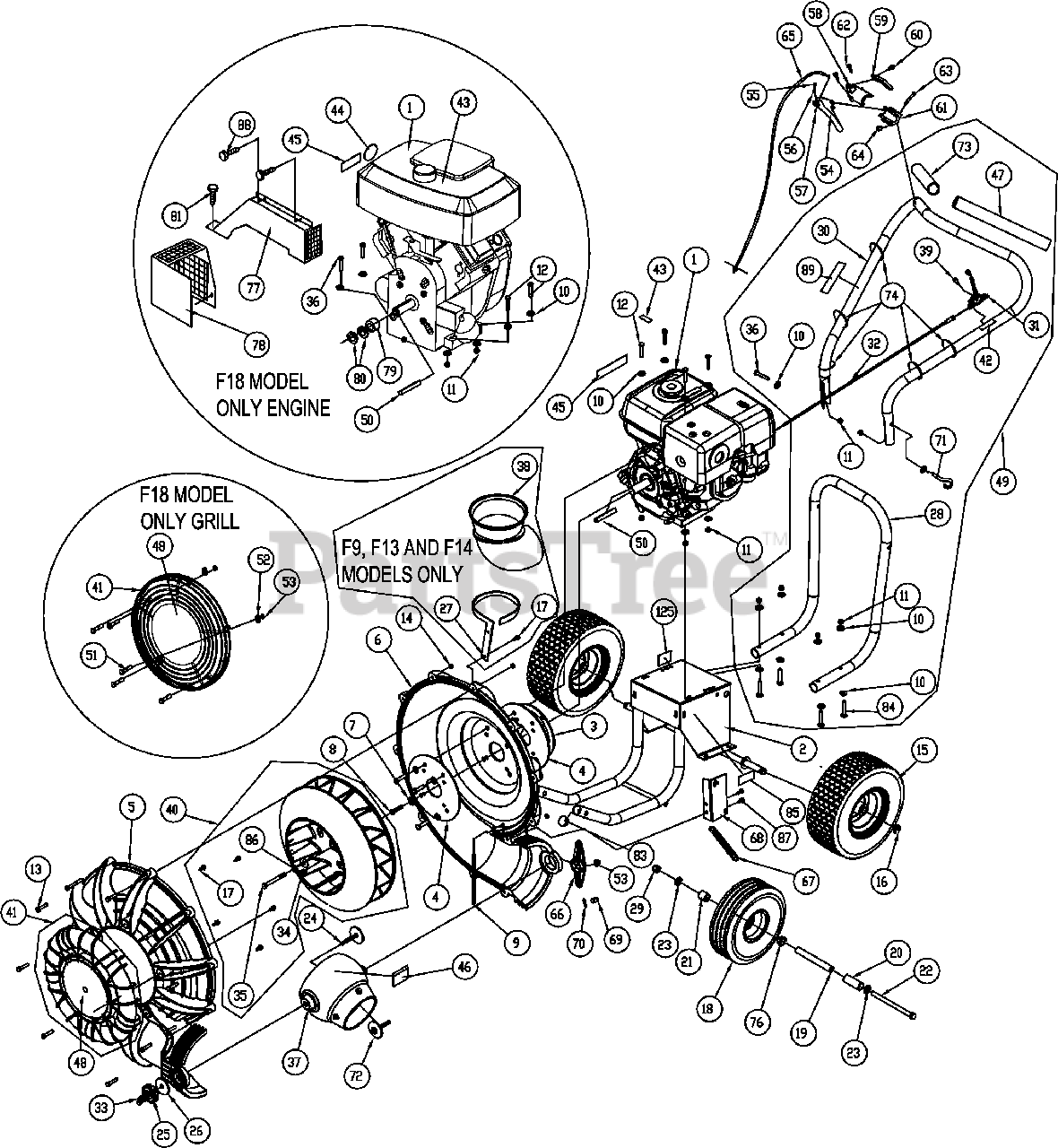

F 1802 V - Billy Goat Force Wheeled Blower, 18hp Vanguard Parts Assembly Parts Diagram

Force Wheeled Blower, 18hp

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 812240

ENGINE 18 VANGUARD

$

$

Not available

2

Billy Goat 440320

BASE ENGINE WA FSP

$

$

Currently unavailable

3

N/A

SPACER RING ENGINE

$

$

Not available

4

Billy Goat 440010-P

PLATE REINFORCE HOUSING
(Superseded to 440330)

$24.99

$

In Stock, only 1 left!

0

5

Billy Goat 440023

HOUSING FRONT MOLDED

$214.99

$

Usually ships in 2-11 days

0

6

Billy Goat 440024

HOUSING BACK MOLDED

$216.99

$

Usually ships in 2-11 days

0

7

Billy Goat 8177013

WASHER LOCK

$0.99

$

In Stock, Qty 9

0

8

Billy Goat 8041054

SCREW CAP 3/8-16X 2" ZP

$0.99

$

In Stock, Qty 5

0

9

Billy Goat 440057

ROD HAND STOP

$5.49

$

Usually ships in 2-11 days

0

10

Billy Goat 8171003

WASHER 5/16 FLATWASHER Z/P

$0.99

$

In Stock, only 2 left!

0

11

Billy Goat 8160002

NYLON INSERT LOCKNUT 5/16-18

$0.99

$

In Stock, Qty 5

0

12

Billy Goat 8041031

SCREWCAP 5/16-18 X 1.75 ZP

$0.99

$

In Stock, only 3 left!

0

13

Billy Goat 8041008

SCREWCAP 1/4-20 x 1 1/2

$0.99

$

Usually ships in 2-11 days

0

14

Billy Goat 900455

NUT FLANGE 1/4-20

$1.49

$

Usually ships in 2-11 days

0

15

Billy Goat 440054

WHEEL & TIRE 13" X 5" PNEUMATIC

$116.99

$

In Stock, only 2 left!

0

16

Billy Goat 850230

RING RETAINING 3/4

$0.99

$

Usually ships in 2-11 days

0

17

N/A

SCREW SELF-TAP 5/16 NC X 3/4 HEX

$

$

Not available

18

Billy Goat 400295

WHEEL ASSY 10 " PNEUMATIC

$87.99

$

In Stock, only 4 left!

0

19

Billy Goat 440220

SPACER FRONT AXLE

$24.99

$

Usually ships in 2-11 days

0

20

Billy Goat 440224

SPACER LH WHEEL FRONT

$8.99

$

Usually ships in 2-11 days

0

21

Billy Goat 440221

SPACER RH WHEEL FRONT

$7.49

$

Usually ships in 2-11 days

0

22

Billy Goat 8041240

SCREWCAP 1/2-13 x 9 1/2"

$9.49

$

Usually ships in 2-11 days

0

23

Billy Goat 8172011

WASHER FLAT 1/2" SAE

$0.99

$

In Stock, Qty 6

0

24

Billy Goat 440075

WASHER W/BOLT WA

$6.99

$

Usually ships in 2-11 days

0

25

Billy Goat 811230

KNOB 3/8-16 SOLID HUB

$8.99

$

In Stock, only 2 left!

0

26

Billy Goat 610308-P

WASHER 2.25 OD x .515 ID x .134 ZP

$2.99

$

Usually ships in 2-11 days

0

27

N/A

BRACKET HOLDER WA

$

$

Not available

28

Billy Goat 440034

HANDLE LOWER

$87.99

$

Usually ships in 2-11 days

0

29

Billy Goat 8160005

NYLON INSERT LOCKNUT 1/2-13

$0.99

$

In Stock, only 1 left!

0

30

Billy Goat 440035

HANDLE UPPER

$

$

Not available

31

Billy Goat 440013

CONTROL THROTTLE

$40.99

$

In Stock, Qty 17

0

32

Billy Goat 440178

CABLE THROTTLE CONTROL

$31.99

$

In Stock, only 2 left!

0

33

Billy Goat 8161042

NUT LOCK 3/8-16 LT WT THIN ZP

$0.99

$

In Stock, Qty 9

0

34

Billy Goat 440176

WASHER 1.5 O.D.X 0.45 I.D. X 0.5

$2.99

$

In Stock, only 4 left!

0

35

Billy Goat 8042062

SCREWCAP 3/8-24 X 4 GR.8 (38 +/-2 ft-lbs)

$

$

Currently unavailable

36

Billy Goat 8041032

SCREWCAP 5/16"-18 X 2" ZP

$0.99

$

In Stock, Qty 8

0

37

Billy Goat 440170-S

DIRECTOR CONE 6"

$115.99

$

Usually ships in 2-11 days

0

38

N/A

DIVERTOR FRONT

$

$

Not available

39

Billy Goat 8122064

SCREW SM #10-24X1/2" DRILL POINT

$1.49

$

Usually ships in 2-11 days

0

40

Billy Goat 440162

IMPELLER SERVICE ASSY FORCE 18HP

$426.99

$

Usually ships in 2-11 days

0

41

Billy Goat 440171-S

GRILL FRONT BLOWER

$161.99

$

Usually ships in 2-11 days

0

42

Billy Goat 810656

LABEL THROTTLE CONTROL

$3.99

$

Usually ships in 2-11 days

0

43

Billy Goat 100261

LABEL FUEL EN/SP

$3.99

$

Usually ships in 2-11 days

0

45

Billy Goat 100346

LABEL SAFETY PROTECT READ MANUAL

$3.99

$

Usually ships in 2-11 days

0

46

Billy Goat 810736

LABEL DANGER FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

47

Billy Goat 440012

GRIP 1-1/4" ID x 13"
(Superseded to 440146)

$9.49

$

In Stock, only 3 left!

0

48

Billy Goat 440268

LABEL FORCE

$6.99

$

Usually ships in 2-11 days

0

49

Billy Goat 440104

HANDLE ASSY UPPER
(Superseded to 440104-S)

$244.99

$

Usually ships in 2-11 days

0

50

Billy Goat 9201130

KEY 1/4" SQ x 2.75

$6.49

$

Usually ships in 2-11 days

0

51

Billy Goat 8041006

SCREWCAP 1/4-20 X 1"

$0.99

$

Usually ships in 2-11 days

0

52

Billy Goat 8171002

WASHER FLAT 1/4

$0.99

$

In Stock, Qty 9

0

53

Billy Goat 8160001

NUT LOCK 1/4"-20 HEX ZP

$0.99

$

In Stock, Qty 9

0

54

Billy Goat 440119

HANDLE DIVERTER FORCE

$9.99

$

In Stock, only 1 left!

0

55

Billy Goat 440118

PIN LATCH DIVERTER

$9.49

$

In Stock, only 2 left!

0

56

Billy Goat 440129

SPRING COMPRESSION 0.281 X 0.88

$7.49

$

In Stock, only 2 left!

0

57

Billy Goat 440125

RING RETAINING .122 DIA

$0.99

$

Usually ships in 2-11 days

0

58

Billy Goat 440115

SADDLE LOWER DIVERTER

$5.99

$

In Stock, only 1 left!

0

59

Billy Goat 440116

PLATE LOCK DIVERTER

$16.99

$

In Stock, only 2 left!

0

60

Billy Goat 440126

SCREW PLASTITE #6-19 X 5/8"

$0.99

$

In Stock, Qty 9

0

61

Billy Goat 440114

SADDLE UPPER DIVERTER

$5.49

$

In Stock, only 2 left!

0

62

Billy Goat 440132

SCREW PLASTITE #10-14 X 1"

$0.99

$

In Stock, Qty 5

0

63

Billy Goat 440123

PIN PIVOT DIVERTER CONTROL

$4.49

$

In Stock, only 2 left!

0

64

Billy Goat 430327

RING RETAINING 5/16

$2.49

$

In Stock, only 2 left!

0

65

Billy Goat 440117

CABLE ASSY

$27.99

$

In Stock, Qty 12

0

66

Billy Goat 440121

DIVERTER PIVOT ADAPTOR

$6.99

$

In Stock, Qty 6

0

67

Billy Goat 440130

SPRING EXTENSION 0.468 X 5.25

$8.49

$

In Stock, only 1 left!

0

68

Billy Goat 440212

BRACKET DIVERTER FORCE

$10.99

$

Usually ships in 2-11 days

0

69

Billy Goat 440124

PIN CLEVIS 1/4 X 3/4

$1.49

$

Usually ships in 2-11 days

0

70

Billy Goat 440193

.051 X 3/4" HITCH PIN CLIP

$0.99

$

In Stock, Qty 5

0

71

Billy Goat 440280

EYEBOLT PIGTAIL 5/16"-18 X 1 1/4"

$6.99

$

Usually ships in 2-11 days

0

72

Billy Goat 440122

ADAPTOR MOUNT WA

$8.99

$

Usually ships in 2-11 days

0

73

Billy Goat 440146

GRIP 1-1/4" ID x 9.5" LONG

$9.49

$

In Stock, only 3 left!

0

74

Billy Goat 900407

TY-WRAP

$0.99

$

In Stock, only 2 left!

0

76

Billy Goat 440055

FORCE WHEEL BEARING .751 ID

$14.99

$

In Stock, only 2 left!

0

77

Billy Goat 812243

GUARD MANIFOLD

$40.99

$

Usually ships in 2-11 days

0

78

Billy Goat 812242

GUARD MUFFLER
(Superseded to 812410)

$151.99

$

In Stock, only 1 left!

0

79

Billy Goat 830112

SPACER 1" ID X 2" OD X 0.890 TK

$28.99

$

Usually ships in 2-11 days

0

80

Billy Goat 830113

SPACER 1" ID X 2" OD X 0.265 TK

$13.99

$

Usually ships in 2-11 days

0

81

Billy Goat 890359

SCREW SELF TAP 1/4"-20 X 5/8"

$1.49

$

In Stock, only 3 left!

0

83

Billy Goat 791056

PLUG

$

$

Not available

84

Billy Goat 8024062

CARRIAGE BOLT 3/8"-16 X 2" ZP

$1.49

$

Usually ships in 2-11 days

0

85

Billy Goat 100252

SPARK ARRESTOR LABEL
(Superseded to 100256)

$2.99

$

In Stock, Qty 5

0

86

Billy Goat 8177012

WASHER LOCK 3/8 ST MED

$0.99

$

In Stock, Qty 9

0

87

Billy Goat 840082

SCREW PLASTITE 1/4"-10 X 3/4" HWH ZP

$1.49

$

In Stock, Qty 6

0

88

Billy Goat 812381

BOLT 1/4"-20 X 1/2" SER FLANGE

$0.99

$

Usually ships in 2-11 days

0

89

Billy Goat 440332

LABEL AIM AND SHOOT

$3.99

$

In Stock, only 1 left!

0

125

Billy Goat 520116

LABEL MADE IN U.S.A.

$

$

Not available
