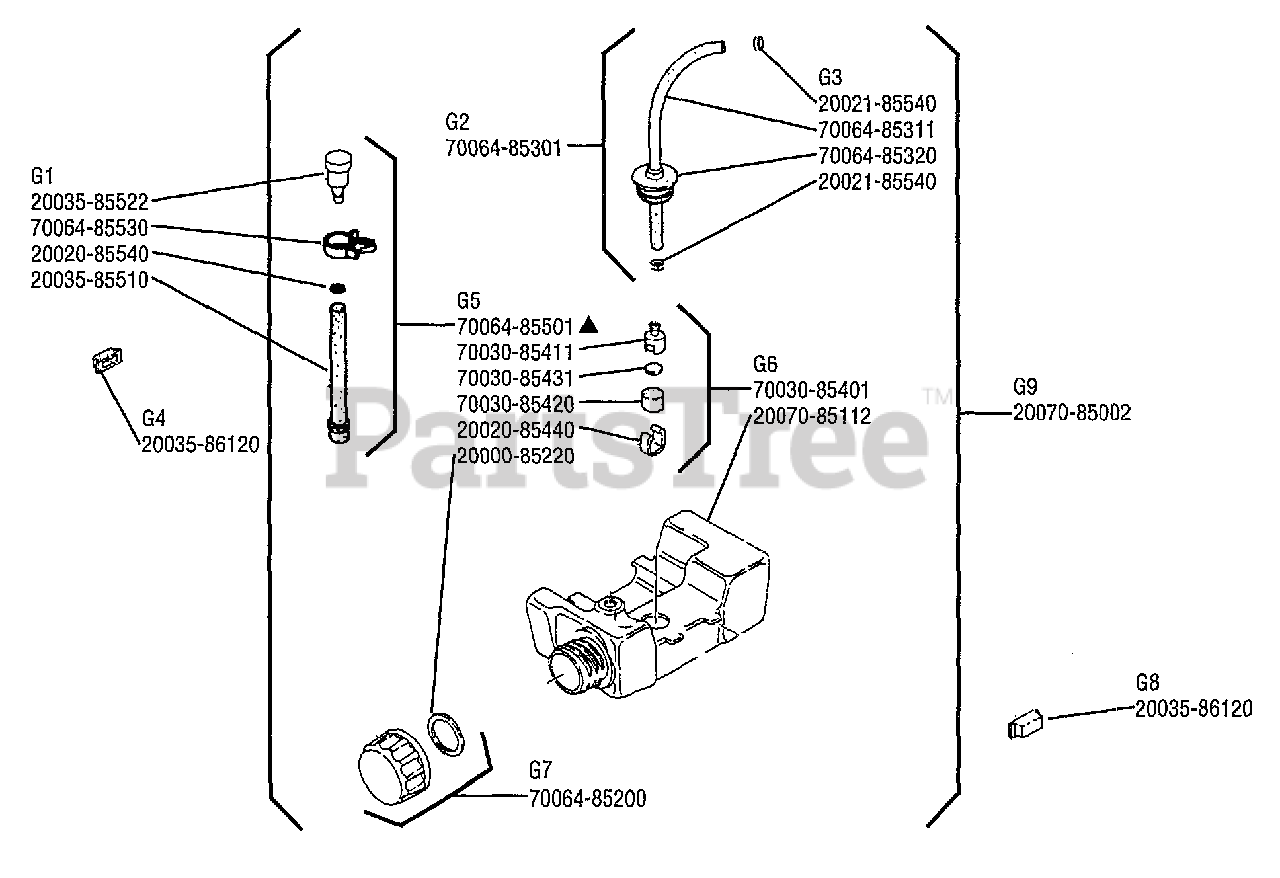

F 18 - Shindaiwa String Trimmer Fuel Tank Assembly Parts Diagram

String Trimmer

Fuel Tank Assembly Parts Diagram

  • Title
G3-20021-85540

Echo 20021-85540

CLIP
(Superseded to V490000580)

$0.99

$

In Stock, Qty 6

0

G3-70064-85311

Echo 70064-85311

FUEL PIPE
(Superseded to 20016-85310)

$4.99

$

In Stock, Qty 15

0

G3-70064-85320

Echo 70064-85320

GROMMET, FUEL
(Superseded to Discontinued)

$

$

Not available

G3-20021-85540

Echo 20021-85540

CLIP
(Superseded to V490000580)

$0.99

$

In Stock, Qty 6

0

G9-20070-85002

Echo 20070-85002

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

G6-70030-85401

Echo 70030-85401

FUEL FILTER ASSY
(Superseded to A369000090)

$6.49

$

In Stock, only 3 left!

0

G6-20070-85112

Echo 20070-85112

FUEL TANK
(Superseded to 70064-85112)

$

$

Not available

G8-20035-86120

Echo 20035-86120

CUSHION, TANK
(Superseded to V420002540)

$0.99

$

In Stock, Qty 20+

0

G7-70064-85200

Echo 70064-85200

FUEL CAP ASSY, USE 70064-85201
(Superseded to 70064-85201)

$

$

Not available

G2-70064-85301

Echo 70064-85301

FUEL PIPE COMPLETE
(Superseded to Discontinued)

$

$

Not available

G5-70064-85501

Echo 70064-85501

BREATHER ASSY
(Superseded to Discontinued)

Note: TK Carburetor

$

$

Not available

G5-70030-85411

Echo 70030-85411

WEIGHT, FILTER
(Superseded to C212000000)

$

$

Not available

G5-70030-85431

Echo 70030-85431

FILTER B
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 17

0

G5-70030-85420

Echo 70030-85420

FILTER A
(Superseded to A371000020)

$2.99

$

In Stock, only 3 left!

0

G5-20020-85440

Echo 20020-85440

CLIP
(Superseded to V490000570)

$0.99

$

In Stock, Qty 7

0

G5-20000-85220

Echo 20000-85220

GASKET, FUEL
(Superseded to 20000-85221)

$1.99

$

In Stock, Qty 17

0

G1-20035-85522

Echo 20035-85522

BREATHER
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

G1-70064-85530

Echo 70064-85530

HOLDER
(Superseded to Discontinued)

$

$

Not available

G1-20020-85540

Echo 20020-85540

CLIP
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

G1-20035-85510

Echo 20035-85510

BREATHER TUBE
(Superseded to V470000960)

$

$

Not available

G4-20035-86120

Echo 20035-86120

CUSHION, TANK
(Superseded to V420002540)

$0.99

$

In Stock, Qty 20+

0
