F 18 - Shindaiwa String Trimmer Crankcase Assembly Parts Diagram

String Trimmer

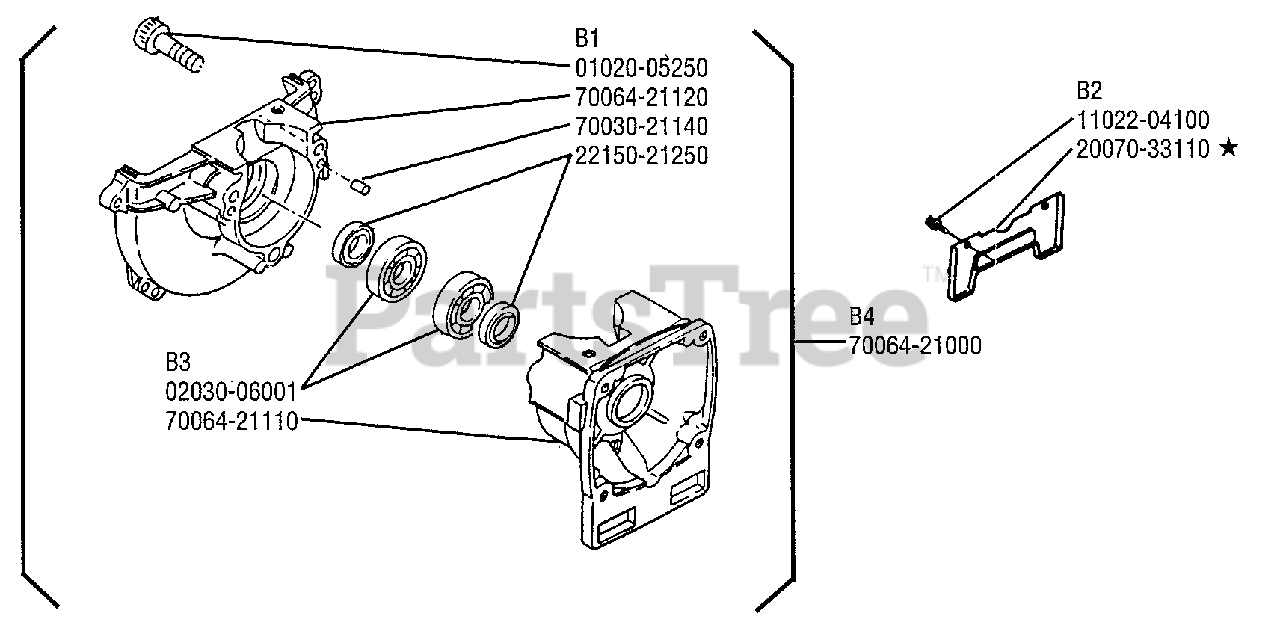

Crankcase Assembly Parts Diagram

  • Title

B3-02030-06001

Echo 02030-06001

BEARING, BALL
(Superseded to 90080036001)

$9.49

$

In Stock, only 1 left!

0

B3-70064-21110

Echo 70064-21110

CRANKCASE S
(Superseded to Discontinued)

$

$

Not available

B4-70064-21000

Echo 70064-21000

CRANKCASE ASSY
(Superseded to Discontinued)

$

$

Not available

B2-11022-04100

Echo 11022-04100

BOLT SPW
(Superseded to V202000260)

$3.49

$

In Stock, only 2 left!

0

B2-20070-33110

Echo 20070-33110

STAND

Note: OPTIONAL

$7.49

$

In Stock, only 1 left!

0

B1-01020-05250

Echo 01020-05250

BOLT
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

B1-70064-21120

Echo 70064-21120

CRANKCASE M
(Superseded to Discontinued)

$

$

Not available

B1-70030-21140

Echo 70030-21140

PIN, DOWEL
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

B1-22150-21250

Echo 22150-21250

OIL SEAL
(Superseded to V505000140)

$3.49

$

In Stock, only 3 left!

0
