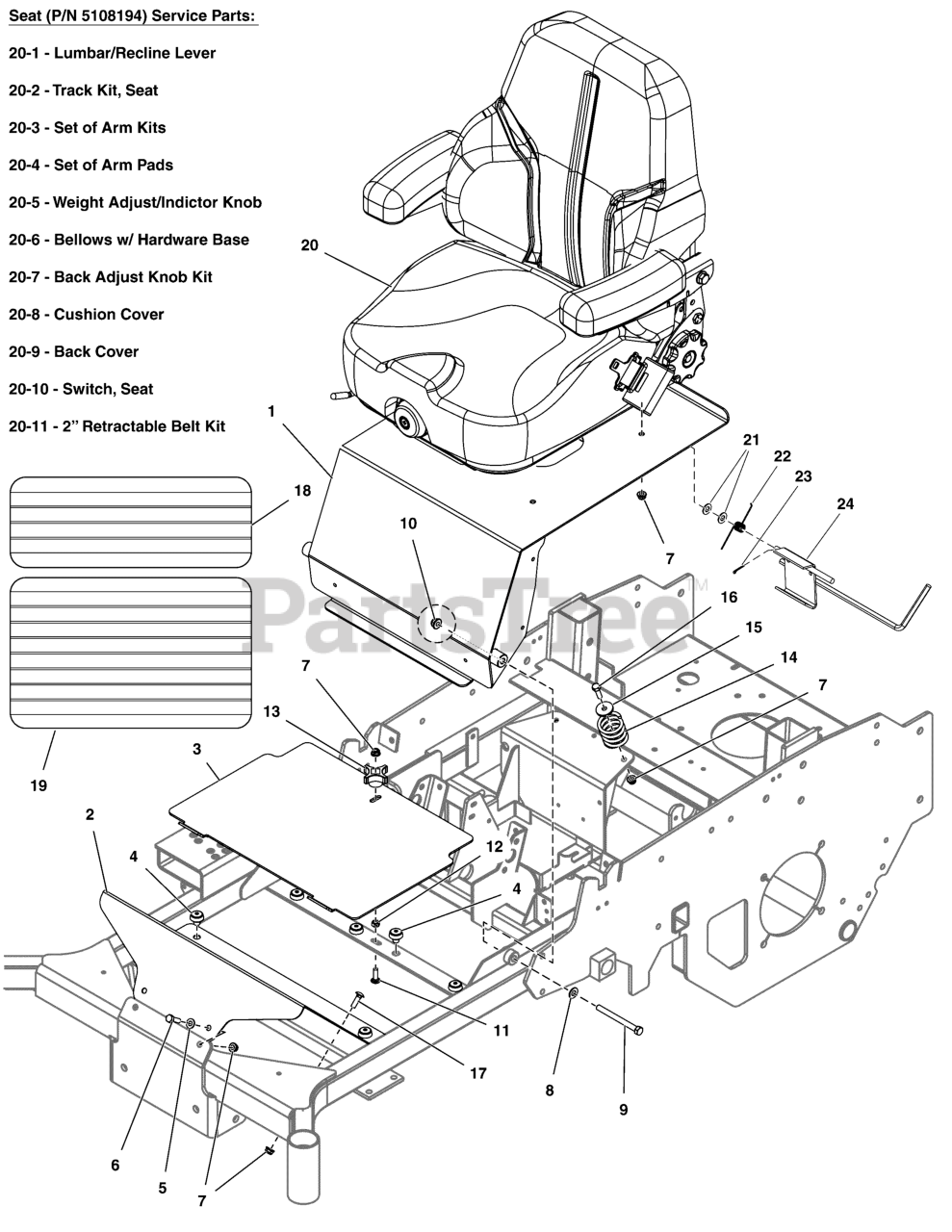

F 160Z (5901519) - Ferris F160Z Series 52" Zero-Turn Mower, 28hp Briggs & Stratton Seat Mount and Floor Group S/N: 4000906454 and Above Parts Diagram

F160Z Series 52" Zero-Turn Mower, 28hp Briggs & Stratton

Seat Mount and Floor Group S/N: 4000906454 and Above Parts Diagram

  • Title
1

Ferris 5601255

ASSM, SEAT PLATE W/ DECAL, F160Z-DOM

Note: (5419827B)

$

$

Currently unavailable

2

Ferris 5410774B

PLATE, FLOOR, NON REMOVABLE - RED
(Superseded to 5410774BFS)

$68.99

$

Usually ships in 2-12 days

0

3

Ferris 5410296B

PLATE, FLOOR, REMOVABLE, IS700 - RED
(Superseded to 5410296BFS)

$84.99

$

Usually ships in 2-12 days

0

4

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

Note: (Refer to Note: *)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

10

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Ferris 5025145X10

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X10YP)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

13

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

In Stock, only 1 left!

0

14

Ferris 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

Usually ships in 2-12 days

0

15

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

16

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

17

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

18

Ferris 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 1 left!

0

19

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

20

Ferris 5108194

SEAT, HIGH BACK,SUSP,SWITCH & SEAT BELTS
(Superseded to 84006088)

$1432.99

$

Usually ships in 2-12 days

0

20-1

Ferris 5105099X2

LUMBAR/RECLINE/ISO LVR W/ RLL PIN BS

Note: (SV)

$40.99

$

Usually ships in 2-12 days

0

20-2

Ferris 5104720X1

4" SINGLE LOCKING TRACKS BASE

Note: (SV)

$148.99

$

Usually ships in 2-12 days

0

20-3

Ferris 5106325X2

SET OF ARM KITS

Note: (SV)

$284.99

$

Usually ships in 2-12 days

0

20-4

Ferris 5106325X3

SET OF ARM PADS

Note: (SV)

$122.99

$

Usually ships in 2-12 days

0

20-5

Ferris 5104720X2

WEIGHT ADJUST INDICATOR KNOB ASSY BASE

Note: (SV)

$85.99

$

Usually ships in 2-12 days

0

20-6

Ferris 5104720X3

BELLOWS W/ HARDWARE BASE

Note: (SV)

$100.99

$

Usually ships in 2-12 days

0

20-7

Ferris 5106325X4

BACK ADJUSTMENT KNOB KIT

Note: (SV)

$40.99

$

Usually ships in 2-12 days

0

20-8

Ferris 5108194X1

CUSHION COVER
(Superseded to 5106325X6)

Note: (SV)

$272.99

$

Usually ships in 2-12 days

0

20-9

Ferris 5108194X2

SEAT BACK COVER

Note: (SV)

$320.99

$

Usually ships in 2-12 days

0

20-10

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

20-11

Ferris 5106325X5

2" RETRACTABLE BELT KIT

Note: (SV)

$142.99

$

Usually ships in 2-12 days

0

21

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

23

Ferris 5106644

SPRING, TORSION, LH, .0625OD
(Superseded to 84003202)

$2.49

$

Usually ships in 2-12 days

0

24

Ferris 5418442A

WELD, SEAT LATCH HOOK, W/ SPRING - BLK

$

$

Currently unavailable
