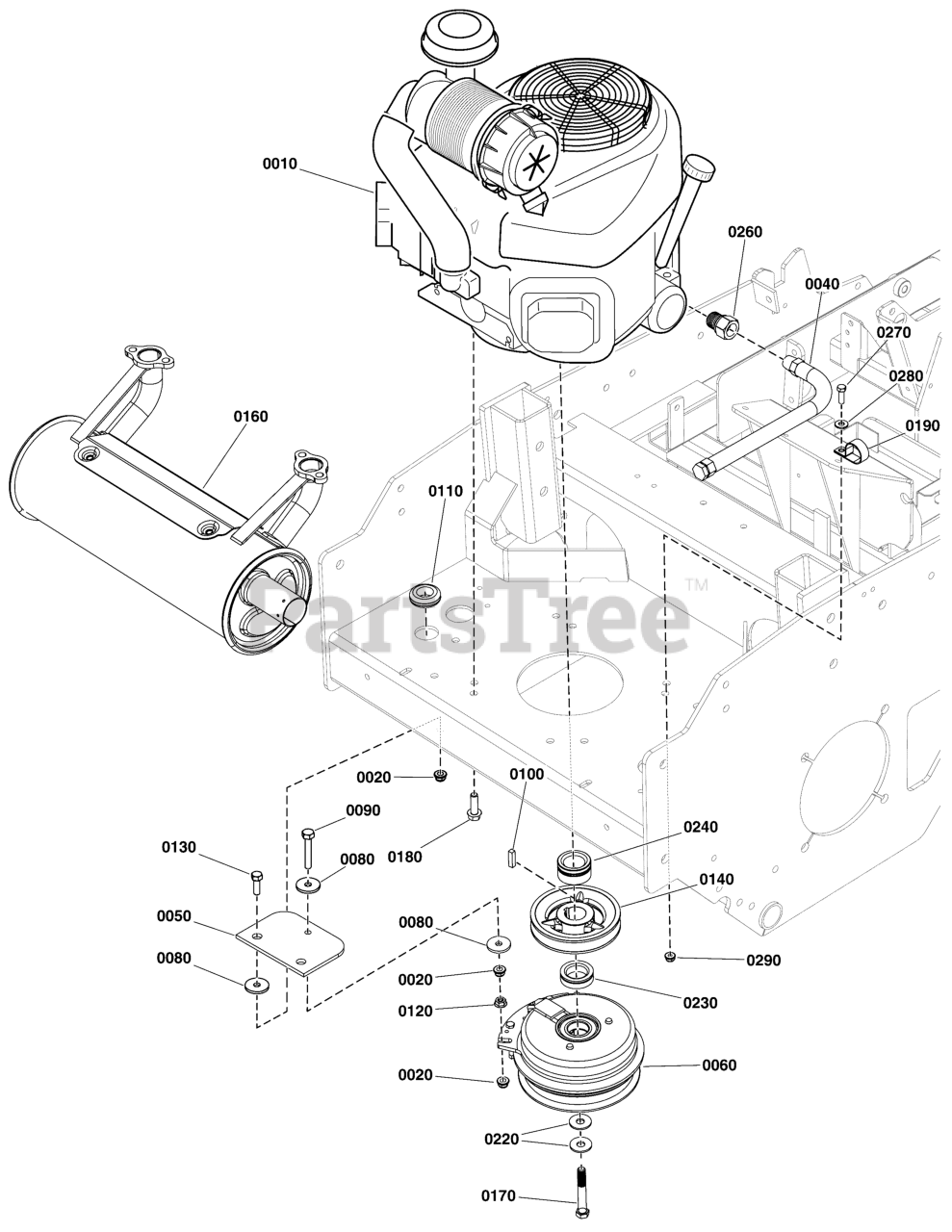

F 160Z (5901518) - Ferris F160Z Series 52" Zero-Turn Mower, 24hp Kawasaki Engine & PTO Group S/N: 2017988619 & Above Parts Diagram

F160Z Series 52" Zero-Turn Mower, 24hp Kawasaki

Engine & PTO Group S/N: 2017988619 & Above Parts Diagram

  • Title

0010

ENGINE, 23.5HP, KAWA, FX730V

$

$

Not available

0020

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0040

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

0050

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

0060

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

0080

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

0090

Ferris 5025055X16

BOLT, 5/16-18 X 2 GD5 TFL, CZ
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

0100

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

0110

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

0130

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

0140

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

0160

Ferris 5104326

MUFFLER, KAWI, HORIZONTAL, 5" CAN
(Superseded to 5104326YP)

$207.99

$

In Stock, only 1 left!

0

0170

Ferris 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm)

$5.49

$

In Stock, only 1 left!

0

0180

Ferris 5025640

BOLT, 3/8-16X1-1/4 SF, GD8, PHOS, SER HD
(Superseded to 84003591)

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm)

$3.49

$

In Stock, only 4 left!

0

0190

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0

0230

Ferris 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

$19.99

$

Usually ships in 2-12 days

0

0240

Ferris 5046845

SPACER, 1.13 X 1.75 X .97
(Superseded to 5046845SM)

$34.99

$

Usually ships in 2-12 days

0

0260

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

0270

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0280

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0290

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0
