F 160Z (5901517) - Ferris F160Z Series 48" Zero-Turn Mower, 24hp Kawasaki Main Frame & Front Casters Parts Diagram

F160Z Series 48" Zero-Turn Mower, 24hp Kawasaki

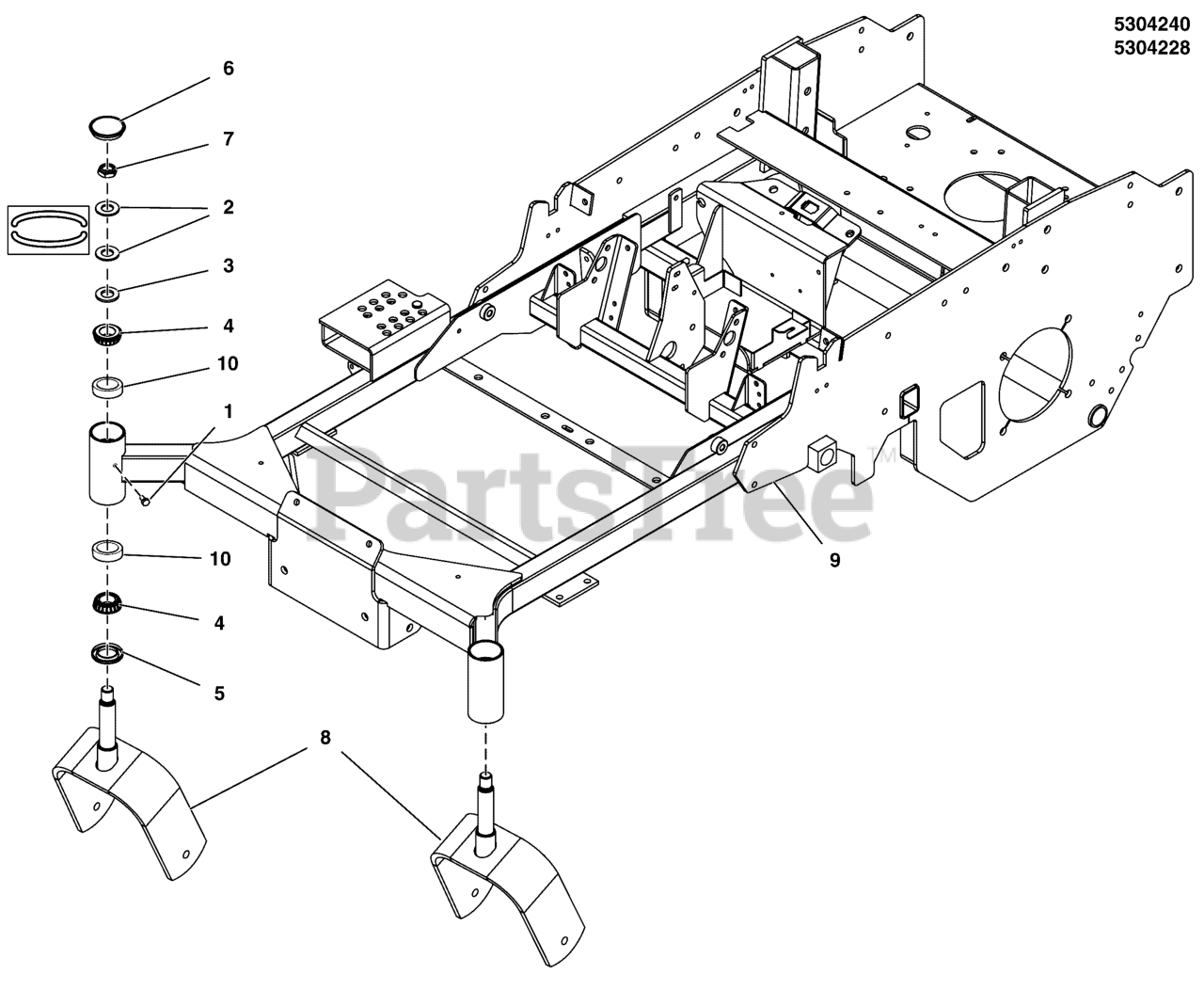

Main Frame & Front Casters Parts Diagram

  • Title
1

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 CZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

2

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

3

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

4

Ferris 5020884

BEARING, TAPERED ROLLER, 1
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

5

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

6

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

7

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5419196B

WELD, CASTER YOKE - RED
(Superseded to 5419196BFS)

$198.99

$

Usually ships in 2-12 days

0

9

* WELD, MAIN FRAME, F160Z - RED

$

$

Not available

10

Ferris 5020883

CUP, BEARING

Note: (SV)

$8.99

$

Usually ships in 2-12 days

0
