F 160Z (5901516) - Ferris F160Z Series 48" Zero-Turn Mower, 26hp Briggs & Stratton 48" Mower Deck - Pulleys, Belt, & Idler Arm S/N: 2017999045 & Above Parts Diagram

F160Z Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

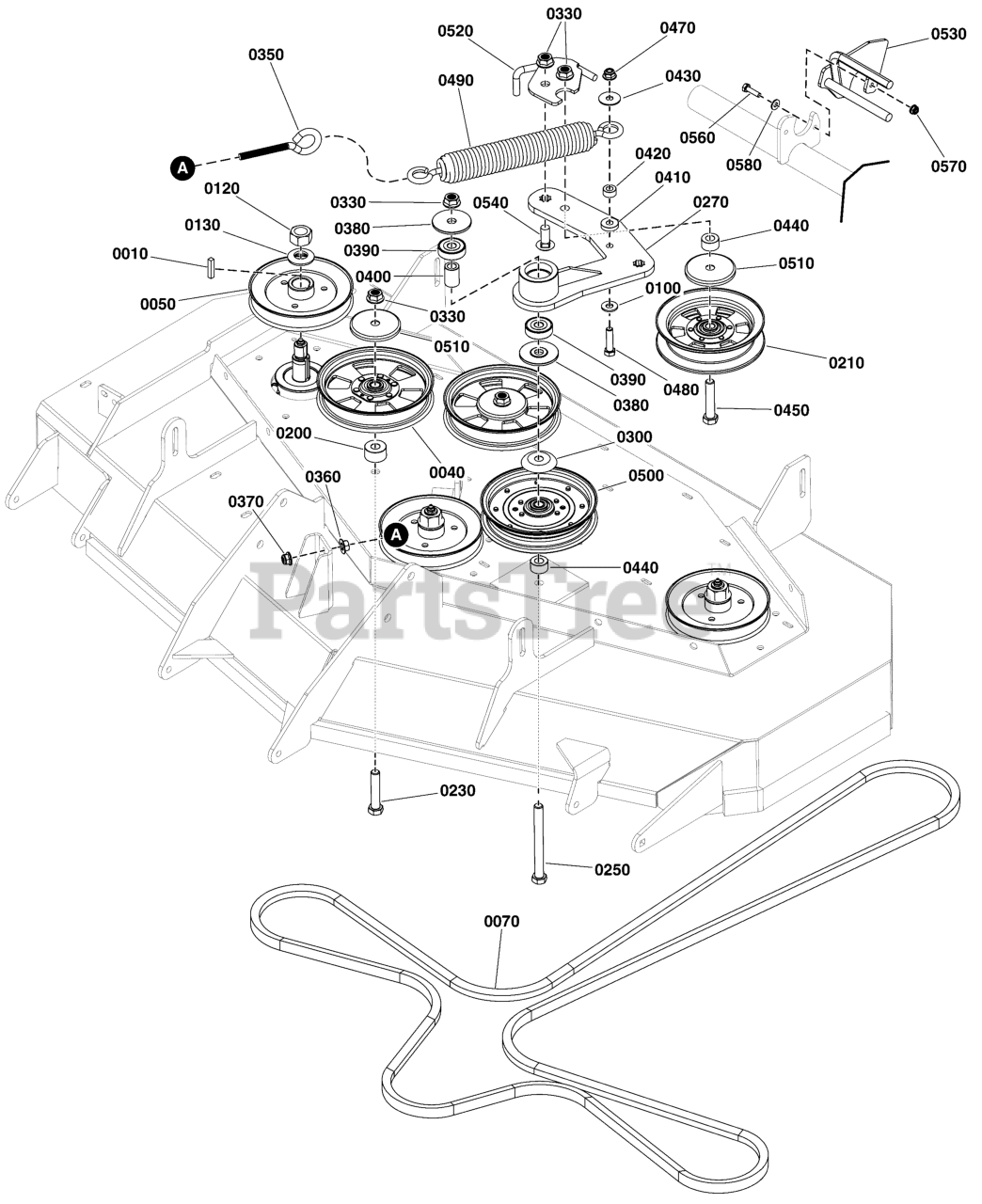

48" Mower Deck - Pulleys, Belt, & Idler Arm S/N: 2017999045 & Above Parts Diagram

  • Title

0010

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

0040

Ferris 5104717

PULLEY, FLT IDLR, 6.0 X 1.0 X .50, CZ
(Superseded to 5104717YP)

Note: (S/N: 2018095184 & Above)

$58.99

$

In Stock, Qty 20+

0

0040

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: (S/N: 2018095183 & Below)(Refer to Note: *)

$

$

Not available

0050

Ferris 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

$67.99

$

In Stock, Qty 18

0

0070

Ferris 5103392

BELT, 5V, 147.40"EL, LRG ARAMID,WRPD, RC
(Superseded to 5103392FS)

$110.99

$

In Stock, only 1 left!

0

0100

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0120

Ferris 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

0130

Ferris 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

0200

Ferris 5047142

SPACER, .52 X 1.25 X .70, PM, CZ
(Superseded to 5047142SM)

$8.99

$

In Stock, Qty 11

0

0210

Ferris 5104716

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID
(Superseded to 5104716YP)

$59.99

$

In Stock, Qty 14

0

0230

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 9

0

0250

Ferris 5025017X40

BOLT, 1/2-13 X 5" GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

0270

Ferris 5415907AYP

IDLER, Arm

$165.99

$

Usually ships in 2-12 days

0

0300

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

0330

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0350

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

0360

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0370

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 14

0

0380

Ferris 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

In Stock, only 2 left!

0

0390

Ferris 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 3 left!

0

0400

Ferris 5104456

SPACER, .51 X .84 X 1.22, PM, CZ
(Superseded to 5104456YP)

$4.49

$

In Stock, only 2 left!

0

0410

Ferris 5044960

SPACER, .39 X 1.00 X .25, PM, CZ
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

0420

Ferris 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

0430

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

0440

Ferris 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, Qty 8

0

0450

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 9

0

0470

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0480

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

0490

Ferris 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

In Stock, Qty 5

0

0500

Ferris 5101794

PULLEY, IDLER, 5" OD, 1" FACE, 5.75 FLANGE
(Superseded to 5101794YP)

$57.99

$

In Stock, only 1 left!

0

0510

Ferris 5105145

SHIELD, BEARING, 1/2 ID X 2-7/8 OD, CZ
(Superseded to 5105145YP)

Note: (Refer to Note: **)

$4.49

$

In Stock, Qty 20+

0

0520

Ferris 5416230A

WELD, BELT GUIDE - BLK

$

$

Currently unavailable

0530

Ferris 5416182A

WELD, CLUTCH BELT GUIDE

$

$

Currently unavailable

0540

Ferris 5025324X10

BOLT, CARRIAGE 1/2-13 X 1-1/4 GD.5
(Superseded to 5025324X10YP)

$2.99

$

Usually ships in 2-12 days

0

0560

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

0570

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0580

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0
