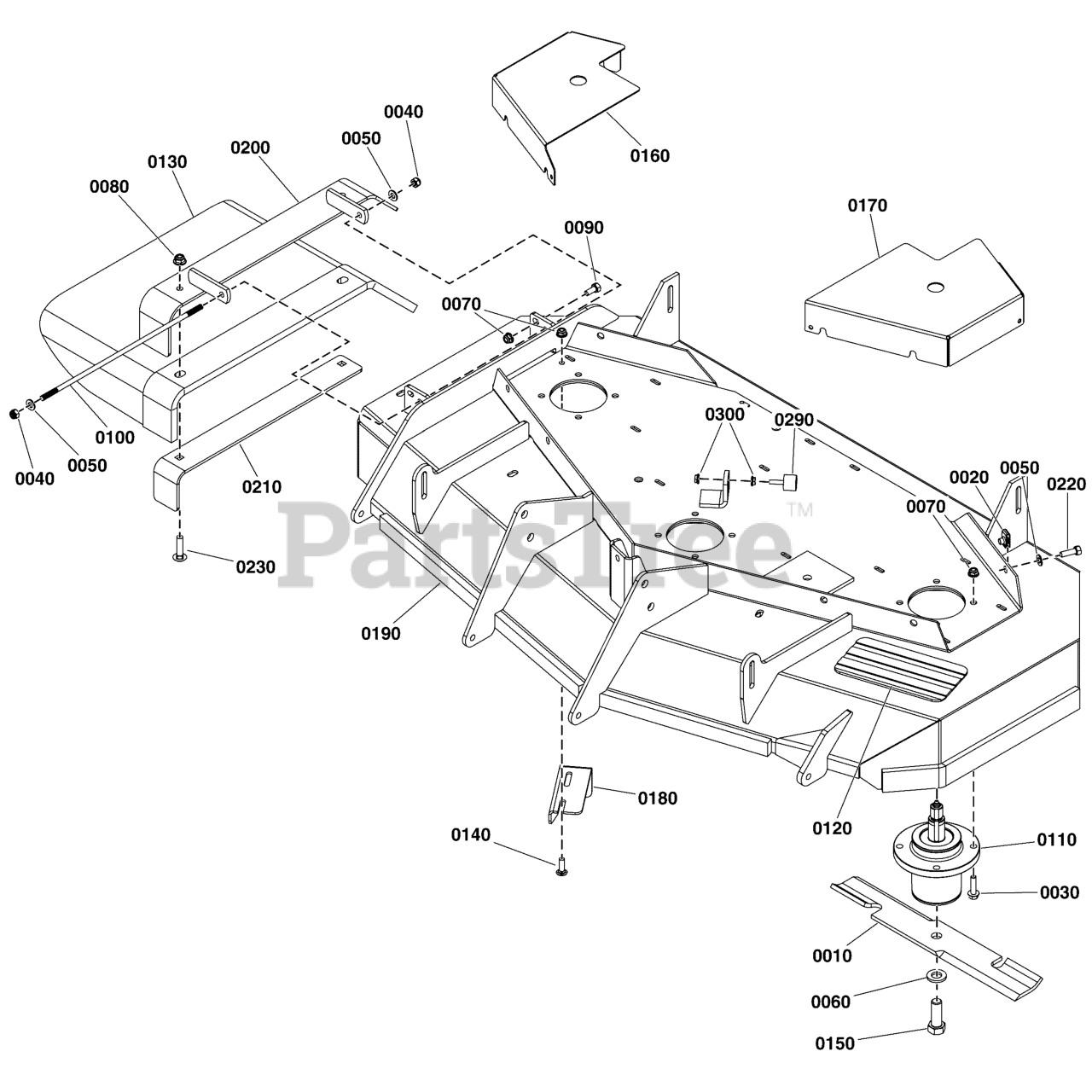

F 160Z (5901516) - Ferris F160Z Series 48" Zero-Turn Mower, 26hp Briggs & Stratton 48" Mower Deck - Housing, Covers, Spindles, & Blades S/N: 2017999045 & Above Parts Diagram

F160Z Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

48" Mower Deck - Housing, Covers, Spindles, & Blades S/N: 2017999045 & Above Parts Diagram

  • Title

0010

Ferris 5101986S

BLADES, SET OF THREE (3); 16.25 X.25 X 2.5, 1 X 3.5

Note: (Set of 3 Blades)

$

$

Currently unavailable

0020

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0030

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

Note: (Torque spindle mounting bolts to 17 ft-lbs (23 Nm)

$3.99

$

In Stock, only 1 left!

0

0040

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0050

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0060

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

0070

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0090

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

0100

Ferris 5042555

ROD, 5/16 X 13.75, TBE, CZ
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

0110

Ferris 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

0120

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

0130

Ferris 5413498

CHUTE, RUBBER DISCHARGE CHUTE (5104441)

$165.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0150

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolts to 120 ft-lbs (163 Nm)

$3.49

$

Usually ships in 2-12 days

0

0160

Ferris 5415939B

PLATE, DECK GUARD, RH - RED
(Superseded to 5415939BFS)

$32.99

$

Usually ships in 2-12 days

0

0170

Ferris 5415940B

PLATE, DECK GUARD, LH - RED
(Superseded to 5415940BFS)

$34.99

$

Usually ships in 2-12 days

0

0180

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

0190

Ferris 5600935

DECK SHELL W/DECALS,48,F160Z,5414848B

$1966.99

$

Usually ships in 2-12 days

0

0200

Ferris 5413403A

WELD, MOUNT, DISCHARGE CHUTE - BLK

$54.99

$

Usually ships in 2-12 days

0

0210

Ferris 5413401A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5413401AA)

$32.99

$

Usually ships in 2-12 days

0

0220

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

0230

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0290

Ferris 5105237

BUMPER, RUBBER, 1/4-20 X 7/8" STUD
(Superseded to 5105237YP)

$6.99

$

In Stock, only 1 left!

0

0300

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0
