F 150XT (5901217) - Ferris F150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton Motion Control Group Parts Diagram

F150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton

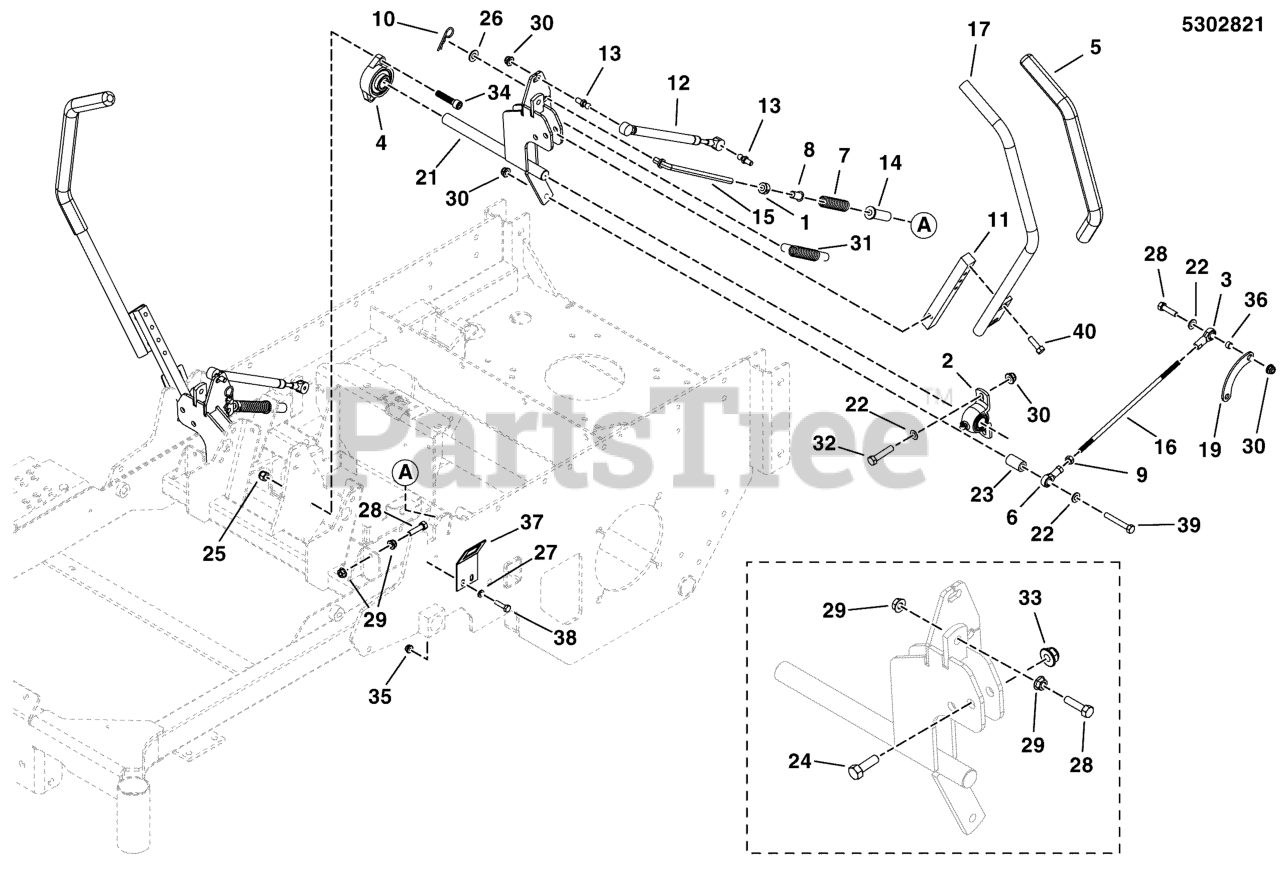

Motion Control Group Parts Diagram

  • Title

1

Ferris 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

2

Ferris 5101077

BEARING, 3/4" PILLOW BLOCK
(Superseded to 5101077YP)

$14.99

$

Usually ships in 2-12 days

0

3

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

4

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

5

Ferris 5022068

GRIP, FOAM, 3/4 ID, 16 LONG
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

6

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

7

Ferris 5022645

SPRING, REVERSE RETURN
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

8

Ferris 5023260

BUSHING, FLANGE 3/8ID X 7/8 LONG
(Superseded to 5023260SM)

$6.49

$

In Stock, only 2 left!

0

9

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

11

Ferris 5103106A

MOUNT, CONTROL ARM - BLK
(Superseded to 5103106AYP)

Note: (10.95" Total Length, 3 Adjustment Holes)

$54.99

$

Usually ships in 2-12 days

0

12

Ferris 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

13

Ferris 5100941

BALL STUD, 5/16 X .50,# PC-477-2)
(Superseded to 5100941SM)

$4.49

$

In Stock, Qty 12

0

14

Ferris 5104375

FLANGED BUSHING, 3/8IDX.63ODX.8125FL
(Superseded to 5104375YP)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5100947

ROD, NEUTRAL RETURN
(Superseded to 5100947SM)

$7.99

$

Usually ships in 2-12 days

0

16

Ferris 5101135

ROD, HYDRO LINKAGE
(Superseded to 5101135YP)

$5.49

$

Usually ships in 2-12 days

0

17

Ferris 5400636A

WELD, HANDLE MOTION CONTROL LH - BLK
(Superseded to 5400636AYP)

$50.99

$

Usually ships in 2-12 days

0

18

Ferris 5400637A

WELD, HANDLE MOTION CONTROL RH - BLK

Note: (Not Shown)

$

$

Currently unavailable

19

Ferris 5407529B

PLATE, HYDRO CONNECTOR - RED

$

$

Currently unavailable

20

Ferris 5407190A

WELD, CONTROL SHAFT, RH, SNP 2552 - BLK

Note: (Not Shown)

$

$

Currently unavailable

21

Ferris 5407191A

WELD, CONTROL SHAFT, LH, SNP 2552 - BLK

$

$

Currently unavailable

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5101245

SPACER, .38 X .75 X 1.25, CZ
(Superseded to 5101245YP)

$7.99

$

Usually ships in 2-12 days

0

24

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

25

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

26

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

28

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

29

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

30

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

31

Ferris 5020639

SPRING-EXT, .500 OD X 3.50 LG X .058 WR
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

32

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

33

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

34

Ferris 5025478

BOLT, 3/8-16 X 1-3/4, SHCS, YZ
(Superseded to 5025478YP)

$3.49

$

Usually ships in 2-12 days

0

35

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

36

Ferris 5102878

SPACER, .328 X .425 X .250, CZ
(Superseded to 5102878YP)

$9.99

$

Usually ships in 2-12 days

0

37

Ferris 5408311B

SWITCH PLATE, MOTION CONTROLS - RED

$

$

Currently unavailable

38

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

39

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4 GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

40

Ferris 1960541

SCREW-HEX WSHR HD TAPTT5/16-18X0.750BLK
(Superseded to 1960541SM)

$3.49

$

Usually ships in 2-12 days

0
