F 150XT (5901217) - Ferris F150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton Main Frame Group Parts Diagram

F150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton

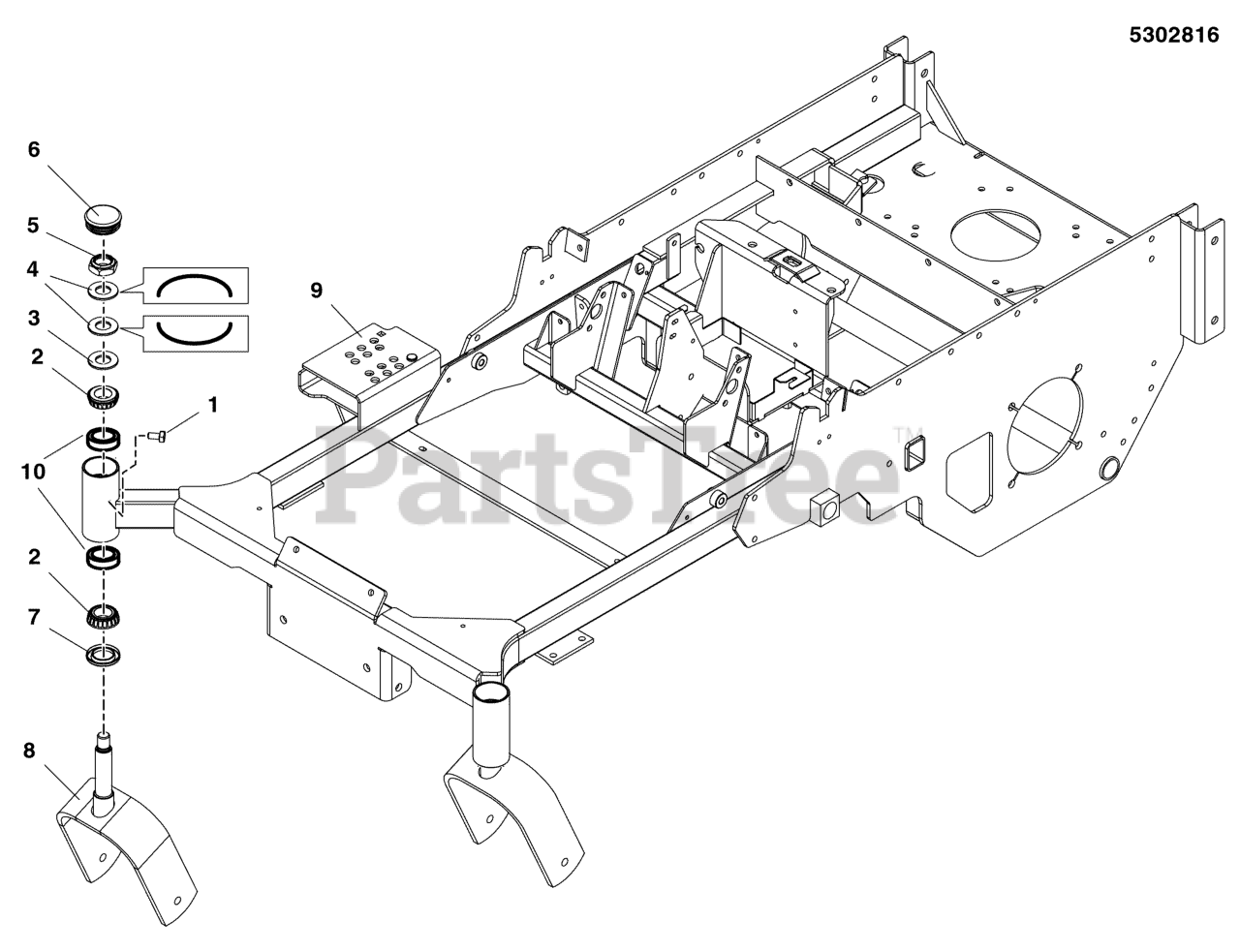

Main Frame Group Parts Diagram

  • Title

1

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 3 left!

0

2

Ferris 5020884

BEARING, TAPERED ROLLER, 1
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

3

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

4

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

5

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

6

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

7

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 3 left!

0

8

Ferris 5402208B

WELD, CASTER YOKE - RED
(Superseded to 5402208BFS)

$106.99

$

Usually ships in 2-12 days

0

9

Ferris 5407179B

WELD, MAIN FRAME, S150XT - RED

$

$

Currently unavailable

10

Ferris 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0
