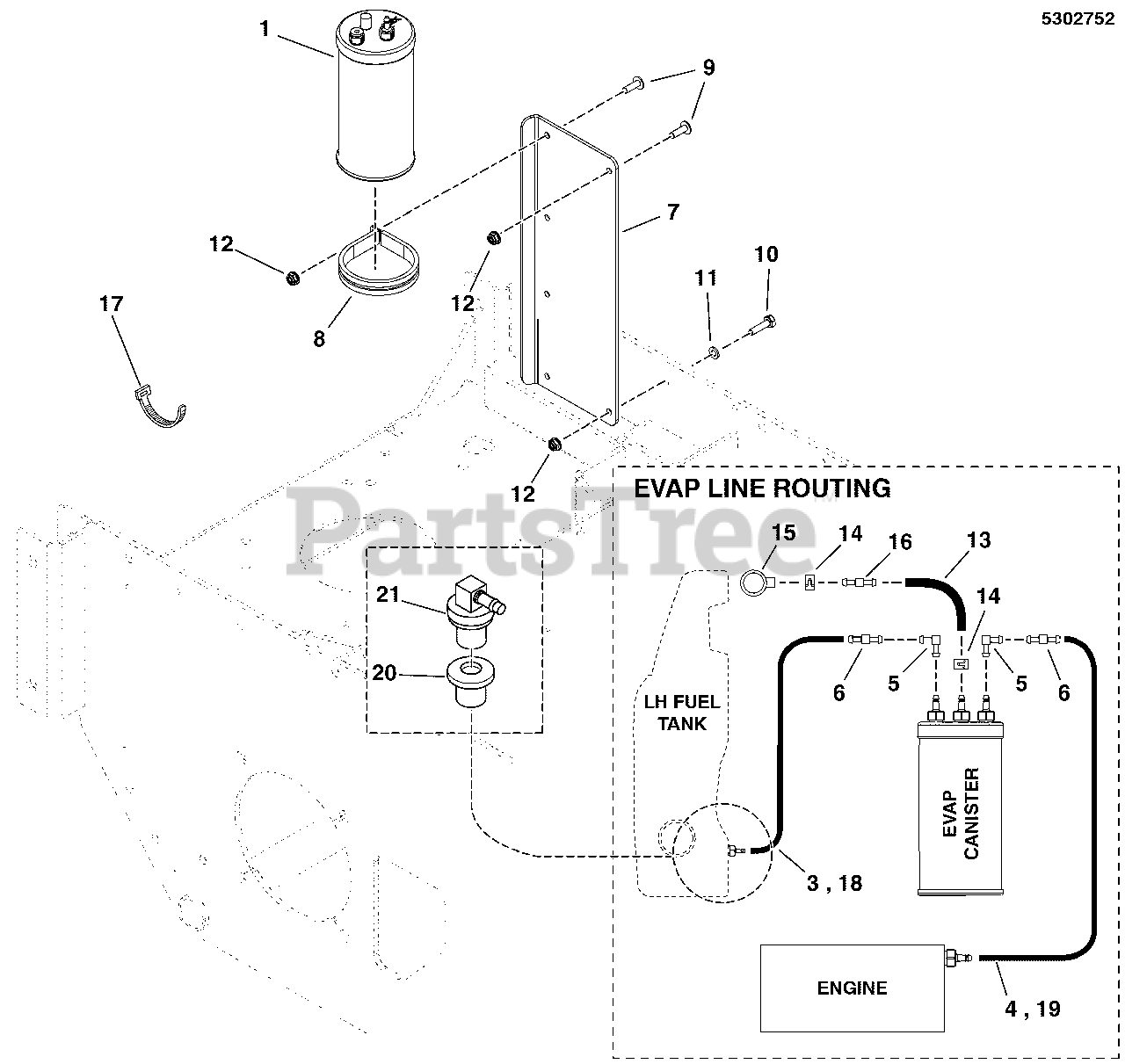

F 150XT (5901217) - Ferris F150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton Evap Canister Group Parts Diagram

F150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton

Evap Canister Group Parts Diagram

  • Title

1

Ferris 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$217.99

$

Usually ships in 2-12 days

0

2

DECAL, EPA CERT, ZTRS

Note: (Located on frame near Serial Tag)

$

$

Not available

3

Ferris 7700552X11

HOSE, VAPOR, 5MM ID, 11.00 LG
(Superseded to 7700552X11YP)

Note: (Kawasaki Models Only)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 7700552X31

HOSE, VAPOR, 5MM ID, 31.00 LG
(Superseded to 7700552X32YP)

Note: (Kawasaki Models Only)

$9.99

$

In Stock, only 1 left!

0

5

Ferris 5103082

FITTING, 90 DEG, 3/16X3/16, SANTOPRENE
(Superseded to 5103082YP)

$10.99

$

Usually ships in 2-12 days

0

6

Ferris 5103084

FITTING, STRAIGHT, 3/16X3/16, PLASTIC
(Superseded to 5103084YP)

$10.99

$

In Stock, only 2 left!

0

7

Ferris 5407903A

MOUNT, CAN, SIDE - BLK
(Superseded to 5407903AYP)

$45.99

$

Usually ships in 2-12 days

0

8

Ferris 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

9

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

11

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

13

Ferris 5103092

HOSE, FORMED, EVAP CANISTER
(Superseded to 5103092YP)

$33.99

$

In Stock, only 3 left!

0

14

Ferris 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 1752800

DUST FILTER, CANISTER (SV)
(Superseded to 1752800YP)

$15.99

$

In Stock, only 1 left!

0

16

Ferris 5103080

FITTING, STRAIGHT, 10MMX10MM, PLASTIC
(Superseded to 5103080YP)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5100772

TIE, SELF-LOCKING, 15"

$

$

Currently unavailable

18

Ferris 7700552X11

HOSE, VAPOR, 5MM ID, 11.00 LG
(Superseded to 7700552X11YP)

Note: (Briggs & Stratton Models Only)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 7700552X42

HOSE, VAPOR, 5MM ID, 42.00 LG

Note: (Briggs & Stratton Models Only)

$

$

Currently unavailable

20

Ferris 209043

GROMMET (SV)
(Superseded to 799624)

$8.99

$

In Stock, Qty 16

0

21

Ferris 770046

REMOTE VENT ASSEMBLY

$16.99

$

In Stock, only 1 left!

0
